Quick Details
-
Output Speed:
-
depends on rato,up to 2052rpm
-
Warranty:
-
1 year, available
-
Weight (KG):
-
9
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KRS
-
name:
-
Group 3 speed up pto gearbox KM7001 for agricultural machinery
-
material:
-
Aluminium,steel
-
serie:
-
Group 3 serie KM7001 gearbox
-
Certification:
-
CE
-
function:
-
speed increaser
-
P.T.O.:
-
Male/Male 1" 3/8 DIN 9611
-
Application:
-
feed mixer machine
-
Use:
-
for log splitter
Quick Details
-
Gearing Arrangement:
-
Spur
-
Output Torque:
-
other
-
Input Speed:
-
other
-
Output Speed:
-
depends on rato,up to 2052rpm
-
Warranty:
-
1 year, available
-
Weight (KG):
-
9
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KRS
-
name:
-
Group 3 speed up pto gearbox KM7001 for agricultural machinery
-
material:
-
Aluminium,steel
-
serie:
-
Group 3 serie KM7001 gearbox
-
Certification:
-
CE
-
function:
-
speed increaser
-
P.T.O.:
-
Male/Male 1" 3/8 DIN 9611
-
Application:
-
feed mixer machine
-
Use:
-
for log splitter

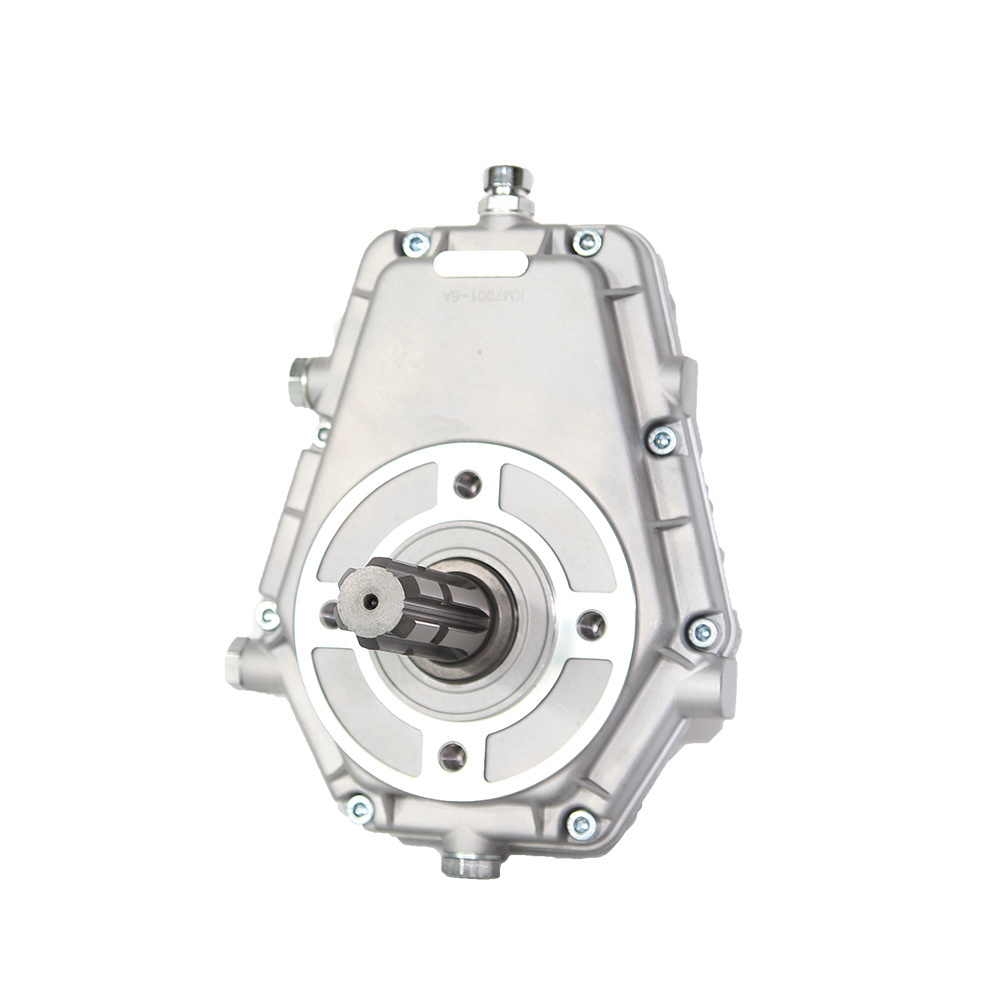

Group 3 speed up pto gearbox KM7001 for agricultural machinery
| PTO Gearbox: | KM7001 |
| Housing: | Made in shell-cast aluminum or in high mechanical resistance cast iron. |
| Gears: | Made in Steel UNI 18 PCR M03.Stub teeth guarantee very high resistance and run very quietly. |
| Shafts: | Made in steel UNI 16 CRN4.They are coupled with splined gears and are designed to stand the torque values stated in the catalogue. |
The Gearboxes are designed for connecting gear pumps to farm tractor power take offs (PTO). Output speed of power take offs is 540rpm which can be compared with the proper running speeds of hydraulic pumps. Different input running speeds can also be suitable,provided that the PTO gearbox output speed does not exceed 3000 rpm.
Torques
The torque figures mentioned in the technical charts of all the PTO Gearboxes refer to continuous duty cycles. Torques under intermittent working conditions can be exceeded by 20%.
Lubrication
SAE 90 gear oil must be put in the pto gearbox prior to use-please note we do not supply the gear oil and will not accept responsibility for customers not putting oil in. Change the oil after the first 60-80 hours and then every 12 months or 1500 hours which ever falls first.
Maintenance
Please check the oil level via the special oil window every 50 hours. Working temperatures should not exceed 120 degrees celcius under continuos duty cycle.
Service A: OEM and customized products are acceptable
Our company can do OEM and customized products according to the requirements of customer.
Service B: Develop new products is welcome
We have technicians and research department to make new products, if customers need us to develop new products according to sample or drawing, it is welcome.
Service C: Sourcing related producs
Our company have much experience in hydraulic and transmissions parts field, if you need other products, we can find for you.
