High quality and extra fine, low slag-ball content and low coefficient of heat conductivity.
Wide range of bulk density (60kg-300kg/m3 ), wide range of specifications with all data being within/better than national standards.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Guangxing
-
Product name:
-
Rock Wool Production Line
-
Automatic Grade:
-
Automatic
-
Voltage:
-
380V
-
Features:
-
Automatic
-
Panel Thickness:
-
30-150mm
-
Felt Size:
-
1000mm (adjustable)
-
Panel Density:
-
40-200 Kg/m3
-
Finished products:
-
rock wool mattress and board
-
Usage:
-
Building Material Production
Quick Details
-
Weight (KG):
-
300000
-
Core Components:
-
Motor
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Guangxing
-
Product name:
-
Rock Wool Production Line
-
Automatic Grade:
-
Automatic
-
Voltage:
-
380V
-
Features:
-
Automatic
-
Panel Thickness:
-
30-150mm
-
Felt Size:
-
1000mm (adjustable)
-
Panel Density:
-
40-200 Kg/m3
-
Finished products:
-
rock wool mattress and board
-
Usage:
-
Building Material Production
37 Years
Machine Production Experience!
Sold over
200+
production lines!
Welcome to visit our running line!
Rock Wool blanket Production Line Mineral fiber board making machine Basalt Wool sheet plant
Specification
|
Product name
|
Rock Wool Production Line
|
|
Automatic Grade
|
Automatic
|
|
Voltage
|
380V
|
|
Features
|
Automatic
|
|
Panel Thickness
|
30-150mm
|
|
Felt Size
|
1000mm (adjustable)
|
|
Panel Density
|
40-200 Kg/m3
|
|
Applicable Industries
|
Manufacturing Plant, Retail, Construction works
|
|
Finished products
|
rock wool mattress and board
|
|
Usage
|
Building Material Production
|
Rock wool products are mainly made of high-quality basalt, dolomite, and other raw materials. After high-temperature melting, they are centrifuged into fibers using a four axis centrifuge at high speed. At the same time, a certain amount of binder, dustproof oil, and water repellent are sprayed into them. After being collected by a fiber collector, they are cured and cut using a pendulum method and three-dimensional fiber laying method, forming rock wool products of different specifications and purposes.Due to the fact that rock wool products are artificial inorganic fibers processed through high-temperature melting, they have the characteristics of light weight, low thermal conductivity, heat insulation, and flame retardancy, and are widely used in various industries.
roofs,retaining structures and geothermal systems as well as thermal insulation and fireproofing of industrial kilns, ovens, large
sized tanks and vessels, etc

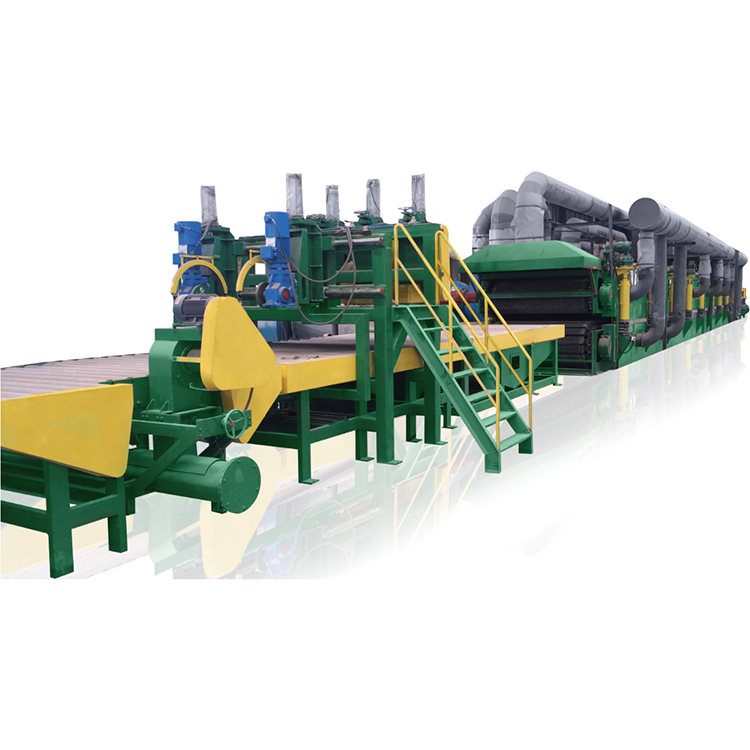

rock wool production line
The slitting is completed by the combination of the drive shaft and the toothed saw blade under the dust collecting hood.
|
Rock wool product
|
Density(Kg/m3)
|
Size
|
|
|
||
|
|
|
Length(mm)
|
Width(mm)
|
Thickness(mm)
|
||
|
Panel
|
40-200
|
1000(Adjustable)
|
500-2000
|
30-150
|
||
|
Felt
|
40-100
|
1000(Adjustable)
|
1200
|
30-100
|
||
|
Stitching felt
|
40-90
|
1000(Adjustable)
|
1000-1200
|
40-100
|
||
|
Pipe
|
Density(Kg/m3)
|
Length(mm)
|
Diameter(mm)
|
Thickness(mm)
|
||
|
|
80-100
|
1000
|
Φ20-Φ630
|
30-100
|
||
System of raw material storage, batching and charging
Spinning Machine
Collecting Chamber and Pendulum Unit
Forming and Crimping unit
Curing Oven
Pressure machine
Processing and Finishing Unit
Packing and palletizing unit
|
1
|
Raw material system
|
1)Feeding system
2) Automatic proportioning machine 3)Control cabinet (PLC is adopted) 4)Feeding machine |
|
2
|
Melting system
|
1) Furnace platform
2)Cupola furnace 3) Material level control system 4)Dust catcher 5)Waste gas burning furnace 6)Waste gas intake pipe 7)Waste gas intake fan 8)Heat exchanger 9)Control cabinet 10) Melting furnace cooling system 11)Wind supply fan for the melting furnace 12)Wind supply pipeline for melting furnace |
|
3
|
Wool making system
|
1) High speed centrifuge
2)Fan 3)Fiber blowing bellows 4)Lubricating system of centrifuge 5)Water pump and water cooling system 6)Electrical control cabinet(PLC) 7) Residue-remover |
|
4
|
Rock wool resin-spraying system
|
1)Laser tracking system of lava
2)Metering pump 3)Nozzle for resin diffusion 4)Control cabinet |
|
5
|
Wool collecting and allocation system &
Board making system |
1)Wool collector and Pendulum wool allocation machine
2) Control cabinet 3) Air-intake fan for wool collecting 4)Dust filtering system of wool collecting part 5) Wool allocation conveyer 6)Compressing pleating machine 7) Curing oven 8)Main power assembly 9) Control cabinet |
|
6
|
Curing oven explosion-proof system
|
1) Natural gas inspect system 2)Explosion-proof fan
3)Explosion-proof pipes 4)Control cabinet |
|
7
|
Cutting system
|
1)Cooling conveyor2) Cooling fan
3) Thickness saw 4)Cooling cutter 5)Metering device of cutting 6)Control cabinet 7)Cutting machine driving system |
|
8
|
Dust-removing system of cutting part
|
1)Bag-type dust filter
2)Dust-removing pipes 3)Dust-removing fan |
|
9
|
Curing oven hot blast system
|
1) Heat-resisting fan
2)Hot blast furnace 3)Burner 4)Hot wind pipes |
|
10
|
Scrap recycling machine
|
1)Crusher
2)Scrap-recycling fan 3) Scrap-recycling pipeline |
Decoiler-------Film covering (flat plate cutting)-------- Roll forming-------Preheating material-------PU Foaming------Laminating
in double belt conveyor (heat preservation)-------Band cutting(dust absorption)------conveyor rollers------Stacking------Packing
Factory
Hebei Guangxing Machinery Technology Co., Ltd. was founded in 1987. It is a professional manufacturer of exterior wall insulation equipment and composite panel equipment. It is the largest and most competitive enterprise in the same industry in China.
The rock wool production line, polyurethane rock wool color steel composite panel production line and EPS phenolic foam production line developed by our company have all reached the international advanced level and have passed ISO9001 quality management system certification. The products sell well in more than 30 provinces, cities and autonomous regions, and are exported to Europe, Central Asia and Southeast Asia. With first-class technology and first-class products, the company provides customers with high-quality services from product design, research and development, production, installation training to after-sales. It is regarded by the majority of users as an excellent enterprise that "keeps its promise and values service", and has been awarded the famous brand product of Hebei Province. welcome experts, friends, new and old customers from all walks of life to patronize and communicate with us to create brilliance and win-win future together.
Advanced machinery and equipment
Our team
package
FAQ
Q: Where is the factory located?
A: We are located in Xinji, Hebei Province, near Beijing airport. You could fly to Beijing Airport, we could pick you there.
Q: Do you accept on-site inspection to check your machine and your factory?
A: Before shipment, every equipment will be trail tested in our factory, we invite all the client to do on-site inspection during trail testing.
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price
will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:
What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3
month,It depend on the order quantity.
month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:
How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:
How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:
Do you offer a guarantee?
A:Yes, we guarantee our product for one year.
Provide after-sales service support with and agricultural technical support.
Provide after-sales service support with and agricultural technical support.
Q:
What is your MOQ?
A:1Sets
