Quick Details
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Max pultrusion Size:
-
600*350mm
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Weight (KG):
-
2000
-
Brand Name:
-
Huaming
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Max pultrusion Size:
-
600*350mm
-
Certification:
-
ISO9001

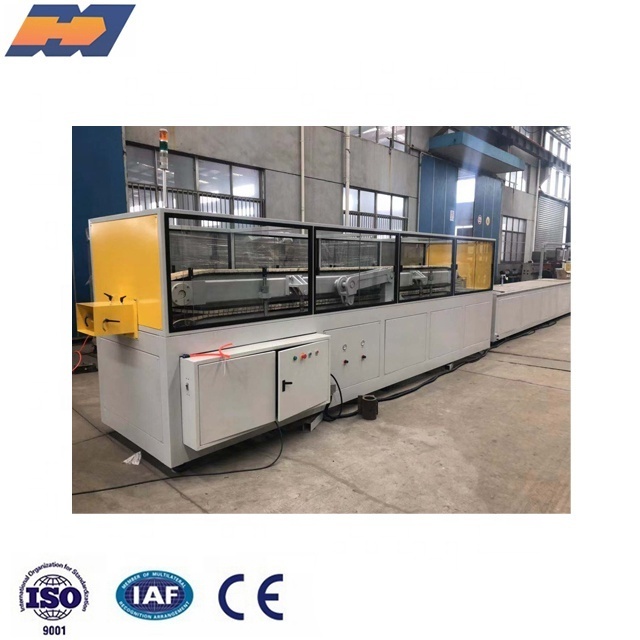

Fiberglass pultrusion prodution line
Application:
Our HB-LJ GFR extruding production line is newly developed. It can be used to produce rod, pipe and profile of particular section shape. The advantages of this line are as follows: compact structure, proper arrangement, reliable production, easy operation, and simple maintenance, etc. It is the necessary machine for complex material extruding.
Technical Standards:
| Model | HB-LJ2040 |
| Max.Sectional Area mm | 200×100 |
| Line Speed m/min | 1.2 |
| Max.Tractive Force N | 40000 |
| Max.Gripping Force N | 60000 |
| Effecctive Extruding Length mm | 4000 |
| Motor Power kw | 20.2 |
| Appearance Size m | 30×1.4×2 |
