Quick Details
-
Screen Size:
-
2.0" TFT Display
-
Input:
-
4 X HDMI
-
Output:
-
1 x HDMI, Audio, USB 3.0
-
Backlight:
-
LED
-
Certification:
-
FCC/ce
Quick Details
-
Brand Name:
-
FEELWORLD
-
Model Number:
-
LIVEPRO L1 V1
-
Place of Origin:
-
Fujian, China
-
Screen Size:
-
2.0" TFT Display
-
Input:
-
4 X HDMI
-
Output:
-
1 x HDMI, Audio, USB 3.0
-
Backlight:
-
LED
-
Certification:
-
FCC/ce
| Model | LIVEPRO L1 V1 |
| Screen Size | 2.0" TFT Display |
| Backlight | LED |
| 4 X HDMI | HDMI |
| 1 X HDMI | HDMI |
| 1×USB TypeA | USB 3.0 |
| Audio In | 1×3.5mm Stereo Jack |
| Audio Out | 1×3.5mm Stereo Jack |
| HDMI |
| SMPTE 720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60 |
| VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X800@60 | 1280X1024@60 | 1360X768@60 | 1366X768@60 | 1440X900@60 | 1600X1200@60 | 1680X1050@60 | 1920X1080@60 | 1920X1200@60 |
| HDMI |
| SMPTE 720p@50/60|1080p@24/25/30/50/60 |
| VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X1024@60 | 1360X768@60 |
| USB Streaming |
| 1280X720@50/60 | 1280X1024@60 | 1360X768@60 | 1920X1080@24/25/30/50/60 |
| Note: Please refer connected computer for applicable resolution support |
| Input Voltage | DC 12V / 1.5A |
| Max Power | 18W |
| Working Temperature | -30℃~50℃ |
| Humidity | 10%~85% |
| Unit Size | 190(L) x 110(W) x 43(H)mm |
| Unit Weight | 500g |
| Color Box Size | 260(L)*130(W)*82(H)mm |
| Outer Carton Qty | 15 |
| Outer Carton Size | 470*275*480mm |
| Gross Weight | 14.5kgs |
FEELWORLD LIVEPRO L1 Update to New Version
In order to improve user experience, we update LIVEPRO L1 switcher to the new version LIVEPRO L1 V1, it changes the appearance, which is lighter and easier to dissipate heat.
Main Features
* 2”TFT display on board to live preview 4 inputs * Auto cut and manual switch (T-Bar) * USB capture video complying with UVC for live streaming * Audio offers embedded or external source to select * Support switch between 6-picture PVW and PGM to HDMI out * Support PIP * 14 transition effects on T-Bar * Control by PC or Smart phone (via APP)
Input Solution HDMI SMPTE 720p@50/60 |1080i@50 | 1080p@23/24/30/50/60) VESA 1024×768@60 | 1280×720@60|1280×768@60 |1280×800@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60| 1440×900@60| 1600×1200@60 | 1680×1050@60 |1920x1080@50i| 1920×1080@60 |1920x1080@60i|1920×1200@60
Output Solution HDMI SMPTE 720p@60 |1080p@60 VESA 1024×768@60 | 1280×720@60|1280×768@60 |1280×800@60 | 1280×1024@60 |1360×768@60 | 1366×768@60| 1440×900@60| 1680×1050@60 | 1920×1080@60

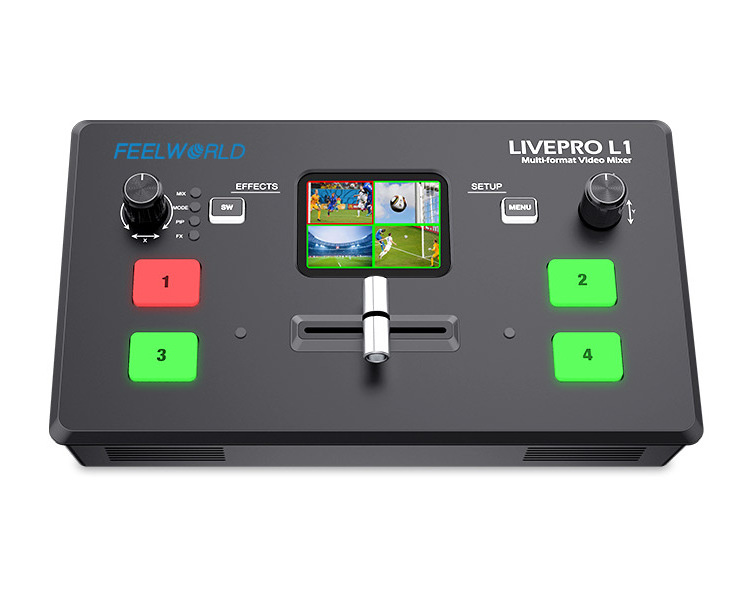

Exquisite and Flexible Control Panel
The LIVEPRO L1 V1 has an exquisite and compact control panel. The 4 buttons are for selecting input signals, green flashing means the signal has been selected, then switch the T-Bar, the selected signal will be displayed on the screen seamlessly, the green button changed to red after switched. The Menu button is for menu setting, the SW button is for selecting different functions such as mixing, scaling, transition time setting and the other functions. The left knob is for voice volume controlling, the right knob is for menu setting as well. From the TFT screen, we can preview 4 HDMI signals and easily do menu setting.
Compact and Light Weight Design
The LIVEPRO L1 V1 is a mini switcher, that is small enough to fit into equipment cases and camera bags. Designed to integrate with typical video production workflows , the LIVEPRO L1 has a screw tap for standard video mounts and conveniently attached onto a tripod to stay out of the way. It is light weight design makes it ideal for mobile video applications too.
Multi- Application, One Solution
For normal people, they need smaller and simpler product to deal with the live applications. The LIVEPRO L1 V1 can be done this , which is with simple and compact design, rich special effects switching function, the screw hole can be fixed the switcher on the tripod. with these, live streaming and multi signal control will be simpler and easier done by single person.
Faster Video Production, Plus Live Streaming
Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via Youtube at the same time. The USB 3.0 output of LIVEPRO L1 V1 connects to any computer and looks like a built in webcam, so all streaming software for social media platforms work! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites or gaming consoles. All switching is in real time so you can live stream to any social media platform such as Youtube, Facebook, Tik Tok, Douyu TV and many more!
Flexible T-Bar Switching
The T-Bar of LIVEPRO L1 V1 support 14 transition effects and signal switching. Under T-Bar mode, pushing green button, it will flash and push T-Bar to the end (left or right), the source will be switched with selected transition effect. After switching , green turns to red. It is very suitable for video special effects switching of small outdoor scenes to meet the needs of video switching such as radio and television, outdoor sports events, school courseware production, etc. Note: When T-Bar is not in the end position, no source can be selected.
AUDIO IN and AUDIO OUT
LIVEPRO L1 V1 with AUDIO IN and OUT. The output interface can be connected to speakers, headsets, etc.; The AUDIO IN interface is a linear input interface, which is connected to digital signal. The microphone collects analog signals, so when the microphone is connected to the LIVEPRO L1 audio input interface directly, there is no way to receive audio.
Solutions for live broadcasting audio problems
If there is microphone and audio interface, please connect microphone to the audio interface and connect the output interface of the audio interface to the AUDIO IN interface of LIVEPRO L1 V1.
If there is microphone but without audio interface, please connect the microphone to the MIC interface of computer.
If there is wireless microphone and it with earphone interface, please connect this interface to AUDIO IN of LIVEPRO L1 V1.
If there is device of MIC to Line output, please connect to AUDIO IN of LIVEPRO L1.
USB interface and HDMI output can set PVW and PGM independently
The USB interface of LIVEPRO L1 V1 also can be used as signal output except HDMI output. They can connect computer or monitor to set PGM and PVW independently. You can choose to set any of them as preview or PGM as you like.
6 Picture PVW, PIP
When the switcher is connected with an external expansion screen, it can preview real-time monitoring on 6 pictures, including PGM, PST and 4-channel HDMI input signals, and the audio column is displayed. Plus, you can set 9 layouts for PIP (Picture in Picture) mode. This is very useful for large-scale multi stand field production.
USB 3.0 Live Streaming
To ensure maximum compatibility, LIVEPRO L1 V1 features a USB connection that operates as a simple webcam source. That means you can plug in and instantly get working with any video software. The software is tricked into thinking the LIVEPRO L1 V1 is a common webcam, but it is really a live production switcher! That guarantees full compatibility with any video software and in full resolution 1080HD quality. Choose any software you like, such as OBS software for live streaming, or conference software (Tencent conference and Yealink ) for business presentations. LIVEPRO L1 V1 works with software and platforms such as OBS, acquisition software(AMCap, ECap, Potplayer), conference software (Tencent conference and Yealink) , Youtube, Facebook, Zoom, Tik Tok and more! Note: OBS Streaming is available to download on https:/obsproject.com/download
Multiple Application Scenarios Suitable
One of the benefits of LIVEPRO L1 V1 is the professional production values that are possible using the range of built in video effects. Push button SW to open up the transition effect menu, use knob to select the desired transition effect icon and push the knob to confirm. The "cut" in menu ensures an instant cut when switching source. You can also select the type of effect you want including mix, which does a smooth transition between sources, and dip which fades via a color during the transition. The in MODE menu allowing 0 .5S~ 5.0S settings. Plus, you can select PIP mode.
Multiple Application Scenarios Suitable
LIVEPRO L1 V1 is widely used in sports events, e-sports competition, business presentation, wedding , character interview, education and training, etc.
PC Controlling, Remote Operation
After connecting the LAN port to the computer, not extra software need to be installed, the software XPOSE holds on the computer, the operation is same as the switcher. So as to realize remote controlling, imagine using the switcher from a control room and building a professional broadcasting studio where the control room can be separated away from the performance or interviews. In addition, it allows you to add as many panels as you like all at the same time. PS: Please download the XPOSE software from "www.feelworld.cn", please don not put it in the system disk (C disk) after download.
FEELWORLD LIVEPRO L1 V1 Video Switcher Firmware Update V0.40
Firmware Update Steps: http://www.feelworld.cn/ShowInfo.aspx?id=673&py=FEELWORLD-LIVEPRO-L1-Video-Switcher-Firmware-Update-V0-40#
