Quick Details
-
Brand Name:
-
ZTE
-
Use:
-
ftth
-
Warranty Time:
-
1 year
-
Solution:
-
FTTH FTTX
-
Control Board:
-
10G SCXN
-
DC power card:
-
PRWH
-
16port gpn card:
-
GTGH
-
8port gpn card:
-
GTGO
-
Xpon:
-
B+/C+/C++
-
SFP Module:
-
B+/C+/C++
-
Shelf Dimensions:
-
65x60x53 CM
-
Chasis:
-
10U
Quick Details
-
Type:
-
OLT
-
Model Number:
-
ZTE C620 OLT
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZTE
-
Use:
-
ftth
-
Warranty Time:
-
1 year
-
Solution:
-
FTTH FTTX
-
Control Board:
-
10G SCXN
-
DC power card:
-
PRWH
-
16port gpn card:
-
GTGH
-
8port gpn card:
-
GTGO
-
Xpon:
-
B+/C+/C++
-
SFP Module:
-
B+/C+/C++
-
Shelf Dimensions:
-
65x60x53 CM
-
Chasis:
-
10U
Product Description

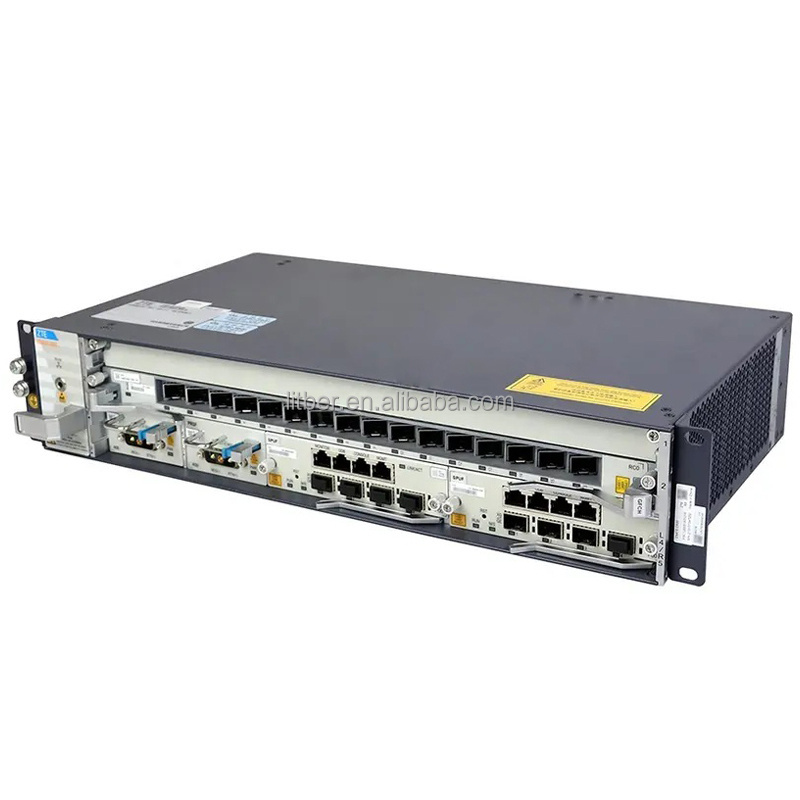

ZTE ZXA10 C620 OLT
ZTE ZXA10 C620 OLT is 2U optical access equipment with 2 types of chassis including AC input and DC input, and 2 service boards, which is suit for flexible deployment.
ZTE ZXA10 C620 OLT Product Overview
ZTE ZXA10 C620 OLT is a 2U compact PON OLT device with two service slots per device. The product is designed for flexible deployment and rapid deployment of FTTx access. It supports GPON, XG(S)-PON, Combo PON, P2P and other access modes. Fully distributed switching, control and forwarding separation, network services are more secure and reliable. In addition, The optical module has built-in WDM1r, and the existing GPON service has zero impact. GPON ONU or 10G GPON ONU can be deployed on demand. Therefore, C620 meets ultra-high-speed and ultra-low latency access requirements, and meeting the application deployment of limited space in the computer room, remote coverage, and low-density area access.
ZTE ZXA10 C620 OLT Product Overview
ZTE ZXA10 C620 OLT is a 2U compact PON OLT device with two service slots per device. The product is designed for flexible deployment and rapid deployment of FTTx access. It supports GPON, XG(S)-PON, Combo PON, P2P and other access modes. Fully distributed switching, control and forwarding separation, network services are more secure and reliable. In addition, The optical module has built-in WDM1r, and the existing GPON service has zero impact. GPON ONU or 10G GPON ONU can be deployed on demand. Therefore, C620 meets ultra-high-speed and ultra-low latency access requirements, and meeting the application deployment of limited space in the computer room, remote coverage, and low-density area access.
For any detailed information, please send us an inquiry, thank you.
|
ZTE ZXA10 C620 OLT Product Specifications
|
|
|
|
Item
|
Descriptions
|
|
|
Brand
|
ZTE
|
|
|
Model
|
C620
|
|
|
Uplink interface
|
GE, 10GE
|
|
|
Downlink interface
|
GPON, XG(S)-PON, Combo PON, Any-pon, P2P
|
|
|
Dimensions
|
88.1 mm*482.6 mm*283.5 mm (H*W*D)
|
|
|
Weight
|
Empty shelf: 3.93 kg；Full configuration: <13 kg
|
|
|
Operating voltage
|
-48V or -60V DC, 220V/110V AC
|
|
|
Operating current
|
≤ 15 A
|
|
|
Operating temperature
|
-40°C ~ +65°C, min. start-up temperature is -25°C
|
|
|
Operating relative humidity
|
5%-95%
|
|
|
Altitude
|
70 kPa-106 kPa
|
|
ZTE ZXA10 C620 OLT Product Features
* * High-end router architecture, fully supports L2/L3 functions.
* Fully-distributed, separated control & forwarding, load balancing.
* NP + CLOS architecture, easy for upgrade.
* SDN/NFV ready, oriented to network re-architecture.
* Meet low-density, remote coverage and limited room space scenarios.
* Suits the deployment in freezing, scorching, damp, and dry environment.
* The WDM1r is embedded in the optical module without affecting existing GPON services.
* Supports on-demand deployment of GPON and 10G PON ONUs according to service development.
* 5-in-1 Card, flexible technologies switching and quick upgrade.
* On-demand migration, save investment
* * High-end router architecture, fully supports L2/L3 functions.
* Fully-distributed, separated control & forwarding, load balancing.
* NP + CLOS architecture, easy for upgrade.
* SDN/NFV ready, oriented to network re-architecture.
* Meet low-density, remote coverage and limited room space scenarios.
* Suits the deployment in freezing, scorching, damp, and dry environment.
* The WDM1r is embedded in the optical module without affecting existing GPON services.
* Supports on-demand deployment of GPON and 10G PON ONUs according to service development.
* 5-in-1 Card, flexible technologies switching and quick upgrade.
* On-demand migration, save investment
For any detailed information, please send us an inquiry, thank you.
