Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NOYO JI
-
Voltage:
-
220-440V
-
Weight (KG):
-
140 kg
-
Keyword:
-
Powder feeder
-
Feeding range:
-
0.5-10L/h~100-1500L/h
-
Precision:
-
0.25%-0.5%
-
Environmental effect:
-
environmental protection
-
Operation:
-
Fully automatic
-
Usage:
-
Pellet, free flowing powder, etc.
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE
Quick Details
-
Power:
-
750W
-
Warranty:
-
1 Year
-
Width or Diameter:
-
520mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NOYO JI
-
Voltage:
-
220-440V
-
Weight (KG):
-
140 kg
-
Keyword:
-
Powder feeder
-
Feeding range:
-
0.5-10L/h~100-1500L/h
-
Precision:
-
0.25%-0.5%
-
Environmental effect:
-
environmental protection
-
Operation:
-
Fully automatic
-
Usage:
-
Pellet, free flowing powder, etc.
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE
Products Description
|
specification
|
Transmission capacity
|
Hopper affection capacity
|
Vortex pump power
|
Vortex pump voltage
|
Diameter of air suction tube
|
Diameter of material suction tube
|
Charging barrel dimension
|
Weight
|
|
TYPE
|
kg/h
|
L
|
kw
|
V
|
mm
|
mm
|
mm
|
kg
|
|
PNT-500
|
400
|
40
|
2.2
|
380
|
∮60
|
∮50
|
∮520X1400
|
150
|
|
PNT-800
|
600
|
40
|
3
|
380
|
∮60
|
∮50
|
∮520X1550
|
165
|
|
PNT-1200
|
800
|
40
|
5.5
|
380
|
∮60
|
∮50
|
∮520X1700
|
190
|
Product instructions:

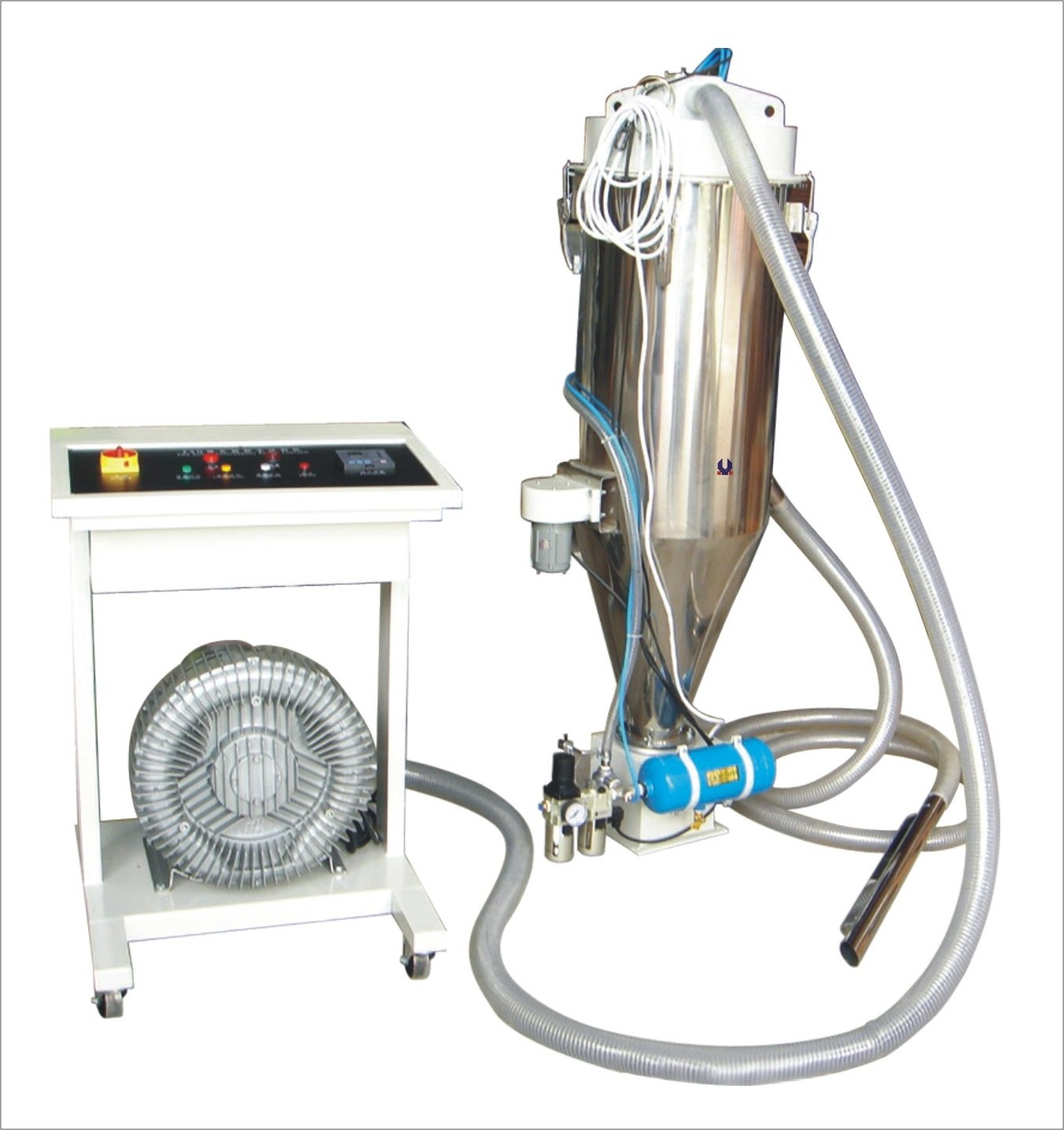

This series of powder feeders adopt the principle of vacuum suction and deliver, which can make various powder and granular raw
materials with average particle diameter larger than one micron send from a variety of materials storage containers to the
specified device, and can use with section units, mixing system, chemical processing equipment to completely replace hand feeding
and is the ideal environmental equipment for powder delivery.
Characteristic
The series is designed and manufactured on the basis of absorbing the advantage of imported model machines;
Adopt the imported cut-off dust filtration device of high strength, good cut-off dust effects and pollution-free;
Vibration discharge system can prevent bridging and make the discharge smoother
Use pulse compressed air back flushing cleaning device and airport explosive blast impact filtration surface to make cleaning
effects better;
Air suction port and material suction port automatically close without polluting the environment in back flushing;
This series adopts primary material suction and primary back flushing cleaning to make the feeding become more efficient and
prolong the service life of filter device.
This series of powder feeders adopt the principle of vacuum suction and deliver, which can make various powder and granular raw
materials with average particle diameter larger than one micron send from a variety of materials storage containers to the
specified device, and can use with section units, mixing system, chemical processing equipment to completely replace hand feeding
and is the ideal environmental equipment for powder delivery.
Characteristic
The series is designed and manufactured on the basis of absorbing the advantage of imported model machines;
Adopt the imported cut-off dust filtration device of high strength, good cut-off dust effects and pollution-free;
Vibration discharge system can prevent bridging and make the discharge smoother
Use pulse compressed air back flushing cleaning device and airport explosive blast impact filtration surface to make cleaning
effects better;
Air suction port and material suction port automatically close without polluting the environment in back flushing;
This series adopts primary material suction and primary back flushing cleaning to make the feeding become more efficient and
prolong the service life of filter device.
