Quick Details
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
300
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LUCKY / OEM
-
Model Number:
-
JXSP series
-
Collector frame angle:
-
0,18,22,38,45 optional, pitched roof, flat roof optional.
-
Accessories:
-
Working station, electrical heater, magnesium bar, P/T valve, etc
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Car
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
300
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LUCKY / OEM
-
Model Number:
-
JXSP series
-
Collector frame angle:
-
0,18,22,38,45 optional, pitched roof, flat roof optional.
-
Accessories:
-
Working station, electrical heater, magnesium bar, P/T valve, etc
solar instant water Heater

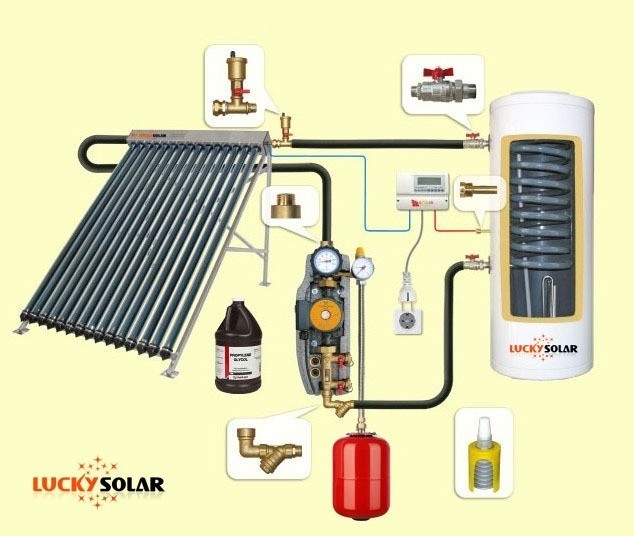

The JXSP-SERIAL solar system is combined with solar collector, pressurized storage tank, intelligent controller, solar working station, expansion vessel, pipeline, etc.
1. Collector: JXSPC-SERIAL, JXSC-SERIAL, or U pipe collectors
2. Tank Capacity: pressurized tank, 100L-1500L
3. SP-106, SP116, SP328, SR962, SR962 …solar working station
4. SR868, SR868C8Q…temperature differential controller
Feature:
1) Collector separates with the storage tank. The tank can be put anywhere of the house
2) And the collector can be put on both tilted roof and flat roof
3) Module design, arbitrary combination, harmony with the building perfectly
4) Intelligent control and automatic operation
5) Anti-freeze: no water inside the tubes when it works
|
Water Tank Performance and Specification |
|
|
Material of out tank |
High quality Painted steel/ Stainless steel. |
|
Material of inner tank |
Food grade SUS304-2B stainless steel. |
|
Tank insulating layer |
with 45kg/m³ high-density polyurethane foamed |
|
Out/inlet connection size ( inch ) |
3/4inch, NPT |
|
Copper coil connector size ( inch ) |
1/2 inch NPT ( 3/4inch,1inch size optional, price different) |
|
Rated pressure ( Mpa ) |
0.7 |
|
Working pressure ( Mpa ) |
0.6 |
|
Temp. Control (C) |
30-95C |
|
Copper coils size ( mm ) |
12mm /16mm/19mm,optional |
|
Heat exchanger material |
Copper, stainless steel, optional |
|
Free components: |
Electric heater, Magnesium rod, T/P valve, Pressure reducing valve |
|
Water Tank Performance and Specification |
||
|
Tank size(mm) |
Tank size(mm) |
Packing dimension(mm) |
|
JXDT-100 L |
470 |
560*560*1200 |
|
JXDT-150 L |
470 |
560*560*1550 |
|
JXDT -200 L |
550 |
660*660*1500 |
|
JXDT -250 L |
580 |
660*660*1600 |
|
JXDT -300 L |
580 |
660*660*1800 |
|
JXDT -400 L |
700 |
780*780*1700 |
|
JXDT -500 L |
700 |
780*780*2050 |
|
JXDT -1000 L |
1000 |
2050*** |
|
Heat Pipe Solar Collector Specification |
|||||||||
|
JXSPC-SERIAL |
Size |
Tube Quantity |
Heat Pipe Condenser |
Aperture Area |
Gross Area |
Gross Length |
Gross Width |
Gross Height |
20 GP/40HQ |
|
(mm) |
(pcs.) |
(mm) |
(M2) |
(M2) |
(mm) |
(mm) |
(mm) |
(set) |
|
|
JXSPC-10 |
58x1800 |
10 |
14/20/22/24 |
0.941 |
1.600 |
2290 |
673 |
130 |
193/460 |
|
JXSPC-12 |
58x1800 |
12 |
14/20/22/24 |
1.128 |
1.852 |
2290 |
808 |
130 |
161/383 |
|
JXSPC-15 |
58x1800 |
15 |
14/20/22/24 |
1.410 |
2.315 |
2290 |
1010 |
130 |
127/309 |
|
JXSPC-18 |
58x1800 |
18 |
14/20/22/24 |
1.692 |
2.778 |
2290 |
1212 |
130 |
111/263 |
|
JXSPC-20 |
58x1800 |
20 |
14/20/22/24 |
1.880 |
3.087 |
2290 |
1347 |
130 |
96/234 |
|
JXSPC-25 |
58x1800 |
25 |
14/20/22/24 |
2.350 |
3.858 |
2290 |
1683 |
130 |
80/194 |
|
JXSPC-30 |
58x1800 |
30 |
14/20/22/24 |
2.820 |
4.630 |
2290 |
2020 |
130 |
70/170 |
