Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
8165*3016*3485mm
-
Machine Weight:
-
17500 kg
-
Bucket capacity:
-
2.5~4.5M3
-
Wheel base:
-
3300mm
-
Max.breakout force:
-
175kN
-
Min. turning radius:
-
5925mm
-
Tread:
-
2250
Quick Details
-
Engine Brand:
-
Famous brand
-
Power:
-
162kw
-
Brand Name:
-
XCMG
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
8165*3016*3485mm
-
Machine Weight:
-
17500 kg
-
Bucket capacity:
-
2.5~4.5M3
-
Wheel base:
-
3300mm
-
Max.breakout force:
-
175kN
-
Min. turning radius:
-
5925mm
-
Tread:
-
2250
Products Description

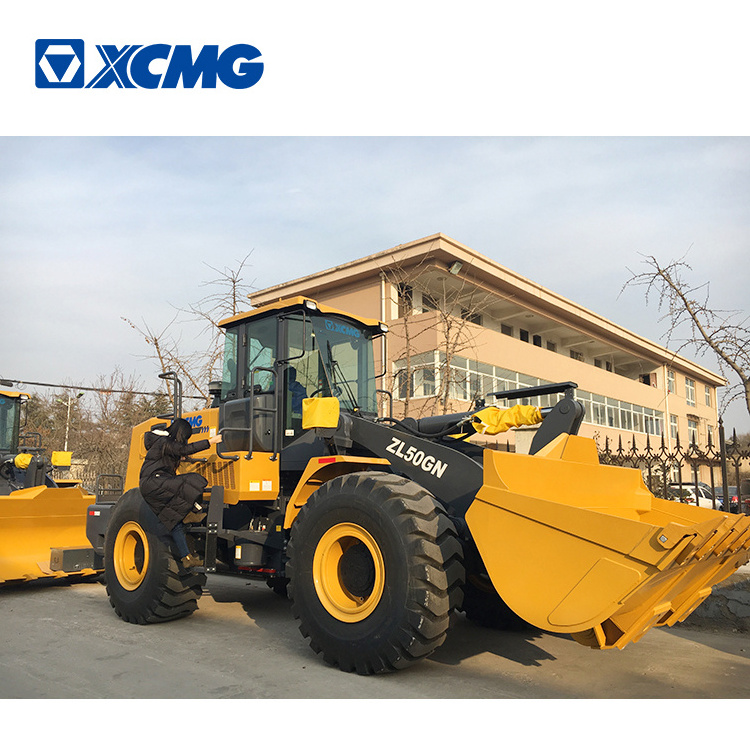

XCMG factory 5 ton loader machine ZL50GN Chinese hot wheel loader.
XCMG wheel loader ZL50GN is the most popular model of China 5t wheel loader,is the latest cross-generation product developed ,the first-choice equipment for the production organization in the fields of ports, engineering constructions, and logistics.
Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity. The large rock bucket with capacity of 2.5 m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of tooth holder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
The thickness of the front frame lug and baseboard is 70 mm, and the thickness of the up and down articulated board is 30 mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity. 160 kN breakout force handle all kinds of materials with ease,≥3.5 m high dumping capacity handle the severe conditions with ease.
Specification
Description
|
Unit
|
Parameter value
|
Rated operating load
|
kg
|
5000
|
Bucket capacity
|
m³
|
2.5~4.5
|
Machine weight
|
kg
|
17500±300
|
Dump clearance at maximum lift
|
mm
|
3100~3780
|
Reach at maximum lift
|
mm
|
1100~1220
|
Wheel base
|
mm
|
3300
|
Tread
|
mm
|
2250
|
Max.breakout force
|
kN
|
175±5
|
Max.horse power
|
kN
|
160±5
|
Hydraulic cycle time-raise
|
s
|
≤6
|
Total hydraulic cycle time
|
s
|
≤10.5
|
Min. turning radius over tyres
|
mm
|
5925±50
|
Articulation angle
|
°
|
38
|
Gradeability
|
°
|
30
|
Tyre size
|
|
23.5-25-16PR
|
Overall machine dimension L×W×H
|
mm
|
8225*3016*3515
|
Model
|
|
WD10G220E21
|
Rated Power
|
kW
|
162
|
