Quick Details
-
Max. Spindle Speed (r.p.m):
-
1500 r.p.m
-
Spindle Bore(mm):
-
52
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
750
-
Travel (X Axis)(mm):
-
200 mm
-
Travel (Z Axis)(mm):
-
750 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2550*1650*1700
-
Brand Name:
-
SGSK
-
Model Number:
-
CAK6140
-
Voltage:
-
220V/380V/410V
-
Weight (KG):
-
2450
-
Name:
-

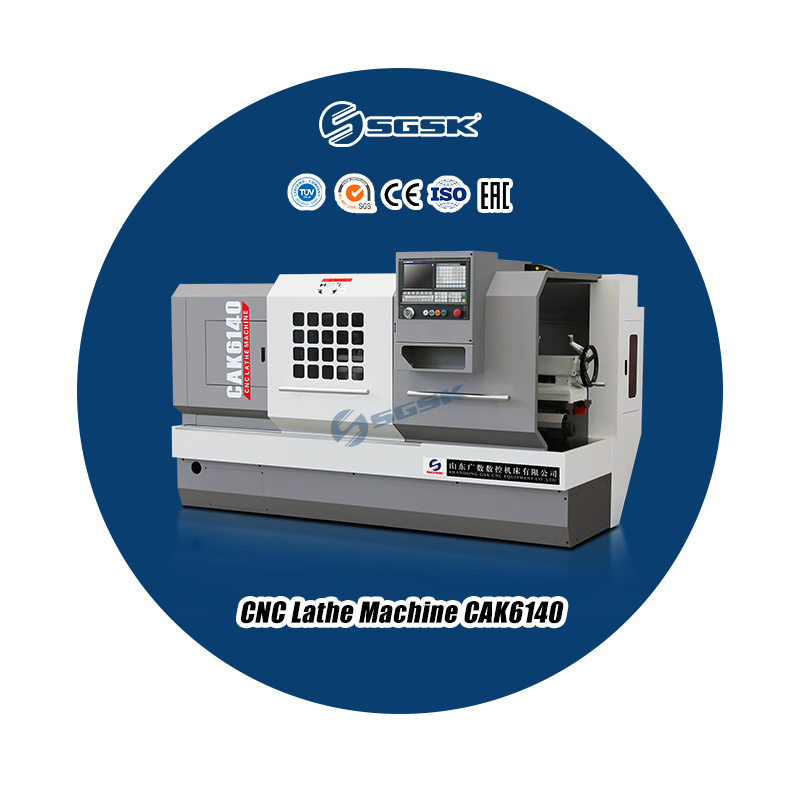

lathes cnc low cost CAK6140 cnc lathe price fanuc 3 axis cnc lathe
-
Model:
-
CAK6140
-
Machine Type:
-
Flat Bed CNC Lathe
-
Function:
-
Machining Metal
-
Precision:
-
High Precision Machine
-
Spindle speed:
-
1500
-
CNC Controller:
-
SIEMENS.FANUC.GSK
-
Motor power:
-
7.5
-
Spindle nose:
-
MT6
-
BRAND:
-
SGSK
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
750/1000/1500/2000/3000
-
Year:
-
new
-
Max. Spindle Speed (r.p.m):
-
1500 r.p.m
-
Spindle Bore(mm):
-
52
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
750
-
Travel (X Axis)(mm):
-
200 mm
-
Travel (Z Axis)(mm):
-
750 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2550*1650*1700
-
Brand Name:
-
SGSK
-
Model Number:
-
CAK6140
-
Voltage:
-
220V/380V/410V
-
Weight (KG):
-
2450
-
Name:
-
lathes cnc low cost CAK6140 cnc lathe price fanuc 3 axis cnc lathe
-
Model:
-
CAK6140
-
Machine Type:
-
Flat Bed CNC Lathe
-
Function:
-
Machining Metal
-
Precision:
-
High Precision Machine
-
Spindle speed:
-
1500
-
CNC Controller:
-
SIEMENS.FANUC.GSK
-
Motor power:
-
7.5
-
Spindle nose:
-
MT6
-
BRAND:
-
SGSK
lathes cnc low cost CAK6140 cnc lathe price fanuc 3 axis cnc lathe
Products Description
Standard configuration
Electric turret 4 position
3-jaw manual chuck
Spindle through hole 52mm
3 Steps speed
Optional configuration
Hydraulic chuck
Electric turret 6/8 position
Hydraulic tailstock
M ain features
3 steps speed geared spindle box
Stepless speed change
Divided bed structure
400mm bed width
Electric turret 4 position
3-jaw manual chuck
Spindle through hole 52mm
3 Steps speed
Optional configuration
Hydraulic chuck
Electric turret 6/8 position
Hydraulic tailstock
M ain features
3 steps speed geared spindle box
Stepless speed change
Divided bed structure
400mm bed width
|
SPECIFICATIONS
|
Units
|
CAK6140
CAK6140B CAK6140C |
CAK6150
CAK6150B CAK6150C |
CAK6161
CAK6161B CAK6161C |
CAK6166
CAK6166B CAK6166C |
CAK6180
CAK6180B CAK6180C |
||||
|
Swing over bed
|
mm
|
400
|
500
|
610
|
660
|
800
|
||||
|
Swing over cross slide
|
mm
|
180
|
250
|
350
|
380
|
520
|
||||
|
Distance between centers
|
mm
|
750/1000/1500/2000/3000
|
|
|
|
|
||||
|
Spindle bore
|
mm
|
|
52
|
(80 for B)
|
[105 for C]
|
|
||||
|
Spindle bore taper
|
-
|
|
MT6
|
(90 1:20 for B)
|
[113 1:20 for C]
|
|
||||
|
Spindle nose type
|
-
|
|
C6
|
(D8 for B)
|
[D8 for C]
|
|
||||
|
Spindle speed steps
|
-
|
手动3档 Manual 3 steps
|
|
|
|
|
||||
|
Spindle speed range
|
rpm
|
21-150,66-500,162-1500
|
|
|
|
|
||||
|
Turret/tool post
|
-
|
4工位电动刀架 Electric 4 position
|
|
|
|
|
||||
|
Tool size
|
mm
|
25*25
|
25*25
|
25*25
|
25*25
|
25*25
|
||||
|
X axis travel
|
mm
|
200
|
250
|
310
|
330
|
400
|
||||
|
Z axis travel
|
mm
|
750/1000/1500/2000/3000750/1000/1500/2000/3000
|
|
|
|
|
||||
|
X axis rapid traverse
|
mm/min
|
6000
|
6000
|
6000
|
6000
|
6000
|
||||
|
Z axis rapid traverse
|
mm/min
|
10000
|
10000
|
10000
|
10000
|
10000
|
||||
|
Tailstock quill diameter
|
mm
|
75
|
75
|
75
|
75
|
75
|
||||
|
Tailstock quill taper
|
-
|
MT5
|
MT5
|
MT5
|
MT5
|
MT5
|
||||
|
Tailstock quill travel
|
mm
|
150
|
150
|
150
|
150
|
150
|
||||
|
Main motor power
|
kw
|
7.5
|
7.5
|
7.5
|
11
|
11
|
||||
|
Coolant motor power
|
kw
|
0.125
|
0.125
|
0.125
|
0.125
|
0.125
|
||||
|
Weight for 750
|
kg
|
2450
|
2500
|
2550
|
2650
|
2750
|
||||
|
Weight for 1000
|
kg
|
2550
|
2600
|
2650
|
2750
|
2850
|
||||
|
Weight for 1500
|
kg
|
2650
|
2700
|
2750
|
2850
|
2950
|
||||
|
Weight for 2000
|
kg
|
3050
|
3150
|
3250
|
3350
|
3450
|
||||
|
Weight for 3000
|
kg
|
3850
|
3950
|
4050
|
4150
|
4250
|
||||
|
Dimension for 750
|
mm
|
2550*1650*1700
|
2550*1650*1750
|
2550*1700*1800
|
2550*1750*1850
|
2550*1750*1900
|
||||
|
Dimension for 1000
|
mm
|
2750*1650*1700
|
2750*1650*1750
|
2750*1700*1800
|
2750*1750*1850
|
2750*1750*1900
|
||||
|
Dimension for 1500
|
mm
|
3250*1650*1700
|
3250*1650*1750
|
3250*1700*1800
|
3250*1750*1850
|
3250*1750*1900
|
||||
|
Dimension for 2000
|
mm
|
3700*1650*1700
|
3700*1650*1750
|
3700*1700*1800
|
3700*1750*1850
|
3700*1750*1900
|
||||
|
Dimension for 3000
|
mm
|
4710*1650*1700
|
4710*1650*1750
|
4710*1700*1800
|
4710*1750*1850
|
4710*1750*1900
|
||||
Manual 3 steps speed
Standard with Manual 3 steps speed change.
Grease spindle. .
Grease spindle. .
BIG SPINDLE HOLE
52mm is standard,
80/105mm spindle hole are optional.
80/105mm spindle hole are optional.
DIVIDED CASTING STRUCTURE
Higher stability machine bed.
ELECTRIC TURRET 4 POSITION
Standard with electric 4 position turret.
Optional:electric turret 6/8 position.
Optional:electric turret 6/8 position.
3 JAW CHUCK
Standard with10” 3-jaw manual chuck.
Optional: hydraulic chuck/tailstock.
Optional: hydraulic chuck/tailstock.
MANUAL TAILSTOCK
Standard withmanual tailstock.
Optional: Hydraulic tailstock.
Optional: Hydraulic tailstock.
CNC CONTROL SYSTEM
Standard:GSK controller.
Optional:Siemens,Fanuc,Syntec,Mitsubishi and others.
Optional:Siemens,Fanuc,Syntec,Mitsubishi and others.
Electrical Cabinet
Standard: DELIXI brand,
Optional: Schneider, Siemens
Optional: Schneider, Siemens
400mm LATHE BED WIDTH
Guideway width 400mm.
LUBRICATION SYSTEM
Automatic lubrication device .
