Quick Details
-
Color:
-
BLACK, Black
-
Type:
-
fuse cut out
-
working current:
-
160A
-
Standard:
-
CE/IEC
-
Suit for fuse:
-
NH1
-
Material:
-
PC
-
Application:
-
Electric Power Transmission
-
Certificate:
-
CE
-
Product Name:
-
fuse carrier
-
Rated Voltage:
-
380V
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SMICO
-
Model Number:
-
APDM 160
-
Color:
-
BLACK, Black
-
Type:
-
fuse cut out
-
working current:
-
160A
-
Standard:
-
CE/IEC
-
Suit for fuse:
-
NH1
-
Material:
-
PC
-
Application:
-
Electric Power Transmission
-
Certificate:
-
CE
-
Product Name:
-
fuse carrier
-
Rated Voltage:
-
380V

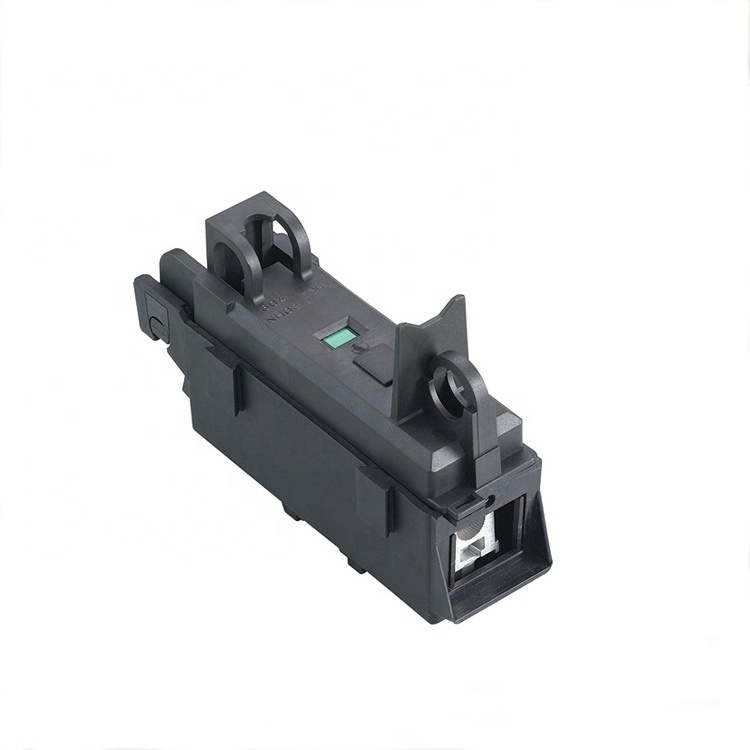

APDM 160A LV pole mounted fuse switch disconnector/fuse carrier/fuse cutout
it is used either as an operation pr protection device for LV lines.It is designed to be used with NH00 size fuses offering a maximum of 160A of line protection without blades.
In case blades are used,the maximum switching load would be 250A.It is manufactured in reinfored fiberglass polyamide and fulfills all the necessary requirements for outdoor installation and operation.
In the APDM 160C model the connection is made with terminals lugs and both models can be installed with single phase or three phase opening.
They have special sockets to obtain a compact set.
The switch is operated from the ground with an operating rod and also has an indicator to show if the fuse is placed.It can be sealed with security ties.
It also has a led to show the fusion of the fuse.
| voltage | 500V |
| insulation level | 1000V |
| frequency | 50/60HZ |
| Operational current with fuse | 160A |
| Operational current with blades | 250A |
| Installation category | AC22 |
| Interruption capacity | 100KA |
| Minimum mechanical life | 1000 |
| Weight | 600G |
| Protection range | IP23 |
