Quick Details
-
Warranty:
-
1 YEAR, 1 Year Warranty
-
Brand Name:
-
AJK
-
Model Number:
-
AJK-B2701
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
4W
-
Cable Length:
-
as per requirement
-
Outlet Size:
-
4.2mm
-
Power:
-
4W, Electric
-
Usage:
-
Air Pump
-
Feature:
-
Long Life,High Efficiency,Low Noise
-
Certificate:
-
CE ROHS
-
Max Flow rate:
-
>2.0 l/min
-
Max. pressure:
-
70kPa
-
Type:
-
High Pressure Dc Micro Air Pump
Quick Details
-
Application:
-
Metal and Equipment Manufacturers
-
Pressure:
-
60kPa
-
Voltage:
-
3V, 6V, 12V and 24V, 6V/12V/24V
-
Warranty:
-
1 YEAR, 1 Year Warranty
-
Brand Name:
-
AJK
-
Model Number:
-
AJK-B2701
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
4W
-
Cable Length:
-
as per requirement
-
Outlet Size:
-
4.2mm
-
Power:
-
4W, Electric
-
Usage:
-
Air Pump
-
Feature:
-
Long Life,High Efficiency,Low Noise
-
Certificate:
-
CE ROHS
-
Max Flow rate:
-
>2.0 l/min
-
Max. pressure:
-
70kPa
-
Type:
-
High Pressure Dc Micro Air Pump

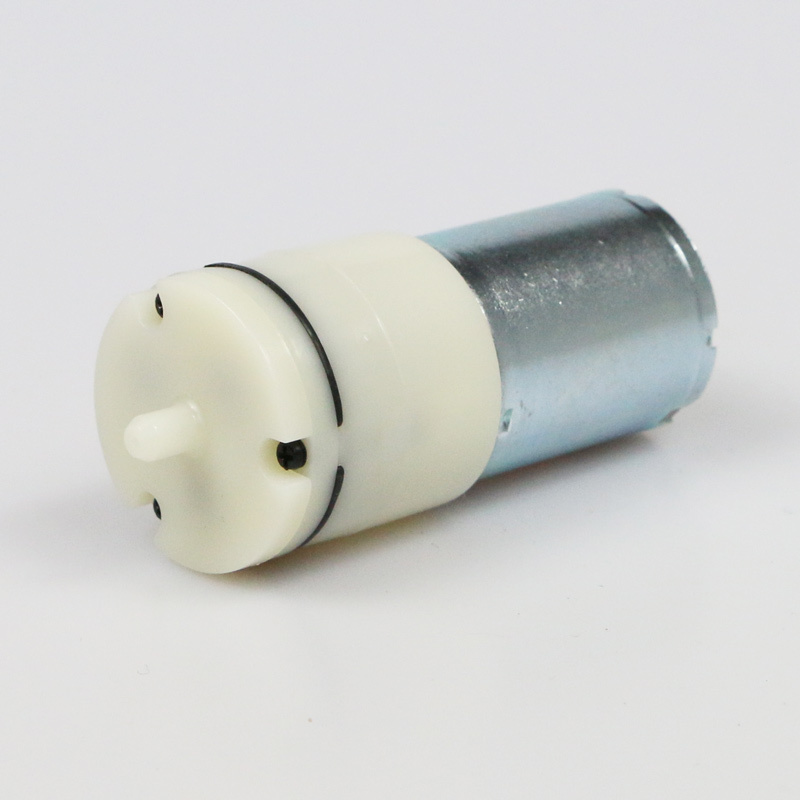

Product show
Product description:
AJK small diaphragm air/vacuum pump with innovative design, ideal for household appliances and health care equipment. It can be used to pump medical device as well.
Features:
AJK innovative engineering design enables the air pumps to perform efficiently in a compact and lightweight size.
AJK small air pump can be customized with carbon motor or brushless motor.
Easy assembly, low vibration and noise.
ISO9001, CB, PAHs, REACH, RoHS compliant.
AJK innovative engineering design enables the air pumps to perform efficiently in a compact and lightweight size.
AJK small air pump can be customized with carbon motor or brushless motor.
Easy assembly, low vibration and noise.
ISO9001, CB, PAHs, REACH, RoHS compliant.
Typical Applications:
Blood pressure monitor,massage chairs,air purifier and so on.
Blood pressure monitor,massage chairs,air purifier and so on.
|
Model
|
Rated Voltage
|
Rated Current
|
Free Flow
|
Pressure
|
Noise
|
Load
|
|
AJK-B2701
|
DC 6.0 V
|
< 400 mA
|
> 2.0 LPM
|
> 70 KPa
|
< 65 dB
|
Air
|
|
|
DC 12.0 V
|
< 250 mA
|
> 2.0 LPM
|
> 70 KPa
|
< 65 dB
|
Air
|
|
|
DC 24.0 V
|
< 200 mA
|
> 2.0 LPM
|
> 70 KPa
|
< 65 dB
|
Air
|
