200w 300w 500w 1kw 1.5kw 2kw 3kw 5kw 10kw 20kw 30kw permanent magnet alternator generator

200w 300w 500w 1kw 1.5kw 2kw 3kw 5kw 10kw 20kw 30kw permanent magnet alternator generator

FOB Reference Price: Get Latest Price

≥1 Sets

US $270

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 300w-30kw

Warranty:: 2 years

Certification:: ce

Output Voltage:: 12v-800v

rotor diameter:: 1.9m-17m

Type:: Wind Power Generator

Generator type:: 3 phase AC low rpm directly drive

Application:: HAWT, VAWT, HYDRO TURBINE

permanent magnet material:: NdFeB, rare earch

Working voltage:: 12v 24v 48v 96v 120v 240v,380v 500v

Assebmly:: rotor,stator,housing, front cover,back cover

Tamper degree:: 1:10 or manufacture according request

Housing material:: aluminum/iron cast

Gear:: no

Rated power:: 300w-30kw

Quick Details

Rated Power:: 200w-50kw

Place of Origin:: Shandong, China

Brand Name:: HENRYD

Model Number:: 300w-30kw

Warranty:: 2 years

Certification:: ce

Output Voltage:: 12v-800v

rotor diameter:: 1.9m-17m

Type:: Wind Power Generator

Generator type:: 3 phase AC low rpm directly drive

Application:: HAWT, VAWT, HYDRO TURBINE

permanent magnet material:: NdFeB, rare earch

Working voltage:: 12v 24v 48v 96v 120v 240v,380v 500v

Assebmly:: rotor,stator,housing, front cover,back cover

Tamper degree:: 1:10 or manufacture according request

Housing material:: aluminum/iron cast

Gear:: no

Rated power:: 300w-30kw

High efficiency generator for wind turbine, aluminum housing, low rpm, horizontal type generator

2KW PMA: US$350.00/SET

Product Description

1.Product Main Features

Gearless, direct drive, low RPM generator
Low start up speed due to low cogging and resistive torque design
High standard, quality components for use in harsh and extreme environments for wind turbines
High efficiency and Low mechanical resistance energy loss
Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure
High strength from the specially desy selecign structure and fully heat treatment Aluminium
Generator is designed using speciallted material and treated to resist corrosion and oxidation
Designed for reliable and long operational lifetime under long-term full output
Designed for 20-years operation life
Patent protected design

2. permanent magnet generator technical data

2kw permanent magnet generator, 3 phase AC permanent magnet generator, low frequency output

Rated output power: 2kw

Max output power: 3kw

Rated rotation speed is 350rpm

Working voltage: 12V 24V 48V 96V 120V 240V 360V OR customized

2kw pma net weight is 22.5kgs

gross weight is about 28kgs;

The price is US$ 350.00/set. (excludes the delivery cost to your address)

It can use on the HAWT and VAWT. Pls see attached normal technical data. The working voltage can be special request.

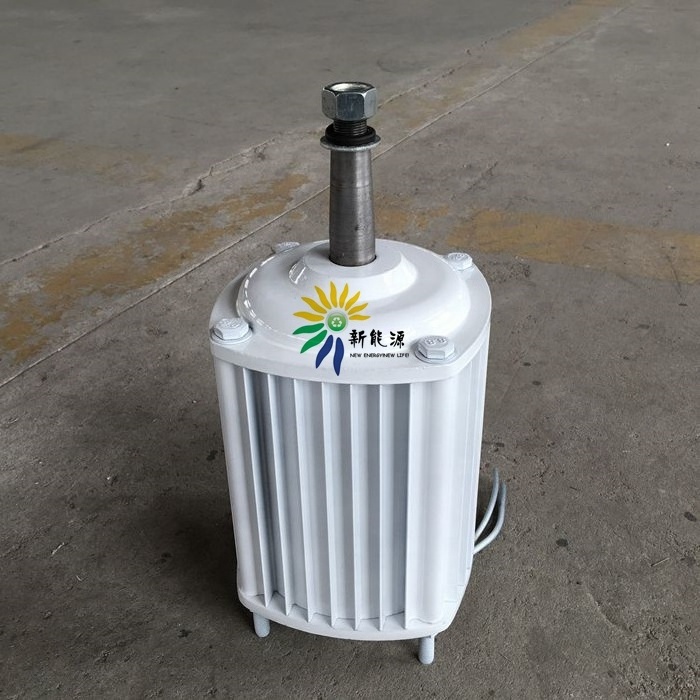

2kw is aluminum shell generator with waterproof design.

The generator is star connection

500w-2.5kw generator use Aluminum Casting generator shell.

3kw-50kw shell is iron cast. With Aluminum spray treatment.

3 phrase Ac permanent magnet generator

Working voltage optional

Provide stator, rotor

Material: Nd-Fe-B38 permanent magnet

light weight

lower start up torque

compact structure

SKF/NSK bearing

high efficiency

star connection

lower rated rotation speed

12v, 24v, 36v, 48v, 56v, 96v, 120v, 240v,360v, 500v... Working voltage can be special request. We can revise the winding accordingly.

Model	Rated power	Max Power	RPM (r/min)	Start torque (N/m)
300W	300W	500W	600	0.5
500W	500W	750W	550	0.8
1KW	1000W	1500W	470	1.5
2KW	2000W	3000W	430	2
3KW	3000W	4500W	300	3
5KW	5000W	7500W	260	4.5
10KW	10kw	15kw	200	7.5
20KW	20kw	30kw	200	10

Model	Rated power	Max Power	RPM (r/min)	Start torque (N/m)
2KW	2000w	3000w	430	2
3KW	3000w	4500w	300	3
5KW	5000w	7500w	260	4.5
10KW	10kw	15kw	200	7.5
30KW	30KW	35KW	200	10
50KW	50KW	60KW	80	100
60KW	60KW	70KW	60	120
