Quick Details
-
Weight (KG):
-
1 KG
-
size:
-
126*98*105mm
-
weight:
-
1.85Kg
-
aperture size:
-
14mm
-
operating temp:
-
0℃--45℃
-
marking speed:
-
2000mm/s
-
positioning speed:
-
2000mm/s
-
writing speed:
-
176cps
-
tracking error:
-
≤202us
-
Llinearity:
-
99.9%
-
Wavelength:
-
10600nm / 1064nm / 355nm
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Spare Parts Type:
-
Laser accessories
-
Brand Name:
-
JHC
-
Weight (KG):
-
1 KG
-
size:
-
126*98*105mm
-
weight:
-
1.85Kg
-
aperture size:
-
14mm
-
operating temp:
-
0℃--45℃
-
marking speed:
-
2000mm/s
-
positioning speed:
-
2000mm/s
-
writing speed:
-
176cps
-
tracking error:
-
≤202us
-
Llinearity:
-
99.9%
-
Wavelength:
-
10600nm / 1064nm / 355nm

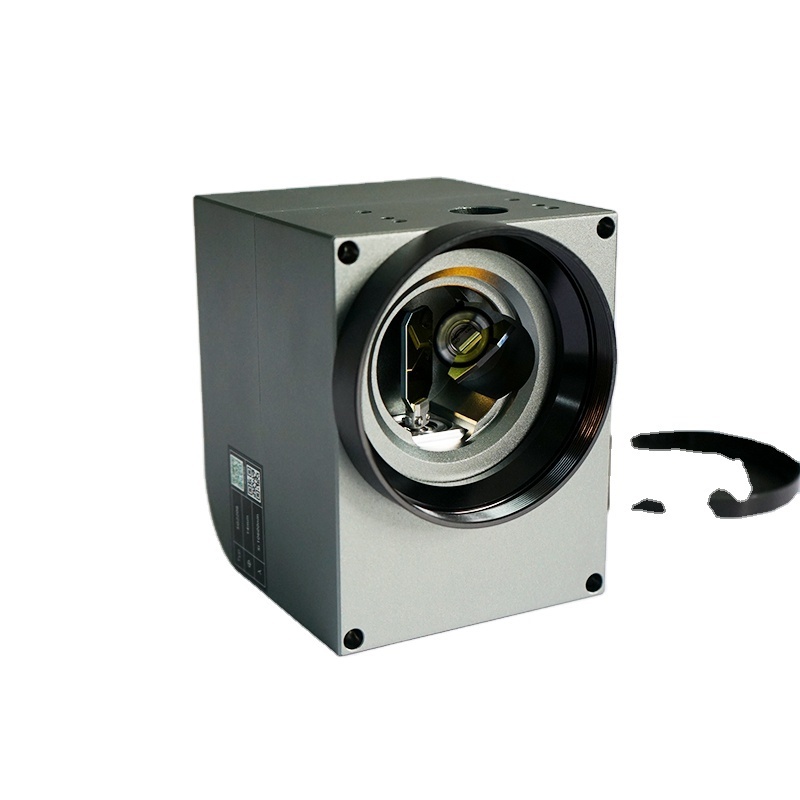

CO2 Galvo head SG2208
Sg2208 is mainly applicable to high-speed laser marking, and the standard incident spot diameter is 14mm. The galvanometer system has the characteristics of zero drift, fast speed, small volume, low temperature and stable and reliable operation.
|
marking speed
|
2000mm/s
|
|
positioning speed
|
2000mm/s
|
|
writing speed
|
176cps
|
|
1% of full scale
|
510us
|
|
10% of full scale
|
1540us
|
|
tracking error
|
≤202us
|
|
Llinearity
|
99.9%
|
|
repeatability
|
＜8μRad
|
|
long-term drift (8H)
|
＜0.5mRad
|
|
gain drift
|
＜40PPM/℃
|
|
zero offset
|
＜15μRad/℃
|
|
Wavelength
|
10600nm / 1064nm / 355nm
|
|
operating temp
|
0℃--45℃
|
|
aperture size
|
14mm
|
|
size
|
126×98×105mm
|
|
weight
|
≈1.85Kg
|
