Quick Details
-
Blade Length (mm):
-
2600 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
130 mm
-
Brand Name:
-
HUIDE
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
4200 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
3040*1710*1620
-
Year:
-
2024
-
Marketing Type:
-
New Product 2022
-
Product name:
-

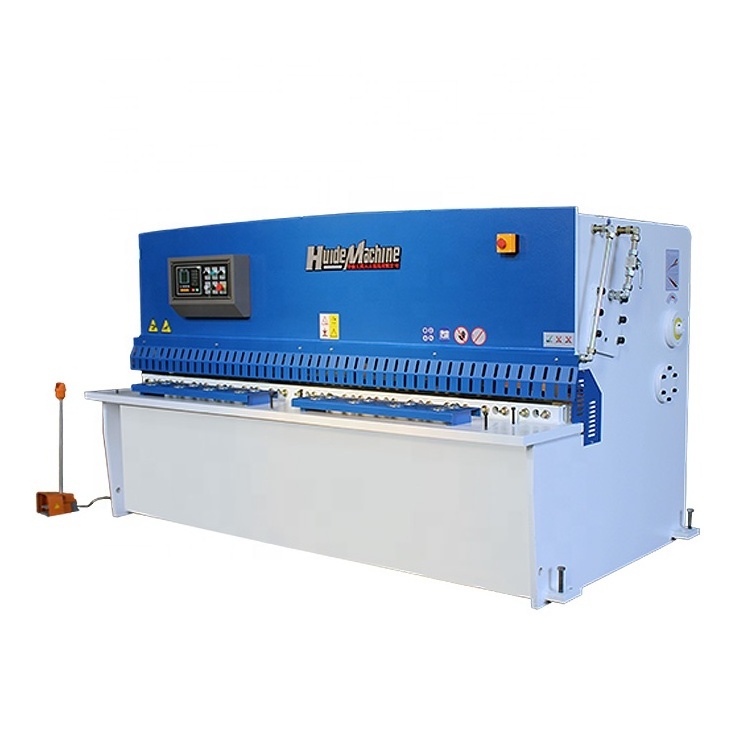

QC12K series hydraulic shearing machine
-
Brand:
-
Huide
-
Control system:
-
E21 control system
-
Cutting thickness:
-
0.5-4mm
-
Cutting material:
-
Metal Stainless Steel Carbon Steel
-
Cutting mode:
-
Hydraulic Metal Cutting
-
Material:
-
Stainless
-
Main Motor:
-
Siemens Germany
-
CNC or not:
-
CNC Cutter Machine
-
BLADE:
-
9CrSi/6CrW2Si
Quick Details
-
Max. Cutting Width (mm):
-
2500
-
Max. Cutting Thickness (mm):
-
6 mm
-
Shearing Angle:
-
1°30'
-
Blade Length (mm):
-
2600 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
130 mm
-
Brand Name:
-
HUIDE
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
4200 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
3040*1710*1620
-
Year:
-
2024
-
Marketing Type:
-
New Product 2022
-
Product name:
-
QC12K series hydraulic shearing machine
-
Brand:
-
Huide
-
Control system:
-
E21 control system
-
Cutting thickness:
-
0.5-4mm
-
Cutting material:
-
Metal Stainless Steel Carbon Steel
-
Cutting mode:
-
Hydraulic Metal Cutting
-
Material:
-
Stainless
-
Main Motor:
-
Siemens Germany
-
CNC or not:
-
CNC Cutter Machine
-
BLADE:
-
9CrSi/6CrW2Si
| Machine Model | QC12K-6×2500 (E21S) |
| Max cutting thickness (mm) | 6 |
| Max cutting length (mm) | 2500 |
| Cutting angle(°) | 1°30′ |
| Travel times(times/min) | 14 |
| Main motor power(KW) | 7.5 |
| Over dimension | 3840×1710×1620 |
Features
-Adopt series QC12Y type structure,with economic type special-purpose digital
control system.
-Back gauge position is displayed in real time.
-Multi-stages progrom,autumatic operation of back gague,continuous positioning,
realization the automatic adjustment of the position of back gauge with excellent
precision.
-Shear time calculation ,display the amount of shear in real time,record the position
of back gague,program and parameters in power break.
-Back gague use imported ball screw,which improve the precision of the positioning
of back gagueand also the precision of the processing of the machine.
