This machine is mainly used in chemical industry,food, spices, resin powder, besmear powder etc, It has the features of high capacity and easy maintenance.
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
110 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
wantong
-
Voltage:
-
220v or 380v
-
Dimension(L*W*H):
-
720x850x1350
-
Weight (KG):
-
250 KG
-
Product name:
-
Industries complete rice almond milling machine
-
material:
-
stainless steel
-
Material:
-
Stainless Steel 304/316
-
Machine Type:
-
Industries complete rice almond milling machine
-
Usage:
-
Powder making machine
-
Capacity:
-
20-150 Kg/h
-
output size:
-
20-120mesh
-
Feed Size:
-
6mm(Max
-
Weight:
-
380kg
-
Power(W):
-
4~22kw
Quick Details
-
Output (kg/h):
-
30 - 150 kg/h
-
Feeding Size (mm):
-
1 - 6 mm
-
Output Size (mesh):
-
12 - 120 mesh
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
110 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
wantong
-
Voltage:
-
220v or 380v
-
Dimension(L*W*H):
-
720x850x1350
-
Weight (KG):
-
250 KG
-
Product name:
-
Industries complete rice almond milling machine
-
material:
-
stainless steel
-
Material:
-
Stainless Steel 304/316
-
Machine Type:
-
Industries complete rice almond milling machine
-
Usage:
-
Powder making machine
-
Capacity:
-
20-150 Kg/h
-
output size:
-
20-120mesh
-
Feed Size:
-
6mm(Max
-
Weight:
-
380kg
-
Power(W):
-
4~22kw

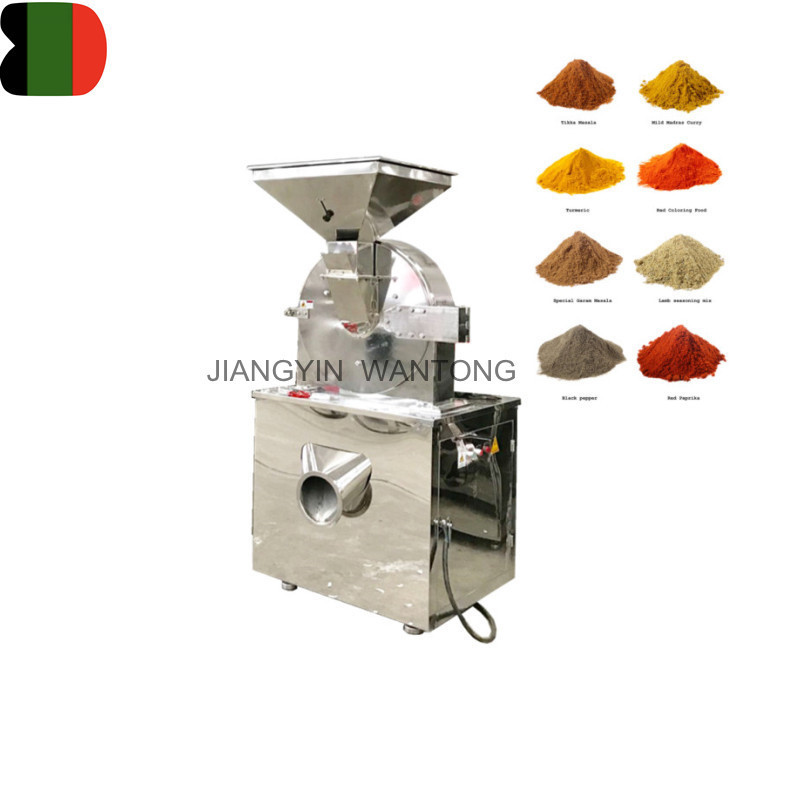

WF Crusher Machine Industrial Herb Tea Leaf Powder Grinder
WF UNIVERSAL PULVERIZER
Working Principle
This machine adopts the tooth disc high-speed rotating knife, the fixed knife impact and shear grinding to crush. The crushing effect is good, the heat of crushing chamber and finished product outflow together from sieve by strong airflow which produced when crushing, crushing fineness can be decided by different sieves.
The unit make the materials crushed by the impact & grind function of the relative motion between active and fixed fluted discs, and impact between the materials. Smashed materials enter into the capture bag by rotating centrifugal force function, the dust filtered and recycled by dust collector through a bag filter box. This machine designed according to GMP standard and wholly made of stainless steel materials, has no flying dust during production. It can improve the utilization rate of material and reduce cost of enterprise, and has reached the international advanced level at present.
Product Paramenters
|
Model
|
Capacity (kg)
|
Feed size(mm)
|
Output size(mesh)
|
Total power(kw)
|
Main speed(r/min)
|
Dimension
(mm)
|
Weight (kg)
|
|
WF-20B
|
20-150
|
<6
|
12-120
|
4
|
~4500
|
550*600*1250
|
250
|
|
WF-30B
|
50-300
|
<10
|
|
5.5
|
~3800
|
600*750*1450
|
320
|
|
WF-40B
|
100-400
|
<12
|
|
7.5
|
~3400
|
750*900*1600
|
450
|
|
WF-50B
|
200-500
|
<15
|
|
11
|
~2900
|
850*900*1850
|
580
|
|
WF-60B
|
300-600
|
<15
|
|
22
|
~2400
|
950*1000*1850
|
600
|
|
WF-80B
|
500-1200
|
<15
|
|
37
|
~2200
|
2400*1100*2000
|
1000
|
