Quick Details
-
Warranty:
-
6 Months
-
Model Number:
-
TG-PS-01
-
Car Make:
-
Universal
-
Sensors:
-
detect if the safety belt is fastened
-
Two-level reminder:
-
1st level: vision,2nd level: vision + sound
-
SBR Features:
-
1.Membrane,2.Activated by pressure
-
Usage:
-
Can adjust layout and sensibilities of sensors according to the shape
Quick Details
-
OE NO.:
-
Universial
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Touchgoal
-
Warranty:
-
6 Months
-
Model Number:
-
TG-PS-01
-
Car Make:
-
Universal
-
Sensors:
-
detect if the safety belt is fastened
-
Two-level reminder:
-
1st level: vision,2nd level: vision + sound
-
SBR Features:
-
1.Membrane,2.Activated by pressure
-
Usage:
-
Can adjust layout and sensibilities of sensors according to the shape
Product Specification
|
Sensors
|
detect if the safety belt is fastened
|
|
Two-level reminder
|
1st level: vision,2nd level: vision + sound
|
|
SBR Features
|
1.Membrane,2.Activated by pressure
|
|
Usage
|
Can adjust layout and sensibilities of sensors according to the shape
|
|
SBR Applications
|
taximeters, air-bag sensors and driver-presence sensing sensors
|
Product Description

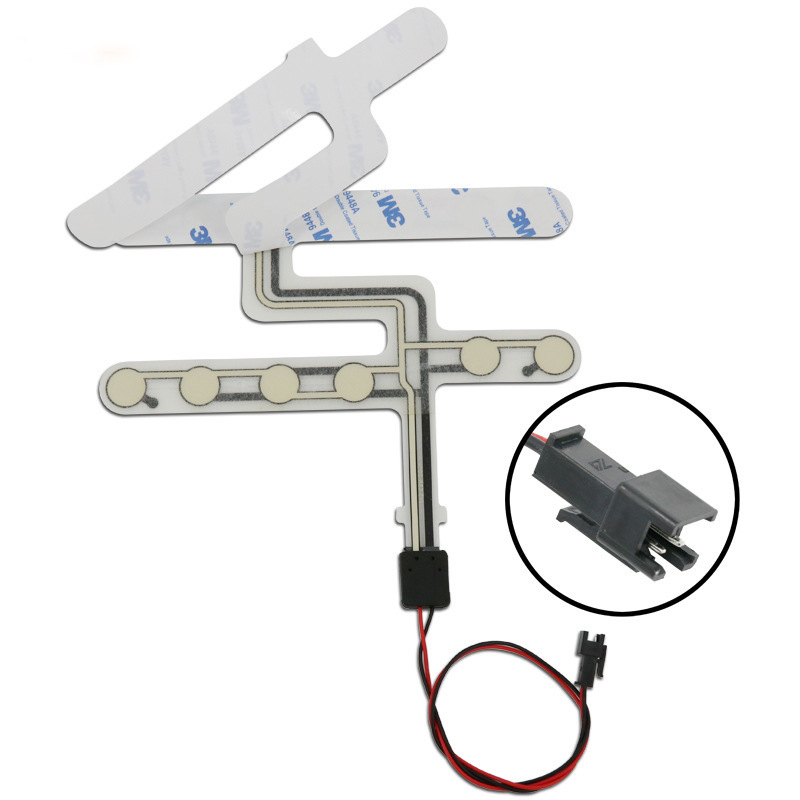

Automotive SBR Pressure Sensor
The full name of SBR is Safety Belt Reminder, which is a safety belt reminder device. This device is usually installed between the co-pilot driver's seat foam and the outer skin or between the foam and the bracket. Its function is to send an alarm when a passenger is sitting in the seat without a seat belt to remind the co-pilot driver and passenger to fasten their seat belts.
The working mechanism of the SBR pressure sensor is as shown in the figure below. When someone sits on the co-pilot driver's seat, the pressure signal will be transmitted to the SBR controller. At this time, if the passenger does not fasten the seat belt, the signal of the seat belt sensor will be transmitted to the SBR controller at the same time device, so that the car will immediately flash the safety indicator light and issue an alarm, and some automotive products will issue an alarm after the car reaches a certain speed.
