black pepper size grading vibrating screen sieve machine

Introduction of Sieve Separator

This electric automatic vibrating Separator used for grading/sortig/separating Black pepper or white peppers .To remove smaller or larger size black peppers .

How Black Pepper Sorter Working

The Black Pepper sorter can be single deck or multi decks , separate raw black peppers to different size fractions , and discharge from individual outlet .

both home use and industrial use sieve vibrator are availble , process capacity can be customized according to needs .

Usually there are mesh size of  6 , 8 ,10 grading black peppers , or other size 2-500meshes also vailable .

Easy to Replace a Different Mesh Screen

When need to change a different mesh screen , for small aperture size , j ust remove the fast release clamp  ,spread mesh on the punched hole deck ,  then install the screen frame , and tightening release clamp again .

For larger aperture size , we advise you buy a spare screen deck and install it directly . easy and fast .

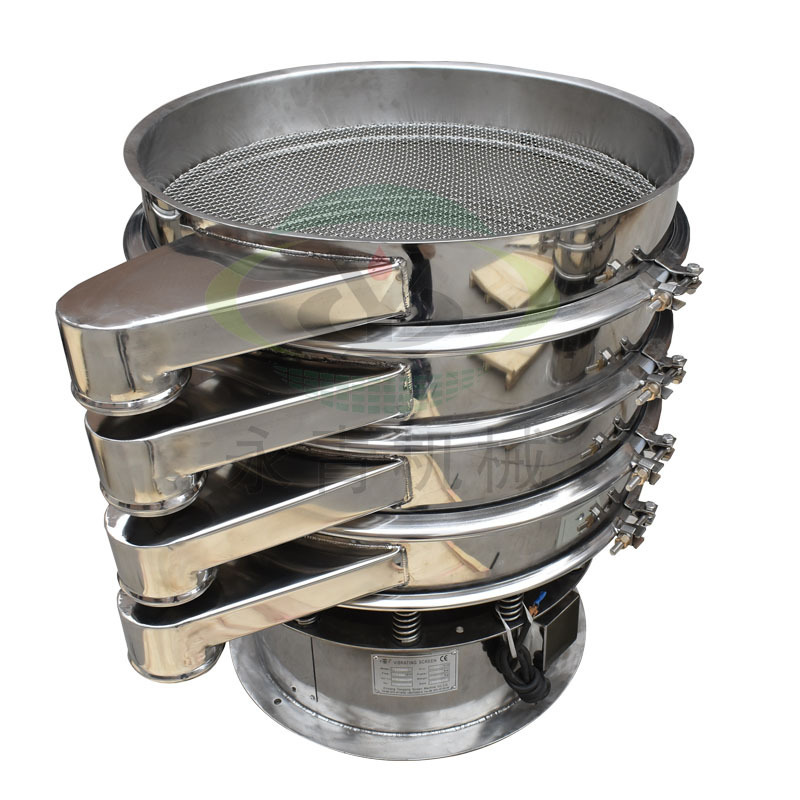

Black Pepper Size Separating Sieve

Model : XZS800-3

Material : 304 stainless steel

Deck : Three decks

Mesh Size : 6 , 8 , 10 mesh

Process Material : black pepper

Process Capacity : 300kg/h

weight : 290kg

Power : 0.55kw

Model

XZS-500

XZS-600

XZS-800

XZS-1000

XZS-1200

XZS-1500

XZS-1800

XZS-2000

Dia (mm)

500

600

800

970

1170

1470

1770

1970

Deck

1-5

1-5

1-5

1-5

1-5

1-3

1-2

1-2

Screen Dia (mm)

430

530

730

900

1100

1400

1700

1900

Mesh Size

2-500mesh

Maximum particle size(mm)

<20

<20

<30

<30

<50

<50

<50

<50

rotating speed

1440rpm

Power(kw)

0.25- 0.55

0.25-0.55

0.55-0.75

0.75-1.5

1.1-1.8

1.5-2.2

2.2

2.2
