Quick Details
-
Filling Accuracy:
-
≤±1%
-
Driven Type:
-
Electric and pneumatic
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 1270*1030*1200mm
-
Weight:
-
112 KG
-
After-sales Service Provided:
-
No overseas service provided
-
Marketing Type:
-
New Product 2022
Quick Details
-
Machinery Capacity:
-
1800BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Liquid
-
Filling Accuracy:
-
≤±1%
-
Driven Type:
-
Electric and pneumatic
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 1270*1030*1200mm
-
Weight:
-
112 KG
-
After-sales Service Provided:
-
No overseas service provided
-
Marketing Type:
-
New Product 2022
Product Description
|

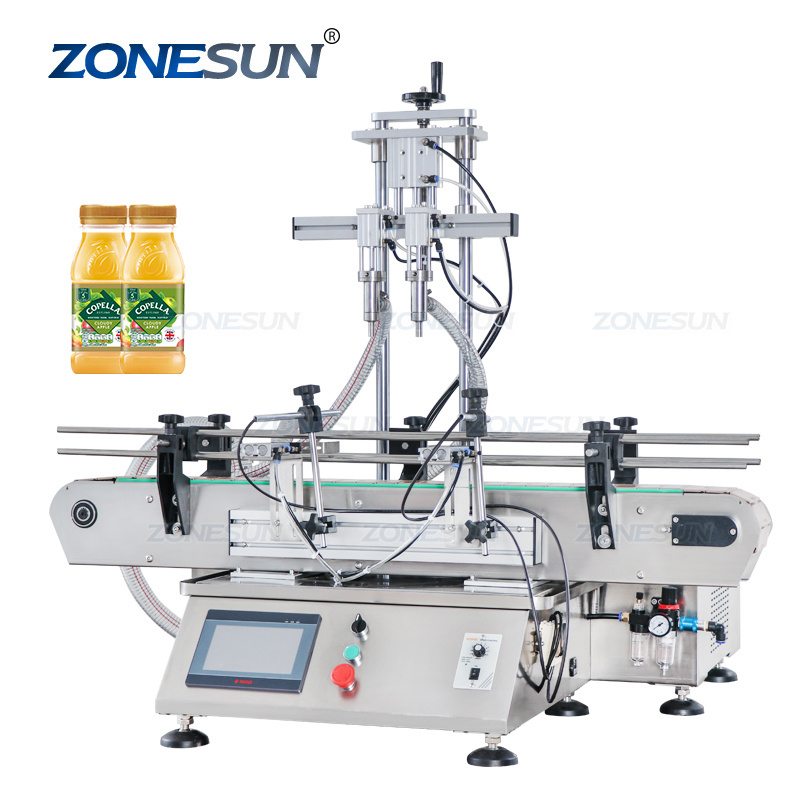

Machine Model
|
ZS-DTHSP2
|
|
|
|
|||
|
Voltage
|
220V/110V 50-60Hz
|
|
|
|
|||
|
Power
|
400W
|
|
|
|
|||
|
Filling Head
|
2 Heads(Can be customized)
|
|
|
|
|||
|
Filling Range
|
5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
|
|
|
|
|||
|
Filling Speed
|
10-30 bottles/min(depending on bottle size and liquid)
|
|
|
|
|||
|
Filling Heads Diameter
|
OD 10mm(Can choose other sizes)
|
|
|
|
|||
|
Filling Accuracy
|
≤±1%
|
|
|
|
|||
|
Air Pressure
|
0.4-0.6Mpa
|
|
|
|
|||
|
Machine Size
|
About 1270*1030*1200mm
|
|
|
|
|||
|
Machine Weight
|
About 112kg
|
|
|
|
|||
Designed for detecting bottles,the electric eye can control the machine to work automatically.Intelligent and efficient.The sensitivity of electric eye can be regulated according to production need.
The chain conveyor belt has the advantage of large loading capacity, which can convey bottles steadily.The width and conveying speed of it can be adjusted as needed.
Related Products
Company Introduction
Our Service
FAQ
Q1: Are you factory or trading company?
A: We are factory or manufacturer.
Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q4: How could I get the spares on machines?
A:We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection. Our factory already highest stars of the grade.
Q6.What's the payment terms and trade terms for new customers?
A: Payment terms:30% T/T DEPOSIT PAYMENT IN ADVANCE,BALANCE 70% AGAINST COPY OF B/L.WESTERN UNION,LC ARE ACCEPTABLE.
Q7:What's the Minimum Order Quantity and warranty?
A:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
