Quick Details
-
Applicable Industries:
-
Warehouse
-
Place of Origin:
-
China
-
Brand Name:
-
DIYA
-
Voltage:
-
Gravity
-
Dimension(L*W*H):
-
Accept Customized Sizes
-
Weight (KG):
-
20 kg
-
Product name:
-

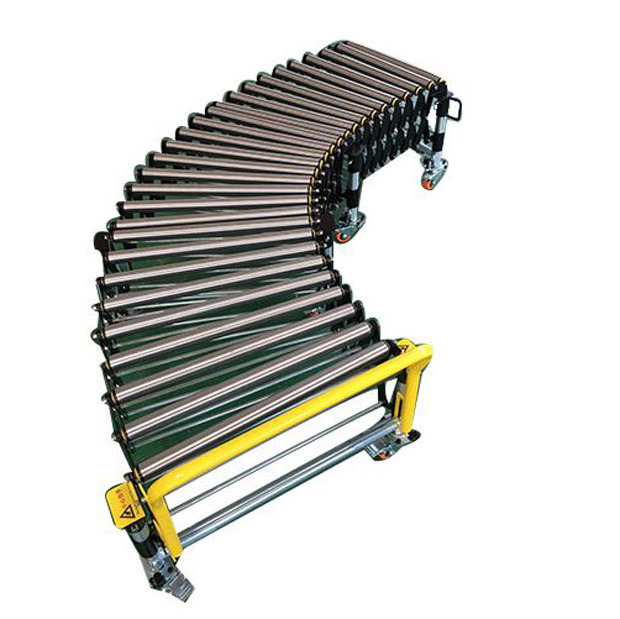

stretchable flexible carrier roller conveyor
-
Application:
-
Warehouse
-
Keyword:
-
Roller conveyor
-
Frame Material:
-
Stainless Steel
-
Usage:
-
Workshops Continual Conveying
-
Feature:
-
Simple Operation
-
Size:
-
Accept Customized Sizes
-
bearing capacity:
-
50kg
-
After Warranty Service:
-
Online support
Quick Details
-
Power:
-
120W/Meter
-
Warranty:
-
1 Year
-
Width or Diameter:
-
500mm
-
Applicable Industries:
-
Warehouse
-
Place of Origin:
-
China
-
Brand Name:
-
DIYA
-
Voltage:
-
Gravity
-
Dimension(L*W*H):
-
Accept Customized Sizes
-
Weight (KG):
-
20 kg
-
Product name:
-
stretchable flexible carrier roller conveyor
-
Application:
-
Warehouse
-
Keyword:
-
Roller conveyor
-
Frame Material:
-
Stainless Steel
-
Usage:
-
Workshops Continual Conveying
-
Feature:
-
Simple Operation
-
Size:
-
Accept Customized Sizes
-
bearing capacity:
-
50kg
-
After Warranty Service:
-
Online support
Material handling conveying equipment automatic belt conveyor for loading unloading
Product Description
The roller conveyor has a simple structure, high reliability, and convenient use and maintenance. The roller conveyor is suitable for the conveyance of articles with a flat bottom, which is mainly composed of a driving drum, a frame, a bracket, a driving part and the like. It has the characteristics of large transport volume, high speed, light operation, and the ability to realize the transmission of multiple lines at the same time.
|
Model
|
Roller conveyor
|
|
|
|
|||
|
Size
|
Customize
|
|
|
|
|||
|
Voltage
|
110V 220V 380V 440V
|
|
|
|
|||
|
Speed
|
5-25m/min
|
|
|
|
|||
|
Material
|
stainless steel
|
|
|
|
|||
|
Machine weight
|
100KG
|
|
|
|
|||
Please confirm the following technical parameters for custom drum conveyor line:
1. The length, width and height of the conveying object;
2. The weight of each conveying unit;
3. The bottom condition of the conveyor;
4. Are there any special working environment requirements (e.g. humidity, high temperature, impact of chemicals, etc.)?
5. Conveyor belongs to powerless or motor-driven type. In order to ensure smooth delivery of goods, at least three rollers must be in contact with the conveyor at any point in time. Pallets should be transported when necessary for soft bag packages.
The materials of drum conveyor line are carbon steel, stainless steel, aluminum, PVC and plastic steel.
The driving modes of drum conveyor line are: deceleration motor drive and electric roller drive.
The speed regulation modes of drum conveyor line include frequency conversion speed regulation and electronic speed regulation.
Applications: Electronics, beverage, food, packaging, machinery, electronics, light industry, tobacco, chemical industry, medicine, rubber and plastics, motorcycle, logistics and other industries
Driving modes: single sprocket, double sprocket, O-belt, plane friction belt, synchronous belt, and line-shaft drive.
Structural form: From the driving form, it can be divided into power, no power, electric drum and so on. According to the layout form, it can be divided into horizontal transmission, inclined transmission and turning transmission. Multilayer transportation.
Equipment features: It is easy to connect and filter between drum conveyor lines. It can be used to form complex logistics conveyor system and shunt and confluence system with multiple drum lines and other conveyor equipment or special units to meet various technological needs.
