- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
MYAMI
-
Model Number:
-
800
-
Temperature Control Accuracy:
-
±50℃
-
Maximum atmospheric flow:
-
23L/min
-
Heating core voltage:
-
24VAC
-
Dimension:
-
48.5*39.3*26cm
-
Weight:
-
10kg
-
Application:
-
Repair laboratory
-
Product name:
-
bga rework station
-
Usage:
-
BGA
-
Keyword:
-
Rework Soldering Station
Quick Details
-
Type:
-
Digital
-
Tip Type:
-
CHISEL, Conical, Knife, Needle, Screwdriver, Straight, Tweezer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MYAMI
-
Model Number:
-
800
-
Temperature Control Accuracy:
-
±50℃
-
Maximum atmospheric flow:
-
23L/min
-
Heating core voltage:
-
24VAC
-
Dimension:
-
48.5*39.3*26cm
-
Weight:
-
10kg
-
Application:
-
Repair laboratory
-
Product name:
-
bga rework station
-
Usage:
-
BGA
-
Keyword:
-
Rework Soldering Station

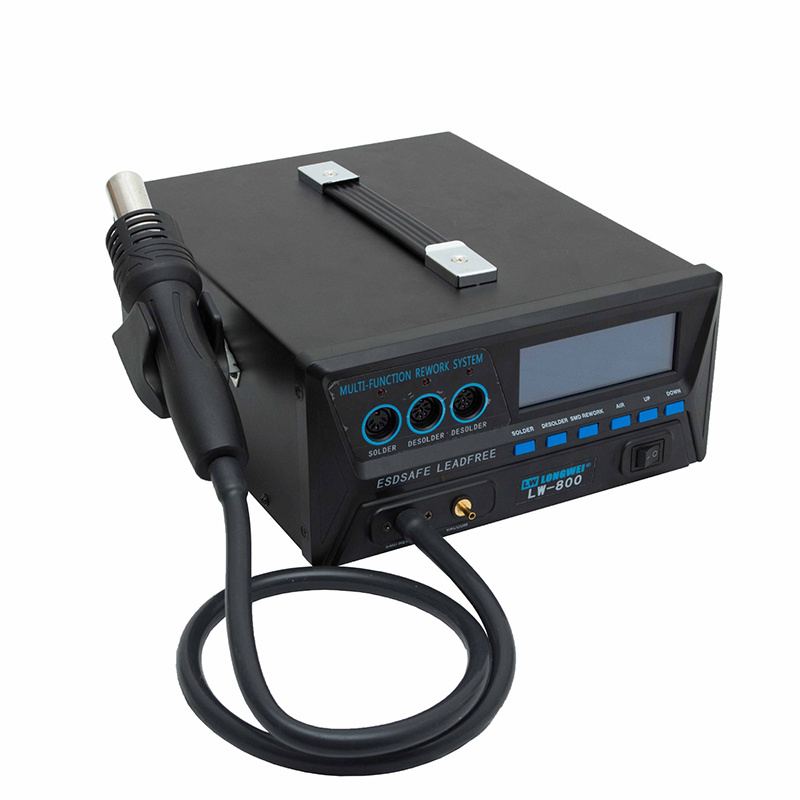

USB 3 in 1 powerful other welding table equipment smd Hot Air Gun SMD hot air solder bga rework Soldering station
Scope of application
1 Industrial production for electronic product assembly
2 Scientific research department for product development
3 Electricians of various enterprises and institutions conduct soldering operations
4 Teaching practice
5 Maintenance industry for electronic product overhaul
6 monad tech hobbyists for electronics assembly
Features:
1 Adopt high-precision MCU control, synchronously detect 3 tool channels, can be used independently, operate synchronously, and do not interfere with each other.
2 Using high-definition LCD with backlight large LCD screen, visual process control, easy for users to operate.
3. The software automatically calibrates the temperature, which is more accurate and more comprehensive.
4 with fault display alarm function.
5 The product has functions such as hibernation, buzzer sound, temperature lock, and factory reset.
Welding station:
1 The soldering station is made of silver alloy thermal conductive material, heat conduction method, extremely high temperature return speed, it only takes 10 seconds to start the machine from room temperature to 350 °C.
2 The soldering iron head and the heating core are designed separately, which saves the cost of use.
3 The sensor is in front, with high temperature control accuracy and good temperature stability.
4 Welded handles are lightweight and comfortable to use.
Soldering station:
1 The heating core of the soldering station adopts 36VAC low-voltage power supply and the main power supply is isolated by transformer, which is safe and reliable.
2 Built-in vacuum pump, strong suction.
Hot air desoldering station:
1 Intelligent cooling system, which can automatically delay air supply when shutting down, greatly extending the service life of the heating core and handle.
2 The use of spiral heating core, the service life is longer.
3 The handle parts of the hot air gun are redesigned, the air volume blown out is more uniform, and it is not easy to be damaged, which is convenient for maintenance and storage and transportation.
Specification
|
Machine power
|
800W（Max）
|
|
|
||
|
Noise
|
<52Db(A)
|
|
|
||
|
Working temperature
|
0℃~40℃
|
|
|
||
|
Type：(3 in 1 )
|
Hot Air Gun
|
Soldering Iron
|
Suction tin
|
||
|
Watt
|
550w
|
90w
|
90w
|
||
|
Temperature range
|
100℃~500℃
|
100℃~500℃
|
300℃~500℃
|
||
|
School tem range
|
±50℃
|
±50℃
|
±50℃
|
||
|
Temperature stability
|
±5℃
|
±2℃
|
±2℃
|
||
|
Heater voltage
|
--
|
24VAC
|
--
|
||
|
Tip over the ground impedance
|
--
|
<2Ω
|
--
|
||
|
Tip of reactance
|
--
|
<2mV
|
--
|
||
|
Suction nozzle ground impedance
|
--
|
--
|
<2Ω
|
||
|
Suction nozzle reactance
|
--
|
--
|
<2mV
|
||
|
Vacuum pressure
|
--
|
--
|
600mmHg
|
||
|
Tin suction pump
|
--
|
--
|
diaphragm
|
||
|
Max air flow
|
23L/min
|
--
|
--
|
||
|
Air gear
|
020~99gear
|
--
|
--
|
||
|
Air supply type
|
Diaphragm chamber air pump
|
--
|
--
|
||
|
Dormancy
|
--
|
1-99min can be set
|
1-99min
|
||
|
Packing size&N.W.
|
48.5×39.3×26（cm）/11KG
|
|
|
||
|
Packing list
|
1machine+1hot air gun+1soldering iron+1suction tin+4round nozzles+user manual+power line
|
|
|
||
