Quick Details
-
Weight:
-
187 KG
-
Dimension(L*W*H):
-
136*86*117cm
-
Warranty of core components:
-
1 YEAR
-
Product name:
-
Cultivator
-
Color:
-
Customer's Requirements
-
Model:
-
125
-
Number of blades:
-
28
-
Blade model:
-
225
-
Suitable hp:
-
25-35
-
Certification:
-
CE
Quick Details
-
Use:
-
Tracor
-
Place of Origin:
-
China
-
Brand Name:
-
Jiangsu
-
Weight:
-
187 KG
-
Dimension(L*W*H):
-
136*86*117cm
-
Warranty of core components:
-
1 YEAR
-
Product name:
-
Cultivator
-
Color:
-
Customer's Requirements
-
Model:
-
125
-
Number of blades:
-
28
-
Blade model:
-
225
-
Suitable hp:
-
25-35
-
Certification:
-
CE
Product Description

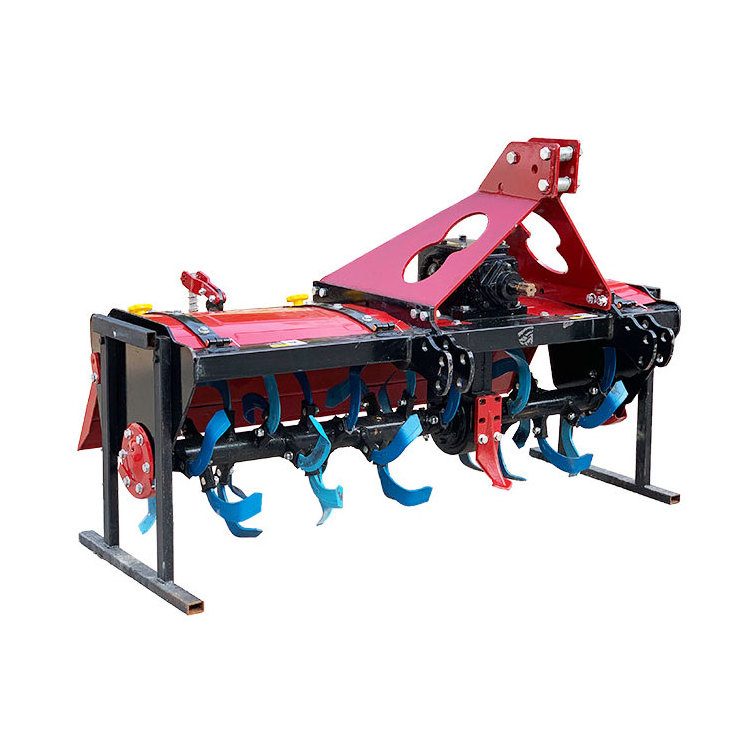

Rotary Cultivator
is suitable for dry and paddy fields. It is a tillage machine that is matched with a tractor to complete tillage and harrow operations. Because of its strong soil crushing ability and flat surface after ploughing, it has been widely used; at the same time, it can cut the root stubble buried below the surface, which is convenient for the operation of the planter and provides a good seed bed for later planting.
RAY cultivator
is any of several types of farm implement used for secondary tillage. It designed for breaking up and pulverizing soil, mixing compost or other materials into existing soil, and stabilizing and leveling existing terrain in landscape finish applications.
Tractor Rotary Tiller
Skid Steer Rotary Tiller
Specification
Tractor Rotary Tiller Specification
|
Model
|
Box
|
width（m）
|
Number of blades
|
Blade model
|
Suitable hp
|
weight(kg)
|
|
size(mm)
|
|
|
|
|
|
|
|
|
Common
|
Enhanced
|
|
|
|
110
|
125box
|
1.2
|
24
|
225
|
25-35
|
|
|
1200*860*1170
|
|
|
110
|
150box
|
1.2
|
24
|
225
|
30-50
|
|
|
1200*860*1170
|
|
|
125
|
125box
|
1.36
|
28
|
225
|
25-35
|
187
|
214
|
1360*860*1170
|
|
|
140
|
125box
|
1.49
|
32
|
225
|
25-35
|
194
|
221
|
1490*860*1170
|
|
|
140
|
150box
|
1.49
|
32
|
225
|
30-50
|
227
|
248
|
1490*860*1170
|
|
|
150
|
150box
|
1.59
|
36
|
225
|
30-50
|
235
|
256
|
1590*860*1170
|
|
|
160
|
150box
|
1.69
|
40
|
225
|
30-50
|
243
|
264
|
1690*860*1170
|
|
|
170
|
150box
|
1.79
|
44
|
225
|
30-50
|
251
|
272
|
1790*860*1170
|
|
|
180
|
180box
|
2.01
|
52
|
245
|
50-90
|
336
|
357
|
2010*900*1200
|
|
|
200
|
180box
|
2.21
|
60
|
245
|
50-90
|
347
|
368
|
2210*900*1200
|
|
|
200
|
Medium high box
|
2.21
|
60
|
245
|
90-120
|
|
|
2210*900*1200
|
|
|
230
|
180box
|
2.51
|
68
|
245
|
50-90
|
|
|
2510*900*1200
|
|
|
230
|
Medium high box
|
2.51
|
68
|
245
|
90-120
|
370
|
424
|
2510*900*1200
|
|
|
250
|
Medium high box
|
2.71
|
72
|
245
|
90-120
|
|
|
2710*900*1200
|
|
|
250
|
Extra large box
|
2.71
|
72
|
245
|
130-180
|
|
|
2710*900*1200
|
|
|
300
|
Extra large box
|
3.21
|
80
|
245
|
140-180
|
|
|
3210*1000*1300
|
|
Skid Steer Tractor Rotary Tiller Specification
|
Model
|
Unit
|
RC-72
|
RC-84
|
|
Rotary tillage width
|
mm
|
1200
|
1500
|
|
Working pressure
|
mpa
|
16
|
16
|
|
Flow
|
L/min
|
50-100
|
50-100
|
|
Weight
|
kg
|
520
|
650
|
|
Width
|
mm
|
1400
|
1840
|
|
Height
|
mm
|
510
|
510
|
Note:
1. At the beginning of the operation, the rotary cultivator should be in the lifting state, firstly combine the power output shaft to increase the speed of the cutter shaft to the rated speed, and then lower the rotary cultivator to make the blades gradually into the soil to the required depth. It is strictly forbidden to combine the power output shaft or descend the rotary cultivator sharply after the blade enters the soil to avoid bending or breaking the blade and increasing the load on the tractor.
2. During the operation, the speed should be as low as possible, so that the quality of the operation can be ensured, the soil can be finely broken, and the wear of the mechanical parts can be reduced. Pay attention to whether there are noises or metal percussions from the rotary tiller, and observe the condition of broken soil and tillage depth. If there is any abnormality, the machine should be shut down immediately for inspection, and the operation can be continued after troubleshooting.
3. When turning on the ground, work is prohibited. The rotary tiller should be raised to keep the blades off the ground and the tractor throttle should be reduced to avoid damage to the blades. When lifting the rotary tiller, the inclination angle of the universal joint should be less than 30 degrees. If it is too large, impact noise will be generated, which will cause premature wear or damage.
4. When reversing, crossing ridges and transferring plots, the rotary tiller should be raised to the highest position and the power should be cut off to avoid damage to the parts. If it is transferred to a distant place, the rotary tiller must be fixed with a locking device.
5. After each shift, the rotary tiller should be maintained. Remove the dirt and weeds on the blade, check the tightness of each connecting piece, add lubricating oil to each lubricating oil point, and add butter to the universal joint to prevent aggravation of wear.
