Quick Details
-
Model Number:
-
HW-11
-
Type:
-
Position Sensor
-
Work Voltage:
-
12-24V(AC/DC)
-
Consumption current:
-
≤30mA
-
Protection class:
-
IP67
-
Cable Length:
-
270cm
-
Sensing distance:
-
≤8M
-
Weight:
-
392.7g
-
Package:
-
135*93*60mm
Quick Details
-
Use:
-
For barrier gate opener
-
Mounting Type:
-
Fixed
-
Description:
-
Mirror photocell, infrared diffuse reflection
-
Model Number:
-
HW-11
-
Type:
-
Position Sensor
-
Work Voltage:
-
12-24V(AC/DC)
-
Consumption current:
-
≤30mA
-
Protection class:
-
IP67
-
Cable Length:
-
270cm
-
Sensing distance:
-
≤8M
-
Weight:
-
392.7g
-
Package:
-
135*93*60mm
Product Description

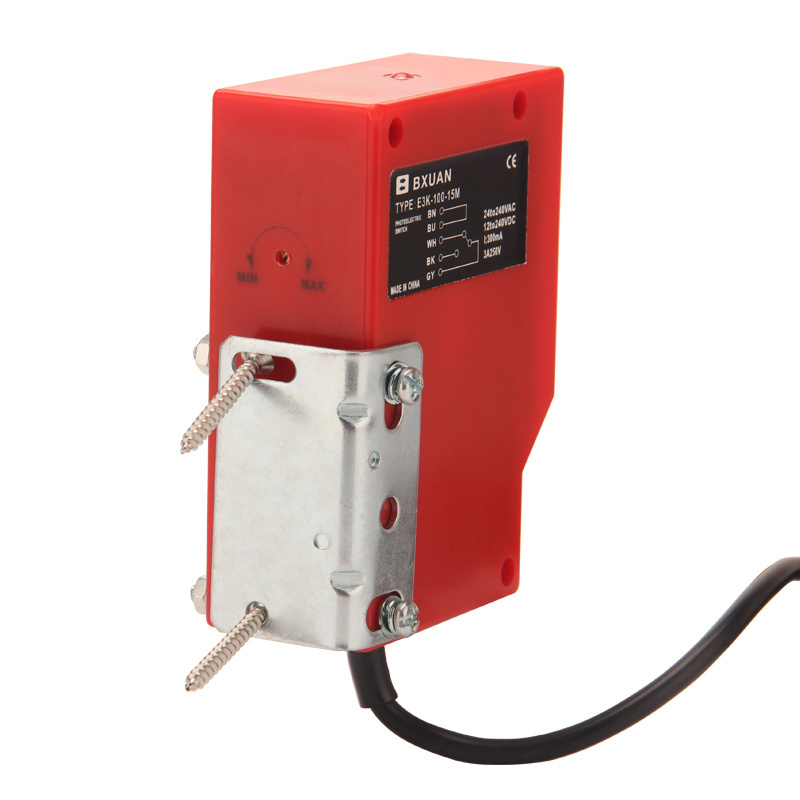

2023 New 12V 24V Automatic Swing Sliding Door Barrier Sensor Diffusion Photocells
Diffuse reflective photoelectric sensor consists of light projector and light receiver in one, can distinguish transparent or
opaque reflective object.Infrared photoelectric sensor can be compensated for longer distance with sensitivity controller,
less susceptible to interference, fast reaction, long life, high resolution and high reliability
opaque reflective object.Infrared photoelectric sensor can be compensated for longer distance with sensitivity controller,
less susceptible to interference, fast reaction, long life, high resolution and high reliability
The diffuse reflection sensor detects objects and materials without contact and indicates their presence by a switching signal.
Sensing distance adjustment:
By adjusting the knob on the product, it is possible to adjust the sensing distance. Rotate the knob clockwise to increase
the sensing distance, and counterclockwise to decrease the sensing distance.
By adjusting the knob on the product, it is possible to adjust the sensing distance. Rotate the knob clockwise to increase
the sensing distance, and counterclockwise to decrease the sensing distance.
Important note:
1. Power supply voltage, please use the rated power supply voltage range within ± 15%.
2. Under the rated power supply voltage, there is an error of ± 10% in the detection distance.
3. Pure black obstacles may cause a shorter detection distance, which is a normal phenomenon.
1. Power supply voltage, please use the rated power supply voltage range within ± 15%.
2. Under the rated power supply voltage, there is an error of ± 10% in the detection distance.
3. Pure black obstacles may cause a shorter detection distance, which is a normal phenomenon.
