Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
E-DO/OEM/ODM
-
Dimension(L*W*H):
-
custom made
-
Weight:
-
210
-
Material:
-
304(optional)
-
Type:
-
rectangular
-
Certificate:
-
UN; ISO 9001
-
Payment:
-
T/T
-
OEM:
-
Yes
-
Treatment:
-
2B finish
Quick Details
-
Capacity:
-
500-3000Liter, 500-3000Liters
-
Max Working Pressure(MPa):
-
0 MPa
-
Core Components:
-
welding
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
E-DO/OEM/ODM
-
Dimension(L*W*H):
-
custom made
-
Weight:
-
210
-
Material:
-
304(optional)
-
Type:
-
rectangular
-
Certificate:
-
UN; ISO 9001
-
Payment:
-
T/T
-
OEM:
-
Yes
-
Treatment:
-
2B finish
ODM and OEM are welcome !
We can produce different kinds of tanks as your need !
Welcom to your inquiry

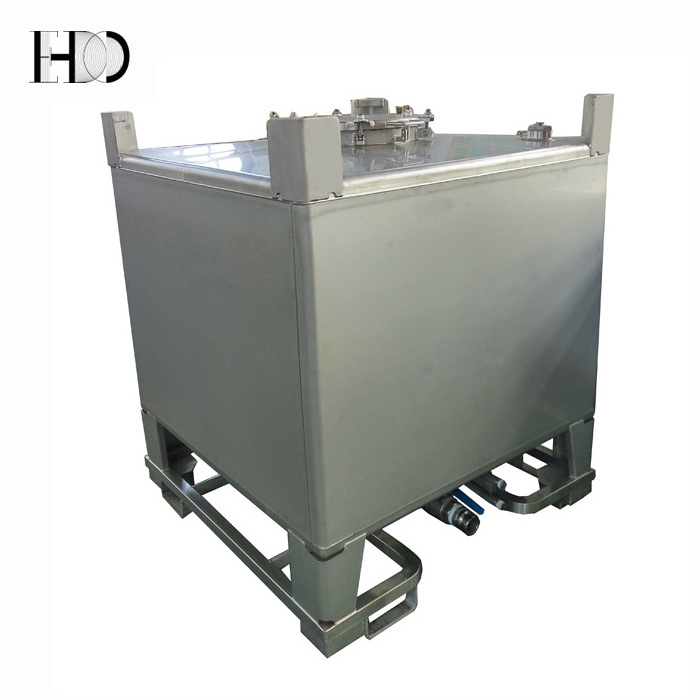

A n intermediate bulk container is a large vessel that is used to store fluid and bulk materials or transport them. IBC’s can be manufactured from many different materials such as stainless steel, aluminum, mild steel, and exotic alloys.
I ntermediate bulk containers (IBCs) are an ideal alternative between a drum and a tanker to transport or store fluid and bulk materials.
| Technical Specification | |||
| Tank Type: | IBC Tank | ||
| Dimention L x W x H : | 1150*1150*1380mm | ||
| Capacity: | 1300 Litres | ||
| M.G.W.: | 1619 kg | ||
| Tare Weight(est.): | 319 kg | ||
| Max Payload: | 1300 kg | ||
| Working Pressure: | 0.2 bar | ||
| Test Pressure: | 0.2 bar | ||
| Tank Material: | SS 304 | ||
| Norminal Thickness: | Shell, 2.5 mm | ||
| IBC Design Code: | IMDG UN 31A/Y | ||
| Cargo carried: | See dangerous cargo lists for UN 31A/Y | ||
| Stacking: | Three high when empty, two high when full loading | ||
| Design Approvals: | IMDG UN 31A/Y | ||
| Fittings and Accessories: | |||
| 1. Manway Assembly |
Manhole DN492 with 6 swing bolts
Gasket: EPDM+PTFE |
||
| 2. Safety Valve | 1" BSP | ||
| 3. Air Valve | 1 1/2" BSP Female thread hex plugs | ||
| 4. Vent | 1" camlock | ||
| 5.Drain Valve | 2" BSP | ||
| 6. Lifting Lug | Four lifting lugs on top end of the container | ||
| 7.ForklifT Pocket | Four entries | ||
| 8.UN Plate | 1 off on the top of the container | ||
| 9. Steam Heating System | Bottom end with steam heating system 0,45 sqm with 2 x 1/2" BSP connections (inlet / outlet) | ||
| 10.Decal | Mandatory markings supplied and fitted | ||
| 11.Internal Finish | 2B finish | ||
| 12.External Finish | 2B finish | ||
The intermediate bulk container or IBC tote tank will be tested according to IMDG chapter 6.5 on metallic IBC. UN certification(UN31A, UN11A, etc) is available unpon request.
All of our tanks will be tested before delivery to insure customer received a perfect performance IBC tank.
Our normal test including pressure test, stacking test, top&bottom lifting test, etc.
We will design the best way to pack your products and make sure no damage during transportation.
Over last two decades developing, our customer is all over the world, most of them are leaders in the industry. Work with us, you are working with partner of top rated companis in the world, enjoy the successful selection of suppliers.
Why are you so much cheaper than your competitors?
Seriously, we are asked this question all the time. The answer: we are manufacturing and trading combo.We sell direct to the customer. No distributors. No middlemen. Also, we keep overheads down -- no marble foyers, no fancypants administrative assistants, no sales reps in flash cars with nothing to do. We price the products accordingly
Do you accept OEM/ODM?
Yes, we welcome ODM and OEM require.We have strong engineer and production team who will ensure you to have the top rated products!
Our factory was established in 1992, and is the very first manufacturer of stainless steel IBCs (Intermediate Bulk Container) in China. Also, we have full experiences in metal fabrication, sheet metal, etc. Strong Engineer and production team will ensure to offer you top design and quality products. Our facility is ISO9001 certified, and has the most exprienced welders in the industry.
Our facility is qualified with ISO9001, all of our products are produced there.
For IBC ( Intermediate Bulk Container) products, UN certificates are available upon request.
Material certificates are available for all products.
