Quick Details
-
Warranty:
-
30years, 30Years
-
Brand Name:
-
JA Solar
-
Model Number:
-
JAM66D42 MB 570-595W
-
Place of Origin:
-
Beijing, China
-
Panel Dimensions:
-
2278+2mm*1134+2mm*30±1mm
-
Product name:
-
Solar Power Panel
-
Brand:
-
Ja Solar
-
Series:
-
Deep Blue 4.0
-
No. of cells:
-
132
-
Front Glass/Back Glass:
-
2.0mm/2.0mm
-
Junction Box:
-
IP68, 3 diodes
-
Packaging Configuration:
-
36pcs/Pallet,720pcs/40HQ Container
-
Connector:
-
OC 4.10-351/MC4-EVO2A
Quick Details
-
Cell size:
-
182mm
-
Type:
-
Half Cell, Bifacial, Double-glass, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.1%-23.0%
-
Warranty:
-
30years, 30Years
-
Brand Name:
-
JA Solar
-
Model Number:
-
JAM66D42 MB 570-595W
-
Place of Origin:
-
Beijing, China
-
Panel Dimensions:
-
2278+2mm*1134+2mm*30±1mm
-
Product name:
-
Solar Power Panel
-
Brand:
-
Ja Solar
-
Series:
-
Deep Blue 4.0
-
No. of cells:
-
132
-
Front Glass/Back Glass:
-
2.0mm/2.0mm
-
Junction Box:
-
IP68, 3 diodes
-
Packaging Configuration:
-
36pcs/Pallet,720pcs/40HQ Container
-
Connector:
-
OC 4.10-351/MC4-EVO2A

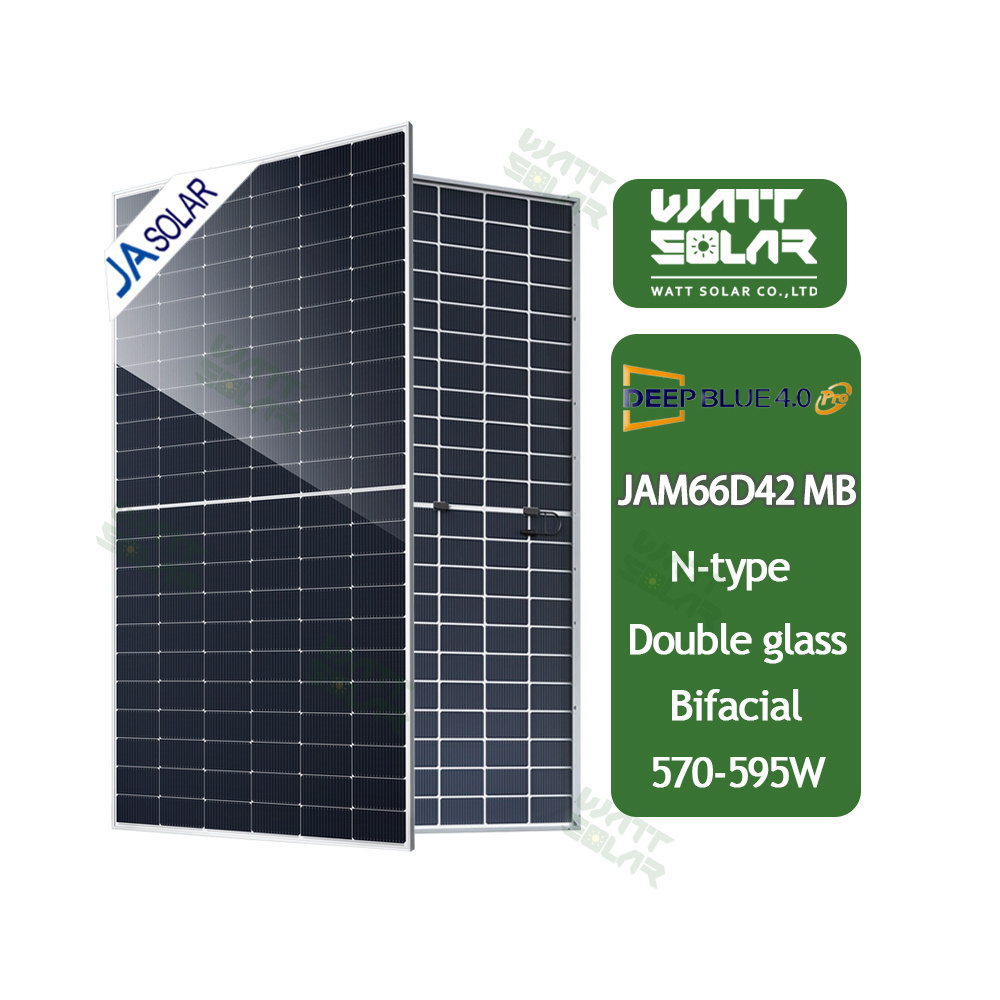

Overview
JAM66D42 MB 570~595
W
---N Type & Double Glass & Bifacial
The Levelized Cost of Electricity (LCOE) serves as a pivotal gauge of customer value. Modules boasting high power, efficiency, generation capacity, and reliability offer superior value, optimizing revenues. DeepBlue 4.0 Pro series modules, a novel addition to n-type PV products, are ideally suited for diverse application scenarios. They offer unparalleled value, epitomizing our product design philosophy: “DeepBlue - Tailored to Increase Customer Value”.
Product Paramenters
|
Quick Data(Electrical Data at STC)
|
|
|
|
|
|
|
||||||
|
Model
|
JAM66D42-570/MB
|
JAM66D42-575/MB
|
JAM66D42-580/MB
|
JAM66D42-585/MB
|
JAM66D42-590/MB
|
JAM66D42-595/MB
|
||||||
|
Maximum Power (Pmax)
|
570W
|
575W
|
580W
|
585W
|
590W
|
595W
|
||||||
|
No.of cells
|
132
|
|
|
|
|
|
||||||
|
Open Circuit Voltage (Voc)
|
47.78V
|
47.98V
|
48.18V
|
48.38V
|
48.58V
|
48.78V
|
||||||
|
Voltage at Maximum Power (Vmp)
|
40.00V
|
40.21V
|
40.42V
|
40.63V
|
40.84V
|
41.03V
|
||||||
|
Short Circuit Current (Isc)
|
15.11A
|
15.16A
|
15.21A
|
15.26A
|
15.31A
|
15.36A
|
||||||
|
Current at Maximum Power (Imp)
|
14.25 A
|
14.30A
|
14.35A
|
14.40A
|
14.45A
|
14.50A
|
||||||
|
Module Efficiency(%)
|
22.1
|
22.3
|
22.5
|
22.6
|
22.8
|
23.0
|
||||||
|
Dimension (H/W/D)
|
2278±2mm×1134±2mm×30±1mm
|
|
|
|
|
|
||||||
|
Weight
|
31.8KG
|
|
|
|
|
|
||||||
|
Packing
|
36pcs/Pallet,720pcs/40HQ Container
|
|
|
|
|
|
||||||
Details Images
Advantages
What Is It's Core Technonoly?
The DeepBlue 4.0 Pro modules are distinguished by their integration of four pivotal technologies:
Bycium+ high-efficiency cell technology, advanced efficiency & reliability encapsulation methods, high-density
encapsulation techniques, and the innovative rectangular silicon wafer technology.
1.
Bycium+ high-efficiency cell technology
The Bycium+ cell stands as JA Solar's signature high-efficiency n-type passivated contact cell. Built upon millisecond-level low-oxygen n-type wafer technology, it incorporates optimized passivation, contact technologies, ultra-thin busbar metallization Laser-enhanced contact optimization, and a double-sided anti-reflection film. The cell boasts a Voc reaching up to
733mV
, with a mass production efficiency that can hit 26%.
2. Advanced efficiency & reliability encapsulation methods.
3. High-density encapsulation techniques.
4. Rectangular silicon wafer technology:
These rectangular wafers, besides fitting the bill for heightened power and reliability, offer other distinct advantages. Firstly, they allow for more power within a manageable module size, effectively cutting the BOS project cost. Secondly, the 182mm-wide rectangular wafers retain the optimal 1134mm module width from 2020, enhancing safety and reducing costs. A
key benefit of this 1134mm width is the double-layer stacking in shipping containers, optimizing space and decreasing logistics
costs. This packaging approach, with its lower center of gravity, also promotes safer handling at project sites.
key benefit of this 1134mm width is the double-layer stacking in shipping containers, optimizing space and decreasing logistics
costs. This packaging approach, with its lower center of gravity, also promotes safer handling at project sites.
What Are The Product advantages?
1. Lower degradation and longer warranty and lifespan :
The n-type wafers' inherent advantages, devoid of B-O complex, ensure reduced power degradation compared to the traditional p-type PERC cell. JA Solar commits to the product's longevity with a 30-year linear power output warranty, guaranteeing less than 1% degradation in its inaugural year, followed by an annual degradation rate of under 0.4% thereafter.
2.
Superior high temperature energy yieldperformance:
H
igher cell open voltage means a better theoretical temperature coefficient. The open-circuit voltage of an n-type Bycium+ cell can reach720mv, with a temperature coefficient of -0.3%/c, while p-type PERCis -0.35%/C. During hot weather days, assuming module operatingtemperature is 55℃ (ambient temperature 30'c), n-type module
powerdegradation loss is 1.5% lower than a p-type module in similar hightemperature conditions. With module operating temperature continuallyincreasing, the high temperature performance of an n-type modulewill be significantly better.
3. Higher bifacial generation gain:
Regarding bifacial generation performance, the n-type module has80% bifaciality, which is much higher than the 70% of p-type PERC modules.
4. Excellent low irradiance energy yieldperformance:
DeepBlue 4.0 Pro's performance in low irradiance conditions is a testament to its advanced design. Three primary factors
underscore its efficiency:
Minority Carrier Lifetime: Enhanced in DeepBlue 4.0 Pro, a longer lifetime means better efficiency.
Open-Circuit Voltage (Voc): The module's higher Voc, thanks to Bycium+ cells, ensures optimal power generation even under subdued sunlight.
Sheet Resistance: Optimized in this module, lower resistance translates to efficient electricity conversion.
underscore its efficiency:
Minority Carrier Lifetime: Enhanced in DeepBlue 4.0 Pro, a longer lifetime means better efficiency.
Open-Circuit Voltage (Voc): The module's higher Voc, thanks to Bycium+ cells, ensures optimal power generation even under subdued sunlight.
Sheet Resistance: Optimized in this module, lower resistance translates to efficient electricity conversion.
Packing & Delivery
Project Cases
In the Dominica
5KW Off-Grid Solar System
In the Netherlands
10KW Hybrid Solar System
Hefei city, China
2MW On Grid Solar System
In Italy
23Sets
of Complete 10KW Hybrid Solar System With Batteries
In Poland
12KW & 8KW On Grid Solar System
Hefei City, China( on our building roof)
75KW In Total, 5KW Off-Grid+ 10KW On Grid +20KW On Grid +10KW Hybrid+20KW Hybrid
