Hot sales NEMA L5-15 15A 125V Locking Receptacle featuring Outdoor events for Preventing unauthorized access
Hot sales NEMA L5-15 15A 125V Locking Receptacle featuring Outdoor events for Preventing unauthorized access
Hot sales NEMA L5-15 15A 125V Locking Receptacle featuring Outdoor events for Preventing unauthorized access
Hot sales NEMA L5-15 15A 125V Locking Receptacle featuring Outdoor events for Preventing unauthorized access
Hot sales NEMA L5-15 15A 125V Locking Receptacle featuring Outdoor events for Preventing unauthorized access
Hot sales NEMA L5-15 15A 125V Locking Receptacle featuring Outdoor events for Preventing unauthorized access
Hot sales NEMA L5-15 15A 125V Locking Receptacle featuring Outdoor events for Preventing unauthorized access
Hot sales NEMA L5-15 15A 125V Locking Receptacle featuring Outdoor events for Preventing unauthorized access

Hot sales NEMA L5-15 15A 125V Locking Receptacle featuring Outdoor events for Preventing unauthorized access

FOB Reference Price: Get Latest Price
≥200 Pieces
US $2.5
≥600 Pieces
US $2.4
≥2000 Pieces
US $2.3
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

WIFI:
NO
Network:
NONE
Customized support:
NONE
Place of Origin:
Taiwan, China
Brand Name:
Rong Kuang
Model Number:
J-702
Approval:
cUL REACH
Material:
Nylon
Warranty:
Other
Certification:
cUL, PSE, RoHS, REACH

Quick Details

Rated Voltage:
125
Rated Current:
15
Application:
Industrial
WIFI:
NO
Network:
NONE
Customized support:
NONE
Place of Origin:
Taiwan, China
Brand Name:
Rong Kuang
Model Number:
J-702
Approval:
cUL REACH
Material:
Nylon
Warranty:
Other
Certification:
cUL, PSE, RoHS, REACH

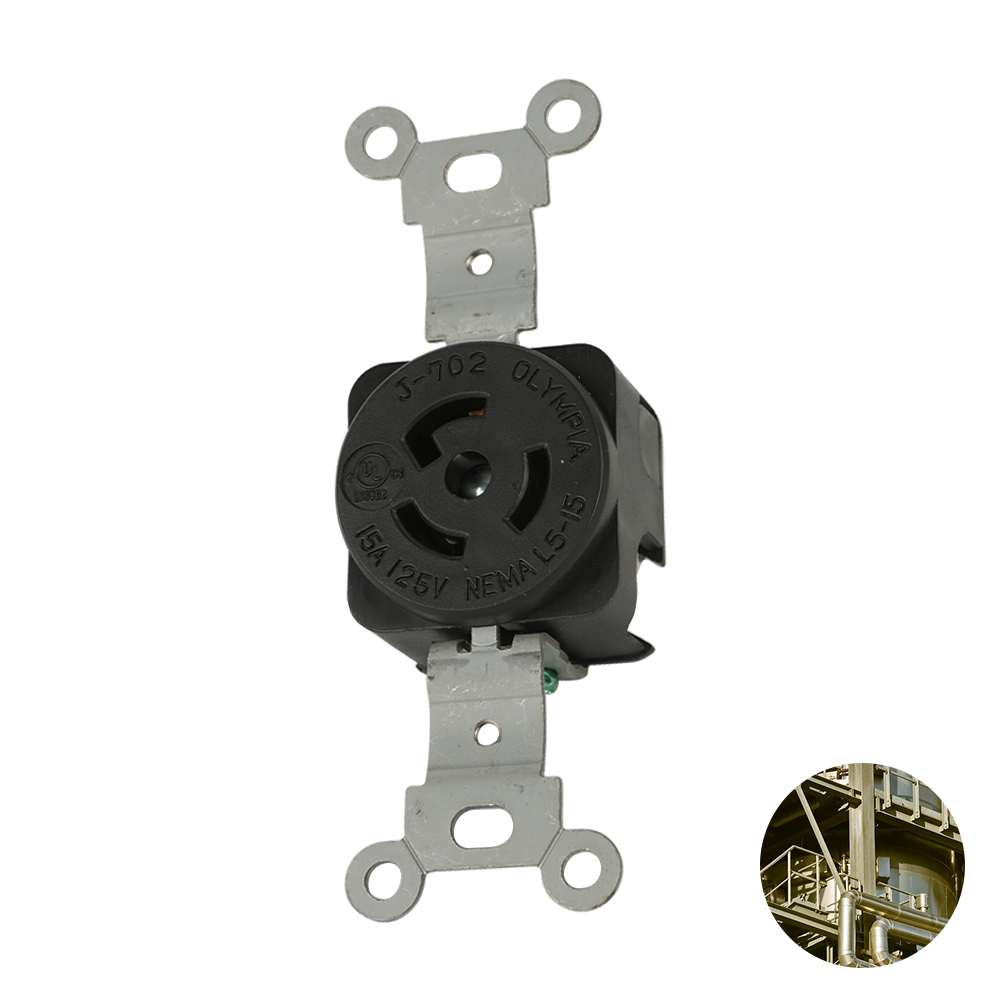

15A125V Locking Receptacle NEMA L5-15R
NEMA: L5-15R
Color: Black
AC Horsepower Ratings
At Rated Voltage: 1/2 HP
Electrical Specifications
Grounding: Grounding
Amperage: 15 Amp
Voltage: 125 Volt
NEMA: L5-15R
Pole: 2
Wire: 3
Dielectric Voltage: Withstands 2000V per UL498
Current Limiting: Full Rated Current
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Environmental Specifications
Flammability: Rated V-2 per UL94
Operating Temperature: -40C to 60C
Material Specifications
Face Material: Nylon
Body Material: Nylon
Line Contacts: Brass .031 Thick
Terminal Screws: Brass 10-32
Grounding Screw: Brass 8-32
Yoke: Zinc-Plated Steel
Strap Material: Steel
Color: Black
Mechanical Specifications
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 18-10 AWG
Product ID: Ratings and NEMA I.D. permanently marked on device
Termination: Back & Side
Standards and Certifications
UL498: File E158723
NOM:

APP
