The feeding part adopts mechanical rubber-wheel paper feeding structure, which can feeding paper in any size and specification
without adjust in addition. The machine adopts chain drive to guarantee smooth running,hard-wearing.the chain drive of every unit are separated to reduce noise and workload, increase the stability ,The transmission width can be adjusted by the screw rod easily
and conveniently.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
1500 kg
-
Name:
-
carton forming machine lunch burger packing box making machine
-
Keyword:
-
box forming machine
-
Color:
-
Customized Color
-
Automation:
-
Fully Atuomatic
-
Advantage:
-
High Effiency
-
Usage:
-
Making Paper Plate Dish Tray
-
Feature:
-
Easy Opreation
-
After-sales Service:
-
Provided
-
Final product:
-
paper box
-
Machine for:
-
paper box forming machine
Quick Details
-
Production Capacity:
-
180 pcs/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DEPAI
-
Weight:
-
1500 kg
-
Name:
-
carton forming machine lunch burger packing box making machine
-
Keyword:
-
box forming machine
-
Color:
-
Customized Color
-
Automation:
-
Fully Atuomatic
-
Advantage:
-
High Effiency
-
Usage:
-
Making Paper Plate Dish Tray
-
Feature:
-
Easy Opreation
-
After-sales Service:
-
Provided
-
Final product:
-
paper box
-
Machine for:
-
paper box forming machine
Product Description

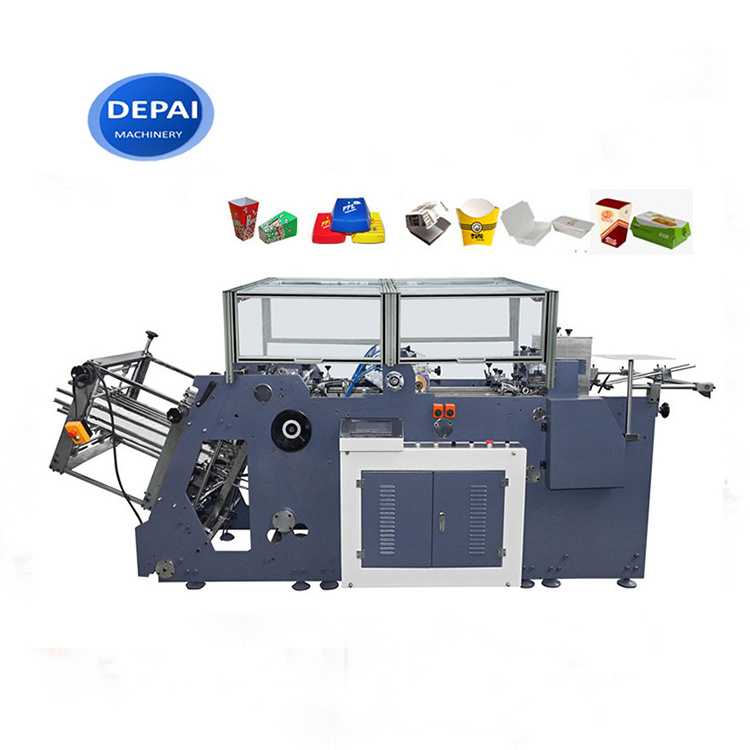

The paper box forming machine
is a kind of forming equipment that specializes in the production of paper products. It can produce hamburger boxes, square boxes, French fries boxes, food boxes (can be taken outside) and other boxes made of cardboard and corrugated paper. The machine adopts PLC intelligent control system, which can automatically collect, stack, and count the number of products. It will automatically stop when there is no paper in the jam, and the operation is safe and simple.
Specification
|
Box Length
|
L100-450mm
|
|
Box Angles
|
5°- 40°
|
|
Box Width
|
B100-580/385mm
|
|
Edge banding height
|
H 15-200mm
|
|
Occupancy of machine
|
1.2m*4m
|
|
Product speed
|
Max 180pcs/min
|
|
Bonding/Gluing device
|
Water-based adhesive
|
|
Paper thickness
|
Max 1.5mm
|
|
Electrical requirement
|
3kw/h
|
|
Air requirement
|
6kg/cm²*200L/min
|
|
Equipment size
|
3.48m*1.32m*1.5m
|
|
G.W.
|
1.5T
|
|
Package measurements
|
3.55m*1.35m*1.7m （L*W*H)
|
Features
1. Pay attention to details, the whole machine is screwed in stainless steel, and the baffle is added.
2. Full machine private server, low noise, high environmental protection.
3. It can be installed with a label inserting machine, which is convenient for counting the number of cartons.
4. It can be equipped with automatic glue dispensing device, which is more convenient and quick, without cleaning the glue box.
5. Fixed molding head, quick and easy to change mold, saving time and effort.
6. The whole process of carton forming has optical eye tracking, fault shutdown monitoring system, automatic shutdown when paper jam or no paper, reducing cost and consumption
Machine Details
Paper Feeding
Gluing
Use water-based adhesive coat the roller by foam, and apply on the paper glue position.
Forming device and box collector
The mold height is adjustable and can be made into various specifications and shapes, such as the taper box and flapped hamburger
box etc.Automatic counter can be set mark 100/200pcs one time for paper box subgroup packing.
Mould
Samples
