Quick Details
-
Engine Brand:
-
CHANGCHAI
-
Travel Speed:
-
0-5 km/h
-
Grade Ability:
-
30°
-
Place of Origin:
-
China
-
Brand Name:
-
YG/OEM
-
Dimension(L*W*H):
-
2100*1000*1650 mm
-
Drum diameter:
-
540 mm
-
Marketing Type:
-
Hot Product
-
Product name:
-
Road roller vibrator
-
Style:
-
High cost-effective
-
Vibration frequency:
-
70HZ
-
Drum size:
-
426*600mm
-
Water tank capacity:
-
15L
-
Oil tank capacity:
-
3.6L
-
Size:
-
1050*900*1200mm
-
After Warranty Service:
-
Online support, Video technical support
-
Local Service Location:
-
None
-
Certification:
-
ISO,CE
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
7.5 KW
-
Weight:
-
1 Ton
-
Engine Brand:
-
CHANGCHAI
-
Travel Speed:
-
0-5 km/h
-
Grade Ability:
-
30°
-
Place of Origin:
-
China
-
Brand Name:
-
YG/OEM
-
Dimension(L*W*H):
-
2100*1000*1650 mm
-
Drum diameter:
-
540 mm
-
Marketing Type:
-
Hot Product
-
Product name:
-
Road roller vibrator
-
Style:
-
High cost-effective
-
Vibration frequency:
-
70HZ
-
Drum size:
-
426*600mm
-
Water tank capacity:
-
15L
-
Oil tank capacity:
-
3.6L
-
Size:
-
1050*900*1200mm
-
After Warranty Service:
-
Online support, Video technical support
-
Local Service Location:
-
None
-
Certification:
-
ISO,CE

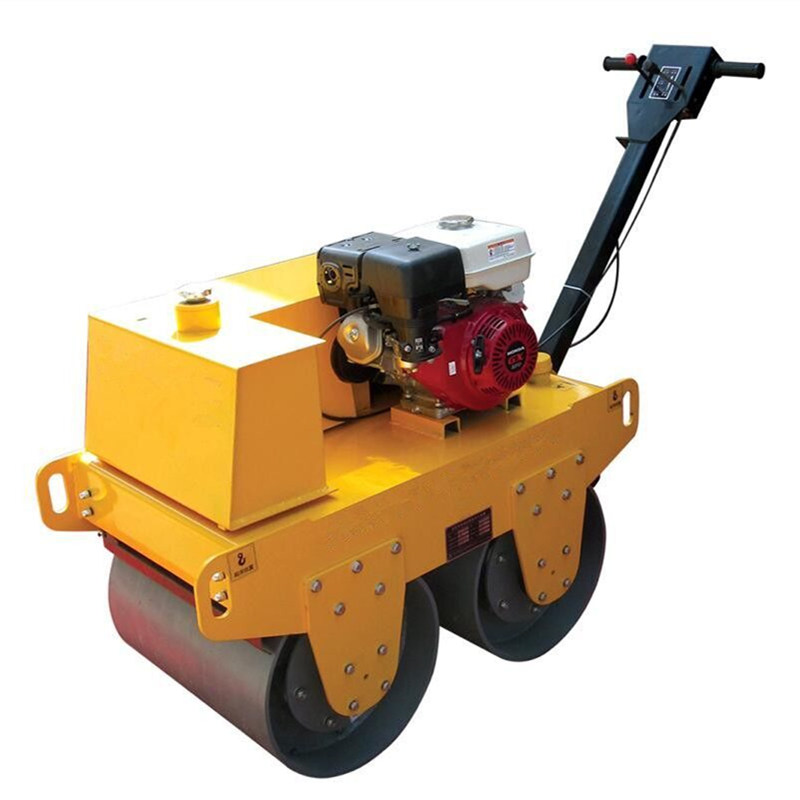

Description Of Road Roller
Yugong's high grade and high standard choice of critical parts of the roller (including engine, drive parts, and hydraulic parts) guarantees the performance and reliability of the product. The professional design on the static linear pressure, vibration amplitude, and vibration frequency and the appropriate speed and gradeability performance realize maximum working efficiency while providing high compacting performance.Finally, it has the extra-added touch of having a very attractive design flow to its outward appearance.
Features of Road Roller
Engine
The standard Weichai WP series turbocharged diesel engine features outstanding performance, high reliability, high fuel economy, and strong power output, which can maintain the whole machine at optimal compacting status, guaranteeing construction quality.
The optional Cummins B series engine features reasonable strength, compact and simple structure, less types and numbers of parts, light weight, and high efficiency.
Vibratory Drum
The professional design and manufacturing guarantee outstanding compacting performance, meeting the construction requirements of various work sites, and features easy service and maintenance.
Vibratory Hydraulic System
The use of hydraulics from renowned brands provides double-frequency and double amplitude compacting performance of the equipment while ensuring high reliability.
Technical Parameter Of Road Roller
|
Model |
600s |
600D |
850 |
880 |
|
Motor power |
5.5HP |
5.5/9.0KW |
6.5 KW (4.8hp) |
6.6 KW |
|
Speed |
2.4km/h |
0-4km/h |
0-4km/h |
0-5km/h |
|
Drive |
Hydraulic |
Hydraulic |
Sauer Hydraulic |
Hydraulic |
|
Walking way |
Drive/ reverse |
Drive/ reverse |
Drive/ reverse |
Drive/reverse |
|
Wheel size (front/ rear) |
426*600mm |
426*600mm |
580*700mm |
740*800mm |
|
Vibration force |
20KN |
20KN |
20KN |
30KN |
|
Climbing ability |
25% |
30% |
30% |
30% |
|
Capacity |
350kg |
550kg |
750kg |
1T |
|
Dimension |
1050*900*1200 |
1050*900*1200 |
1150*850*1100 |
/ |
Details of Road Roller
Packaging Details
1. Out package: Standard marine export plwywood cases;
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Delivery Time
Within one week
Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
1. Reply within 24 hours, professional answers.
2. We provide free video guidance and telephone guidance.
3. During the warranty period, any quality appears, we refund it for free.
