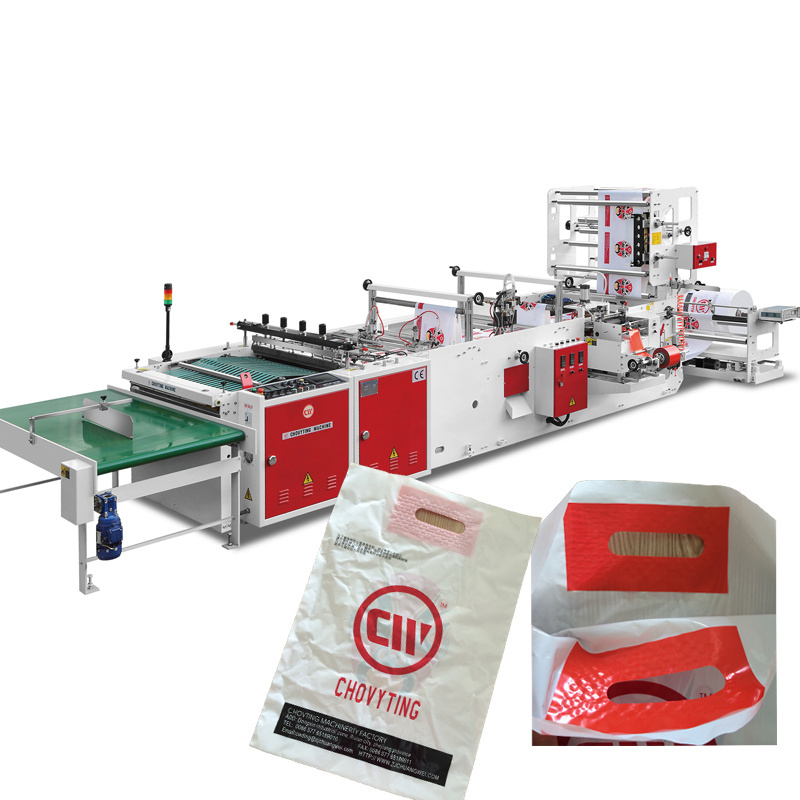

800SP Japan Servo Motor Driven Professional Plastic Bag Forming Machine For Patch handle shopping Bag making machine

800SP Japan Servo Motor Driven Professional Plastic Bag Forming Machine For Patch handle shopping Bag making machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $30000

≥10 Sets

US $28000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: CHOVYTING

Model Number:: CW-800SP

Voltage:: 220V,380V

Dimension(L*W*H):: 14000x1900x2850mm

Weight:: 4000 KG

SERVO MOTOR DRIVEN:: JAPAN YASKAWA BRAND

Speed of bag making:: 130pcs/min

Certification:: CE,ISO9001

Quick Details

Machine Type:: SEALING MACHINE

Bag Type:: Glue inside patch bag

Material:: Plastic

Place of Origin:: Zhejiang, China

Brand Name:: CHOVYTING

Model Number:: CW-800SP

Voltage:: 220V,380V

Dimension(L*W*H):: 14000x1900x2850mm

Weight:: 4000 KG

SERVO MOTOR DRIVEN:: JAPAN YASKAWA BRAND

Speed of bag making:: 130pcs/min

Certification:: CE,ISO9001

Product Description

CW-800ZD multi functional polypropylene bag making machine manufacturer

l Brief introduction:
This machine has four functions (soft loop handle bag, patch handle bag, poly draw handle bag, and die cut handle bag). It is coupled with machinery, light, electronic and pneumatic.

l Feature:
1. Flexible soft loop handle and patch film feeding system, fully automatic (PATENT)
2. Pre-sealing knife, heated on double sides and strong for fusing, to make the bags without deformation
3. The best quality of Italian side sealing knife, Heated to high temperatures not deformation
4.Newly design of sealing knife top lift and turn over system
5.Its designed by heating punching and it's easy to cut off, the waster is excluded automatically.

Model	CW-800ZD	CW-80DLP	CW-800SP	CW-800CSD	CW-800SDP
Length of bag-making（Height of bag）	250-750mm	250-750mm	250-750mm	250-700mm	250-700mm
Width of bag-making	250-600mm	250-800mm	250-800mm	250-800mm	250-600mm
Top-folding edge	50-75mm	50-75mm	50-75mm	50-75mm	50-75mm
Bottom gusset	20-70mm	20-70mm	20-70mm	20-60mm	20-80mm
Speed of bag-making
Soft loop handle bag	60pcs/min	80pcs/min		120pcs/min	100pcs/min
Patch handle bag	60pcs/min		80pcs/min		100pcs/min
Poly draw handle bag	65pcs/min
Die cut handle bag	80pcs/min	80pcs/min	80pcs/min	140pcs/min	120pcs/min
Total power	13KW	10KW	10KW	10KW	18KW
Machine weight	3500kg	3200kg	3200kg	3000kg	3600kg
Machine dimension（LxWxH]	8.2x3.1x1.87m	8.2x3.1x1.87m	8x3.1x1.87m	7x 2.2 x 1.95m	10x2.2x1.95m

Bag Samples

patch hadle bag die cut bag handle poly draw handle bag soft loop handle bag

Details Images

Common unwinding

1. Unwinding adopt common loading , max diameter of raw rolling materialisφ600mm
2. Adopt magnetic powder tension control. Manual adjust the tension.
3. Unwinding shaft is heavy-chainplug axle

Top-folding continuously sealing device

1. Top-folding continuously sealing, the width size of bag not be limited,
2. Inside heating wire sealing, which is suitable for full colors of bag.
3. Adopt import heat wire, steady warming, hard sealing

Soft loop handle bag device

1. Hydraulic skew angle feeding soft loop
2. 90 degree turnabout gear rotary soft loop
3. Special oblique drag style rotary soft loop
4. Micro-motor driver soft loop handle go forward and back off
5. Centralize style air control system

Patch handle bag device

1. Turnabout cylinder control patch
2. With flying knife cutting fast
3. Special pattern sealing mould
4. Micro-motor driver patch go forward and back off
5. Base mould of patch device adopt whole steel plate

Poly draw handle bag device

1. Unwinder wiith double disc plate
2. Non-tension unwind
3. With 25mm half hole puncher
4. With poly draw tape unwind
5. With top fold sealing bar

Heat sealing handle punch

1. High hardness gear steel smooth pillar
2. Air outside waster film blower hopper
3. The whole style rotary 180 degree
4. High hardness alloy aluminium puncher base plate

Side sealing parts:

1.Side sealing knife with water cycle cooling system.
2.Side sealing knife adopt best of breed material, high temperature heating ametabolic.
3. Side sealing knife with concealed style heating tube, temperature steady

Convey collect device

1.Collect table adopt automatic collecting bag feeding (intermission model and continuum model)
2.When the bag reach to a certainty quantity, collect table will move automatically, and continuo producing.
3.Collect table is driven by Micro-motor reducing servo

Main Part

Packing & Loading

Certifications

About Us

CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery. it has adopted modern management methods such as 6S site management, PMC production management and international standard QC management, and adopted 3D mechanical design and IEC standard electrical 3D design to standardize production operations, so that to receive a higher rating from customer after use.

CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the EU CE safety regulations.

CHOVYTING has more than 120 employees, 8 person for research and development, 9 person for sale, and 10 technical person for after sales that includes 5 person work in overseas all year round.

EXHIBITIONS

FAQ

1) Is your company a factory or a trading company? We are a factory. 2) Where is your factory? How can i visit your company? Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us. 3) What is the suitable material for your machines? PE, OPP, laminated material ,etc are suitable for our machines 4) What kind of machine do you have ? We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc... 5) How many years of your factory? Our company is established since 1999. 6) What certificate of machine do you have? CE, ISO 2008, more than 50 pieces Patent of machine 7) What about the development of your company? Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well. 8) How many exhibition do you take part in? We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT, UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc... 9) How many agent do your company have? We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc... 10) How many workers of your company? More than 150 workers.
