Quick Details
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
RoHS
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
5.6G
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
RoHS

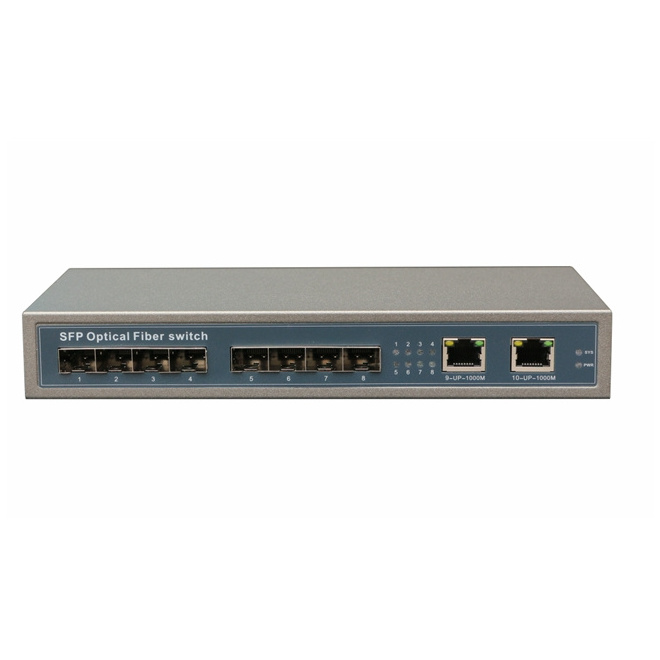

SWCA2008SFP fiber switch, Support Default standar and VLAN isolation Two working modes; mainly for the industrial parks, buildings, factories, government offices and residential broadband network users aggregation layer or core layer, Realization long distance optical fiber connection.
Characteristic
1. Comply to IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,802.3X
2. Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
3. Auto MDI/MDIX
4. Store-and-forward
5. All ports support wire speed switch, jumbo frame transmission.
6. Rj45 is self-adaption 10/100/1000M port
7. Support MAC address automatic study function, MAC address table gathered reach 4K
8. Configurable: single fiber/ double fiber/ single mode/multimode 3~100km
Specifications
Model: SWCA2008SFP
Describe: 8FE SFP+2GE uplink
Functional switching Explain
| Gear | Function | Explain |
| NOM | Standard | All ports free communication , suitable for common data transmission environment |
| VLAM | Port isolation |
The 1-8 ports are isolated from each other , which is suitable for the use of the wireless AP , which ca effectively restrain the network storm and improve the performance of the wireless network . |
Indicating lamp Explain
| Indicating | Explain |
| 1-8 | Corresponding port indicating |
| PLS | Spare Power Indicating |
| PMS | Main Power Indicating |
| Rj45 orange | 1000M Speed |
| Rj45 green | 10/100M Speed |
