Quick Details
-
Brand Name:
-
NineGood
-
Model Number:
-
402
-
Max. Current:
-
3A
-
Max. Working Pressure:
-
150PSI
-
Certification:
-
CE,CQC,RoHS
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NineGood
-
Model Number:
-
402
-
Max. Current:
-
3A
-
Max. Working Pressure:
-
150PSI
-
Certification:
-
CE,CQC,RoHS
Advantages:
1.professional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPST NC or SPST NO (Selectable), Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: M12X1.5-6g, T hread (Male ).
3, Electrical connection: 227 IEC 2X0.5mm 2 ,Lead wire .
4, Voltage: 5-110VDC, 5-250VAC;
Resistance load : 0.1-3A, Inductive load : 0.1-1A .
5, Fluid media: Air pressure & Water pressure & Vacuum & Oil & Corrosive fluids,etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP00 (Not have PVC jacket ); IP54 ( Equipped with PVC jacket ).
8, Ambient temperature : -20°C ~55 °C , Medium temperature : -4 0°C ~8 0°C.
9, Model: (Read table 1).
10,Working pressure: Vacuum -14.5PSI to +145PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free

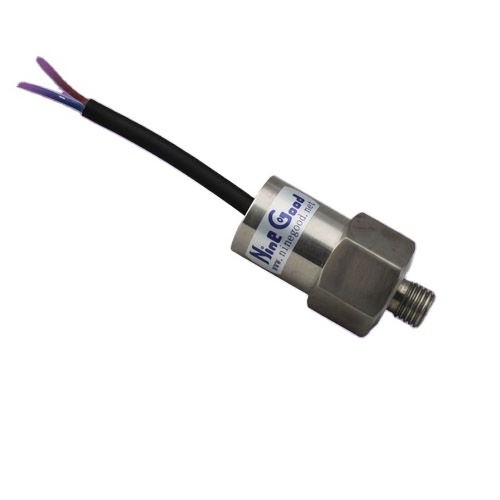

Production Photo:
Dimenison Drawing:
