Quick Details
-
Weight:
-
2900+-20g (M)
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM / OUKA
-
Model Number:
-
M11
-
Color:
-
Original / Matt black
-
Frame:
-
Super strong Aluminum Alloy
-
Warranty:
-
2 Years
-
Keyword:
-
G510 frame
-
Wheel size:
-
27.5 Inch
-
MOQ:
-
1 Set
-
Motor:
-
Bafang M620 Motor 1000W
Quick Details
-
Size:
-
S/M/L
-
Use:
-
BMX, Mountain Bikes
-
Type:
-
Integrated metal frame
-
Weight:
-
2900+-20g (M)
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM / OUKA
-
Model Number:
-
M11
-
Color:
-
Original / Matt black
-
Frame:
-
Super strong Aluminum Alloy
-
Warranty:
-
2 Years
-
Keyword:
-
G510 frame
-
Wheel size:
-
27.5 Inch
-
MOQ:
-
1 Set
-
Motor:
-
Bafang M620 Motor 1000W
Fast Delivery Cheap Price Bafang M620 G510 48V 52V 1000W Enduro Full Suspension Center Crank Mid Drive Electric Bicycle E-Bike Ebike Motor Kits Used Frame

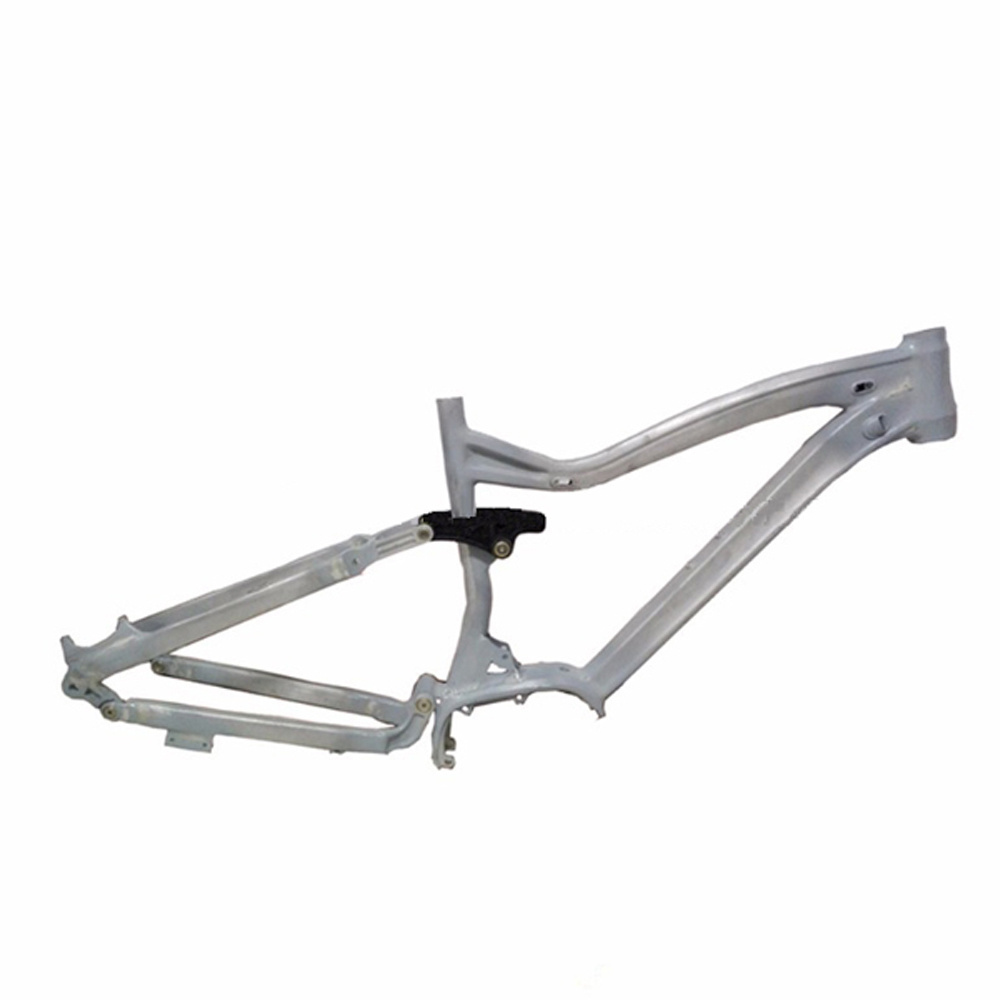

Frame for reference
|
|
|
| 19 inch frame 27.5 x 2.8 tire 265 USD | 19 inch frame 27.5 x 2.8 tire 265 USD | 17.5/ 18.5 inch frame 27.5 x 2.5 or 29 x 3.0 / 26x 4.0 optional 468 USD |
Complete kit:
Packling list for the Can M620 kit:
1. Bafang motor Ultra G510;
2. EB-BUS 1T4 cable;
3. Chainwheel: different for MTB or fatbike;
4. Crank arms: different for MTB or fatbike;
5. DPC18 color display;
6. Speed sensor;
7. Headlight and taillight cables;
8. Power cable;
9. Plastic cover;
10. Installation screws;
11. Alloy hanger(optional): if you already have the hanger built with your bike, then you don't need to buy the hanger.
SPECIFICATIONS
The mid-drive motot constantly samples relevant information at a frequency of up to 80k Hz via a torque sensor and two speed sensors which are all highly sensitive. The resulting data on crank torque, vehicle speed and the speed of rotation of the pedals is made available to the controller, ensuring precise control of the vehicle while achieving the highest possible efficiency. The Max Drive System puts the rider in complete control. In spite of a generous power output and a maximum torque of more than 160 N.m, the motor operates in virtual silence. The modular motor design and integrated controller make disassembly easier and improve service responsiveness. This motor can be black.
|
Position |
Mid motor |
Wheel diameter(inch) |
Optional |
|
Construction |
Gear drive |
n0(Rpm) |
43/48/60 |
|
Rated power |
1000w |
nT(Rpm) |
150/170/210 |
|
Max Torque |
160 N.m |
Efficiency |
≥80% |
|
Pedal sensor |
Speed sensor and torque integrated |
Shaft Standard |
ISIS |
|
Weight |
10KG |
Noise Grade |
<55 |
|
Operating Temperature |
-20℃-45℃ |
Color |
Black |
Detailed Image
G510 Mid motor
DPC-18 Color Display
Chain wheel
G510 chain wheel is usually 44T, which helps you ride smoothly. We provide mountain bike type and snow bike type, which are different. When you want to order it, pls tell me know your bike type.
Screws and nuts
M620 system connect drawing for reference.
Battery and charger
About the other types case: forg battery, downtube battery, rear rack battery, bag battery click the following picture to the catalogue select more.
Package
Package size: 54 x 32 x 25CM
GW: 10KG
Coversion example and feedback from customers.
Fat tire ebike
Front & rear drive hub motor electric bike conversion kit
Click the following picture to se e the detail .
Warranty policy
a.) For main electronic parts, charger, controller and battery, we provide 6 months warranty.
b.) For motor, we provide 12 months warranty.
c.) For frame, handlebar, stem and wheel rim we provide 2 years warranty.
1.1 The following conditions, not including in warranty policy
a.) Any damages caused by human factor.
b.) Dismounting any parts without professional technical people.
c.) Use other parts in our electric bike or scooter.
d.) Damages caused by traffic accident and other accident.
e.) The problem caused by overloading.
Technical support
a.) We provide “electric circuit diagram” for each model.
b.) We can train customer’s 1 or 2 technical workers for free.
c.) When oversea customers meet serious problem, they can not work out by technican, we will dispatch engineer to customer’s company to give help
