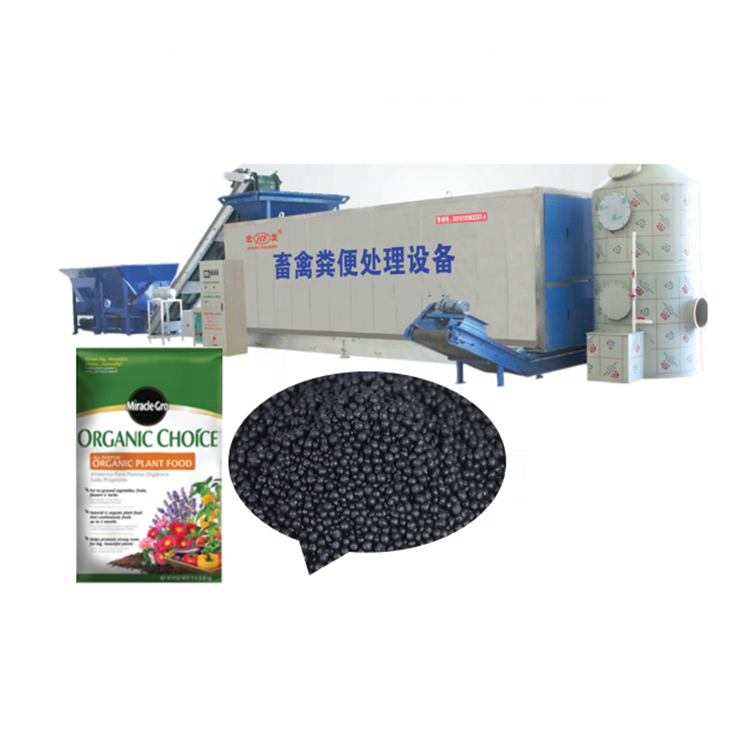

Organic Fertilizer Making Machine Bio Compost Machine Organic Fertilizer Granulator / Organic Fertilizer Making Machine / Chicke

farm machine for small organic fertilizer machine  Organic Fertilizer Making Machine Bio Compost Machine  Product introduction:

Bed-type fermentation equipment, the main structure of the equipment frame is galvanized steel and pickled and phosphated steel, and the whole frame is sprayed with special materials, which greatly increases the service life of the equipment. The contact position of the fermentation bed and feces is all made of 304 stainless steel including screws.

The operating principle of the equipment adopts the heat generated by natural fermentation of feces, and the heat is efficiently recovered to continuously support the stability of the overall fermentation. Each raw material of the fermentation requires about 7-10 degrees of electricity. When the temperature is low, an electromagnetic heating auxiliary system is used. The raw materials are fermented in the equipment for 48 hours to achieve deodorization, insecticide, decomposing, and low moisture content in the fertilizer.

After the biological strains independently developed by Hongfa Environmental Protection are combined with the feces, the feces are put into the box on the same day, and the odor can be deodorized on the same day. Based on the combination of dynamic and static high-temperature fermentation process, while eliminating eggs and sterilizing, the feces undergo high-temperature aerobic fermentation in the equipment for 1-2 days, and after being placed, organic fertilizer meeting the national organic fertilizer standard will be produced.

production material

Livestock and poultry manure, Hongfa environmental protection strains, condiments: cassava residue, wine residue, mushroom residue, rice bran, platycodon, sawdust, wood ash, peanut shells, corn cobs, etc. can be optionally added.

Raw Materials:
1. Agricultural waste: straw, dregs of beans, cotton dregs, rice bran, etc.
2. Animal manure: mixture of poultry litter and animal waste, such as the wastes of slaughterhouse, fish market, urine and dung of cattle, pigs, sheep, chicken, ducks, geese, goat, etc.
3. Industrial waste: wine lees, vinegar residue, manioc waste, sugar scum, furfural residue, etc.
4. Home scrap: food waste, the roots and leaves of vegetables, etc.
5. Sludge: the sludge of the river, sewer, etc.

Organic fertilizer production process

Livestock and poultry manure, condiments, strains-adjust the ratio of carbon and nitrogen and moisture-convey feed-high temperature fermentation, deodorization, insecticide, dehumidification, decomposing-put 3-5 Heavenly heat-crushing powder sieve granulation packaging-organic fertilizer for sale

Equipment scheme

Main equipment: Hongfa environmental protection integrated treatment equipment for livestock and poultry manure, daily treatment capacity is determined by equipment specifications

Auxiliary equipment: batching machine, in and out conveying equipment

High temperature oxygen-consuming fermentation, biological deodorization, decomposing, aging, oviposition, sterilization, nutrient preservation

Model	HF-5	HF-10	HF-20	HF-30	HF-50
Size	9*2*2.7m	12*2.4*3.4m	15*2.4*4.1	17*2.4*5m	17*5.2*5.5
Volume	10m3	20m3	40m3	60m3	100m3
Batching machine /volume	4.4kw/1m3	4.4kw/1m3	4.4kw/1.8m3	4.4kw/1.8m3	4.4kw/1.8m3
Heat recovery fan machine	1.5kw	1.5kw	3kw	3kw	4kw
Oxygen supply machine	1.5kw	1.5kw	3kw	3kw	3kw
Infeed conveyor belt	2.2kw	2.2kw	3kw	3kw	3kw
Discharge out conveyor belt	1.5kw	1.5kw	1.5kw	1.5kw	3kw
Finished conveyor belt	0.75kw	1.1kw	1.1kw	1.5kw	1.5kw
Deodorizing spray tank	1.5kw	1.5kw	2.2kw	2.2kw	4.4kw
Main machine weight	8t	12t	16t	18t	36t
Daily capacity	5m3	10m3	20m3	30m3	50m3
Installation size	27*5*3.5m	30*5*5.5m	33*5.5*5.4m	31*6*6m	44*8.5*6m

Comparison of the advantages of Hongfa environmental protection and other equipment

1. Traditional composting: the whole process takes 25-30 days, the fermentation process is slow, and it covers a large area. It overturns once about 10 days after compiling, which consumes a lot of manpower.

2. Tower equipment: 24-hour continuous operation of fermentation, power consumption of 100-130 degrees/ton, small fertilizer output of a single machine, fermentation cycle of more than 7 days, during operation, if the power is cut for more than five hours, the equipment needs to be reloaded. Large investment.

3. Drum equipment: high energy consumption, 50-70 degrees/ton, low daily output of single equipment.

Hongfa environmental protection equipment (bed type fermentation equipment)

1. Adopting patented design, direct oxygen into the material to be fermented to make it fully fermented.

2. The materials are fermented in layers and cycles in the tank, and the three-zone separation technology is adopted at the bottom of the equipment to make the materials more completely fermented.

3. The fermentation cycle is short, the feed is 8 hours to deodorize, and the fertilizer is completed in 48 hours.

4. Low discharge water content.

5. One person operation saves time and manpower. Small footprint, low cost, simple and convenient operation.

6. Low energy consumption. The equipment adopts advanced solar heating technology and electromagnetic auxiliary heating system. Only 7-10 kWh of electricity per ton of finished product. The equipment adopts partial static fermentation, which greatly reduces energy consumption. The internal temperature of the equipment is maintained at 70 degrees Celsius, and the waste heat is recovered, which is highly energy-efficient. It can operate normally after restarting at any time after power failure. The equipment technology is mature and cost-effective.

7. Low strain consumption, 1 kg of strains can ferment 8 cubic materials, and the price of strains per square of material is about 4-6 yuan.

8. The cost of machinery and equipment can be recovered within 3-4 months
