Quick Details
-
Power (kW):
-
2.2
-
Range of Spindle Speed(r.p.m):
-
2800 - 2900 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SUNRISE
-
Voltage:
-
220-600V
-
Dimension(L*W*H):
-
1400*600*1200 MM
-
Weight (KG):
-
200 KG
-
Marketing Type:
-
IN STOCK
-
Item:
-
Dry Food Crushing Machine
-
Usage:
-
Crushing Materials
-
Function:
-
Make Dry Powder
-
Feature:
-
High Efficiency Easy Operation
-
Main feature:
-
Powder Milling Grinding Crushing Machine
-
After-sales Service:
-
Technical Online Supporting
-
Packaging:
-
Standard Wooden Case
-
Certification:
-
CE ISO
Quick Details
-
Output (kg/h):
-
50 - 100 kg/h
-
Feeding Size (mm):
-
10 - 100 mm
-
Output Size (mesh):
-
1 - 10 mesh
-
Power (kW):
-
2.2
-
Range of Spindle Speed(r.p.m):
-
2800 - 2900 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SUNRISE
-
Voltage:
-
220-600V
-
Dimension(L*W*H):
-
1400*600*1200 MM
-
Weight (KG):
-
200 KG
-
Marketing Type:
-
IN STOCK
-
Item:
-
Dry Food Crushing Machine
-
Usage:
-
Crushing Materials
-
Function:
-
Make Dry Powder
-
Feature:
-
High Efficiency Easy Operation
-
Main feature:
-
Powder Milling Grinding Crushing Machine
-
After-sales Service:
-
Technical Online Supporting
-
Packaging:
-
Standard Wooden Case
-
Certification:
-
CE ISO

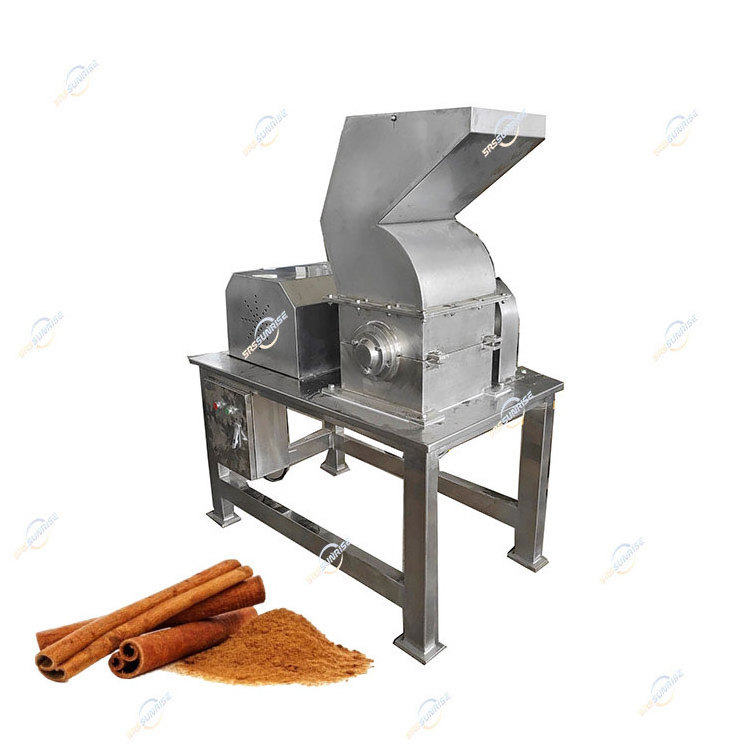

Coarse Crusher Machine
The stainless steel powerful coarse crusher machine has horizontal and vertical crushing structure and the whole machine is made of stainless steel. Any raw material, being fed into the grind chamber through the upper feeder, stroked by the revolving and fixed knives, cut and grind and then automatically runs to the exit by the centrifugal force of revolving object. The crusher with the characteristics of compact structure, easy washing, and low noise. So it is the most ideal new product in current crusher market.
Application of Coarse Crusher
Suitable for material processing in industries such as chemical, food, and feed. Especially suitable for hard and difficult to crush materials For example, rough crushing of hard rhizomes, fruit shell starch, strong fibers, large ore blocks, and various horn types.
The stainless steel crusher has a simple structure, convenient cleaning, and good crushing effect. The material enters the crushing chamber from the feeding hopper and is crushed by the impact and shear of the rotating moving knife and the fixed stationary knife. The ideal particles are obtained by adjusting the gap between the knives and using appropriate screens.
Main features crusher machine:
1. This grinding machine is widely used in food, chemical and other industry.
2. For normal material, it can grind into 0.5-20 mm granule.Customer can use different size of sieves to get the fineness they need.
3. This machine has different models, capacity from 20-1200 kg/h, customers can choose the right model according to their requirement.
4. The temperature during the crushing process is less than 40 ℃. For sensitive material, customer can choose water cooler or air cooler.
5. Stable quality of finished product with low consumption to save cost.
6. Simple structure, convenient cleaning and low noise.
7. The machine can be equipped with dust collector, no fine powder flying during the grinding process.
8. We can make the input hopper be magnetic to avoid metal damage if you need.
|
Model
|
Input size
|
Output size
|
Capacity
|
Grinding motor
|
Overall dimension
|
Weight
|
|
SWF-100
|
<50mm
|
0.5-20mm
|
20-80kg/h
|
4kw
|
1120*620*1450mm
|
150kg
|
|
SWF-200
|
<50mm
|
0.5-20mm
|
50-150kg/h
|
5.5kw
|
1150*760*1350mm
|
190kg
|
|
SWF-300
|
<50mm
|
0.5-20mm
|
100-300kg/h
|
11kw
|
1200*900*1500mm
|
350kg
|
|
SWF-400
|
<50mm
|
0.5-20mm
|
300-500kg/h
|
22kw
|
1300*1000*1500mm
|
450kg
|
|
SWF-600
|
<50mm
|
0.5-20mm
|
500-800kg/h
|
37kw
|
1500*1200*1600mm
|
800kg
|
|
SWF-800
|
<50mm
|
0.5-20mm
|
600-1000kg/h
|
45kw
|
1860*1300*1600mm
|
1200kg
|
Because of the different properties of materials, the following parameters are for reference only.
Please consult our sales for specific models Of Our crusher machine,
and they will recommend the best model for you.
Q1: What power do you use in your factory?-V,-Hz, 3 phase or single phase?
(Like 220 V , 50 Hz , single or 380 V, 50 Hz ,3 phase...etc)
Q2: Can I Put my Logo on the machine?
Yes, Sure .
Q3. How can I trust you for the first-time business?
We can supply the business license and certificates. if you still worry about our company,
Q2: Can I Put my Logo on the machine?
Yes, Sure .
Q3. How can I trust you for the first-time business?
We can supply the business license and certificates. if you still worry about our company,
we suggest using Alibaba trade assurance service for all transactions to protect your money
and ensure our service for you.
Q4. How can you ensure the machine's quality after we purchase the order?
Before delivery, we will produce the equipment according to the agreed requirements, and
Q4. How can you ensure the machine's quality after we purchase the order?
Before delivery, we will produce the equipment according to the agreed requirements, and
after production, we will provide detailed operating instructions, testing videos, certification
documents, etc. Alternatively, you can arrange a third-party inspector to do inspection and
give you report.
Q5: How about the after-sale service and guarantee period?
1. 18-month warranty period for whole machine except for human factors etc. and 18 months’
1. 18-month warranty period for whole machine except for human factors etc. and 18 months’
after-sale service starts from the date when you receive machine .
2. Consultation services for whole machine life, and 24 hours technical support by email or video on line.
3.English software, user manual and the installation & debugging by our experienced technicians.
2. Consultation services for whole machine life, and 24 hours technical support by email or video on line.
3.English software, user manual and the installation & debugging by our experienced technicians.
