Quick Details
-
Application:
-
Office Building
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AAYEE
-
Model Number:
-
GR800AC
-
Product Name:
-

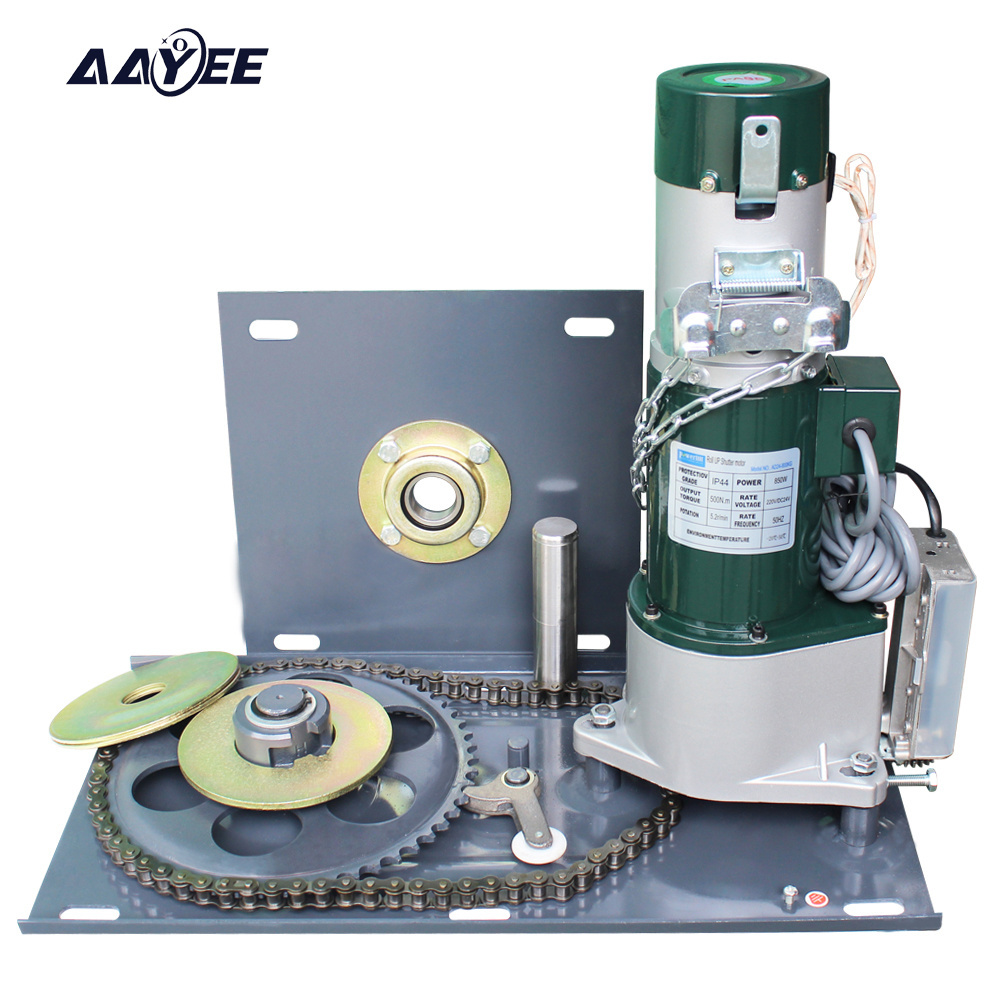

Aayee rolling shutter motors 800kg
-
Rated output torque:
-
647(N.M)
-
Rated output speed:
-
4(r/min)
-
Motor power:
-
400(w)
-
Rated voltage:
-
220/50(V/HZ)
-
Rated current:
-
4.7(A)
-
Durm dube outer diameter:
-
165(mm)
-
Max lifting force:
-
800(kg.f)
-
Max lifting height:
-
8(m)
-
MODEL:
-
GR800AC
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support, Return and Replacement, 24 hours after-service
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Office Building
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AAYEE
-
Model Number:
-
GR800AC
-
Product Name:
-
Aayee rolling shutter motors 800kg
-
Rated output torque:
-
647(N.M)
-
Rated output speed:
-
4(r/min)
-
Motor power:
-
400(w)
-
Rated voltage:
-
220/50(V/HZ)
-
Rated current:
-
4.7(A)
-
Durm dube outer diameter:
-
165(mm)
-
Max lifting force:
-
800(kg.f)
-
Max lifting height:
-
8(m)
-
MODEL:
-
GR800AC
Products Description
|
Model
|
GR800AC
|
|
Rated output torque
|
647(N.M)
|
|
Rated output speed
|
4(r/min)
|
|
Motor power
|
400(w)
|
|
Rated voltage
|
220/50(V/HZ)
|
|
Rated current
|
4.7(A)
|
|
Durm dube outer diameter
|
165(mm)
|
|
Max lifting force
|
800(kg.f)
|
|
Max lifting height
|
8(m)
|
Details Images
Manufacturing Technique
AAYEE group is specializing in the production of rolling shutter motors and its control system.Our main lines including AC and DC rolling door motors. We have a special team, who focus on producting electric rolling doors more than 10 years. And we have our own marketing channel, which diversification and customer-oriented. Our products have been exported to more than 20 countries and regions in the world such as Iran, Vietnam,Brazil,India etc.
|
AC Motor
specification
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Model
|
Rated output torque
(N.m)
|
Rated output speed
(r/min)
|
Motor power(w)
|
Rated voltage
(V/Hz)
|
Rated current
(A)
|
Continuous working time(min)
|
Durm dube diameter
(mm)
|
Max lifiting force
(kg.f)
|
Max lifiting height(m)
|
|||||||||
|
Single Phase Motor
|
|
|
|
|
|
|
|
|
|
|||||||||
|
AC300-1P
|
225
|
5.4
|
200
|
220/50
|
2.8
|
8
|
114
|
300
|
6
|
|||||||||
|
AC600-1P
|
412
|
5.4
|
300
|
220/50
|
3.3
|
8
|
140
|
600
|
6
|
|||||||||
|
AC800-1P
|
647
|
4
|
400
|
220/50
|
4.7
|
8
|
165
|
800
|
8
|
|||||||||
|
AC1000-1P
|
809
|
4
|
400
|
220/50
|
4.9
|
8
|
165
|
1000
|
8
|
|||||||||
|
AC1500-1P
|
809
|
3.5
|
700
|
220/50
|
8.2
|
8
|
165
|
1500
|
9
|
|||||||||
|
Three Phase Motor
|
|
|
|
|
|
|
|
|
|
|||||||||
|
AC300-3P
|
168
|
5.4
|
250
|
380/50
|
1.5
|
15
|
114
|
300
|
6
|
|||||||||
|
AC600-3P
|
343
|
5.4
|
250
|
380/50
|
1.5
|
15
|
140
|
600
|
6
|
|||||||||
|
AC800-3P
|
647
|
5.4
|
370
|
380/50
|
2.3
|
15
|
165
|
800
|
6
|
|||||||||
|
AC1000-3P
|
809
|
5.4
|
370
|
380/50
|
2.8
|
15
|
165
|
1000
|
7
|
|||||||||
|
AC1300-3P
|
1401
|
4
|
850
|
380/50
|
3.2
|
15
|
219
|
1300
|
8
|
|||||||||
|
AC1500-3P
|
1617
|
4
|
1000
|
380/50
|
3.8
|
15
|
219
|
1500
|
12
|
|||||||||
|
AC2000-3P
|
2450
|
3.6
|
1000
|
380/50
|
4.1
|
15
|
245
|
2000
|
12
|
|||||||||
|
DC
Motor specification
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Rated voltage
(V/Hz)
|
Max lifiting force
(kg.f)
|
Rated output torque
(N.m)
|
Rated output speed
(r/min)
|
Motor power
(w)
|
Max lifiting height
(m)
|
Standard Barrel Dim(inch)
|
|||||||
|
DC600
|
220/50
|
600
|
412
|
5.3
|
240
|
6
|
4''
|
|||||||
|
DC800
|
220/50
|
800
|
550
|
5.3
|
400
|
9
|
5''
|
|||||||
|
DC1000
|
220/50
|
1000
|
550
|
5.3
|
550
|
9
|
6''
|
|||||||
Details Images
Installation Precautions
●The roller shutter door motors should be installed exactly horizontally with precision.
●The roller axle of the shutter should door should be homocentric and horizontal .
●The roller shutter should be free of any obstructions.
●The vertical hanging length of the chain must be adjusted within 3-6mm-adjustment should be made before hanging the shutter onto the roller axis.
●It is strictly forbidden to pull on the motor down lead.
●External power cord should be ≥1.0mm diameter.
●Special attention should be given to protecting the motor from humidity and rain, to prevent short-circuiting.
●The motor must be satisfactorily earthed to prevent potential injury from shocks .The earthing connection bolts should be fixed to the chain wheel support board or electric appliance control box.
●The switch box has to be installed on the dry wall and placed at a high of over 1.5 meters high, this is to ensure that children cannot operate the wall switch and remote controller.
●The disabled and the people lacking of experience (including the children) are forbidden to operate the shutter door motors,unless they are guarded by someone can respons for their safety or reading the instructions carefully in advance.
Application
Our motors are applied to shopping centers, warehouse, garages, theaters, hotels, banks,factories and other buildings' rolling shutter doors' opening and closing with electric and manual function.
