Quick Details
-
Item:
-
Copperbond Electrical Ground Earthing Rod
-
Material:
-
Copper Layer and Steel Core
-
Copper layer thickness:
-
>=0.254mm
-
Purity of Copper:
-
>=99.95%
-
Tensile strength:
-
>=580Nm/mm
-
Straightness error:
-
<=1mm/m
-
Service life:
-
>=50 years
-
Diameter:
-
14.2mm~25mm; (5/8, 3/4)
-
Length:
-
1.2m~3.0m(4ft~10ft)
-
Certication:
-
ISO9001: 2008
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SHIBANG
-
Model Number:
-
JDB-J226
-
Item:
-
Copperbond Electrical Ground Earthing Rod
-
Material:
-
Copper Layer and Steel Core
-
Copper layer thickness:
-
>=0.254mm
-
Purity of Copper:
-
>=99.95%
-
Tensile strength:
-
>=580Nm/mm
-
Straightness error:
-
<=1mm/m
-
Service life:
-
>=50 years
-
Diameter:
-
14.2mm~25mm; (5/8, 3/4)
-
Length:
-
1.2m~3.0m(4ft~10ft)
-
Certication:
-
ISO9001: 2008
Products Description

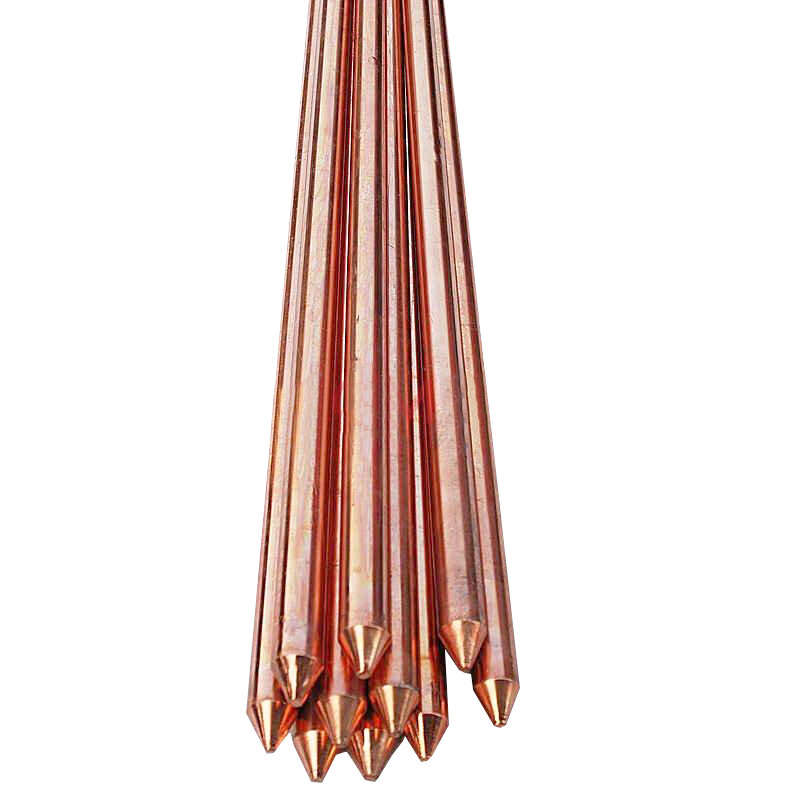

99.95% Pure Copper Copper bond Electrical Copper-clad Steel Ground Earthing Rod
|
Item
|
14.2mm DIA Copper Bonded Ground Rods Product
|
|
Material
|
Copper Layer & Steel Core
|
|
Copper Layer Thickness
|
≥0.254mm or As Your Request
|
|
Tensile Strength
|
≥580Nm/mm
|
|
Straightness Error
|
≤1mm/m
|
|
Service Life
|
≥50 Years
|
|
Function
|
Connect with grounding, disperse the lightning
|
|
Type
|
Threaded or plat or pointed
|
|
Available service mode
|
OEM; ODM
|
|
Certification
|
ISO9001:2008
|
1) The purity of the copper which used as cladding is more than 99.95%.
2) The steel core is low carbon steel which the carbon content is about 0.15%.
3) The copper bonded ground rod will be capable of being through 90 at a maximum radius of 100mm
with no copper fracture and with no ill effect on the bond between the steel and the copper cladding.
4) Good in anticorrosion that usage-life is more than 50 years, constant low resistance and good plasticity
which has the characteristics of the pure copper.
5) The ground rod is fully covered with copper cladding without any cracks, holes, cavities etc.
Preventing exposure of the steel core to soil and moisture, so as to form a good corrosion resistance.
2) The steel core is low carbon steel which the carbon content is about 0.15%.
3) The copper bonded ground rod will be capable of being through 90 at a maximum radius of 100mm
with no copper fracture and with no ill effect on the bond between the steel and the copper cladding.
4) Good in anticorrosion that usage-life is more than 50 years, constant low resistance and good plasticity
which has the characteristics of the pure copper.
5) The ground rod is fully covered with copper cladding without any cracks, holes, cavities etc.
Preventing exposure of the steel core to soil and moisture, so as to form a good corrosion resistance.
