Quick Details
-
Brand Name:
-
SMARTS
-
Model Number:
-
SMT-012-180VWN2
-
Output Frequency:
-
47-63Hz
-
Output Current:
-
3*5Amp
-
outer case:
-
aluminum case
-
IP rate:
-
IP67
-
working mode:
-
constant voltage type
-
efficiency:
-
>90%
-
PF:
-
0.98
-
warranty:
-
7 years
-
certificate:
-
UL(E507826),Class 2,CE,FCC,ROHS approval
-
size:
-
276*78*47mm
-
net weight:
-
1.8KG
-
item:
-
180w led power supply
Quick Details
-
Input Voltage:
-
100-277V
-
Output Voltage:
-
12V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SMARTS
-
Model Number:
-
SMT-012-180VWN2
-
Output Frequency:
-
47-63Hz
-
Output Current:
-
3*5Amp
-
outer case:
-
aluminum case
-
IP rate:
-
IP67
-
working mode:
-
constant voltage type
-
efficiency:
-
>90%
-
PF:
-
0.98
-
warranty:
-
7 years
-
certificate:
-
UL(E507826),Class 2,CE,FCC,ROHS approval
-
size:
-
276*78*47mm
-
net weight:
-
1.8KG
-
item:
-
180w led power supply

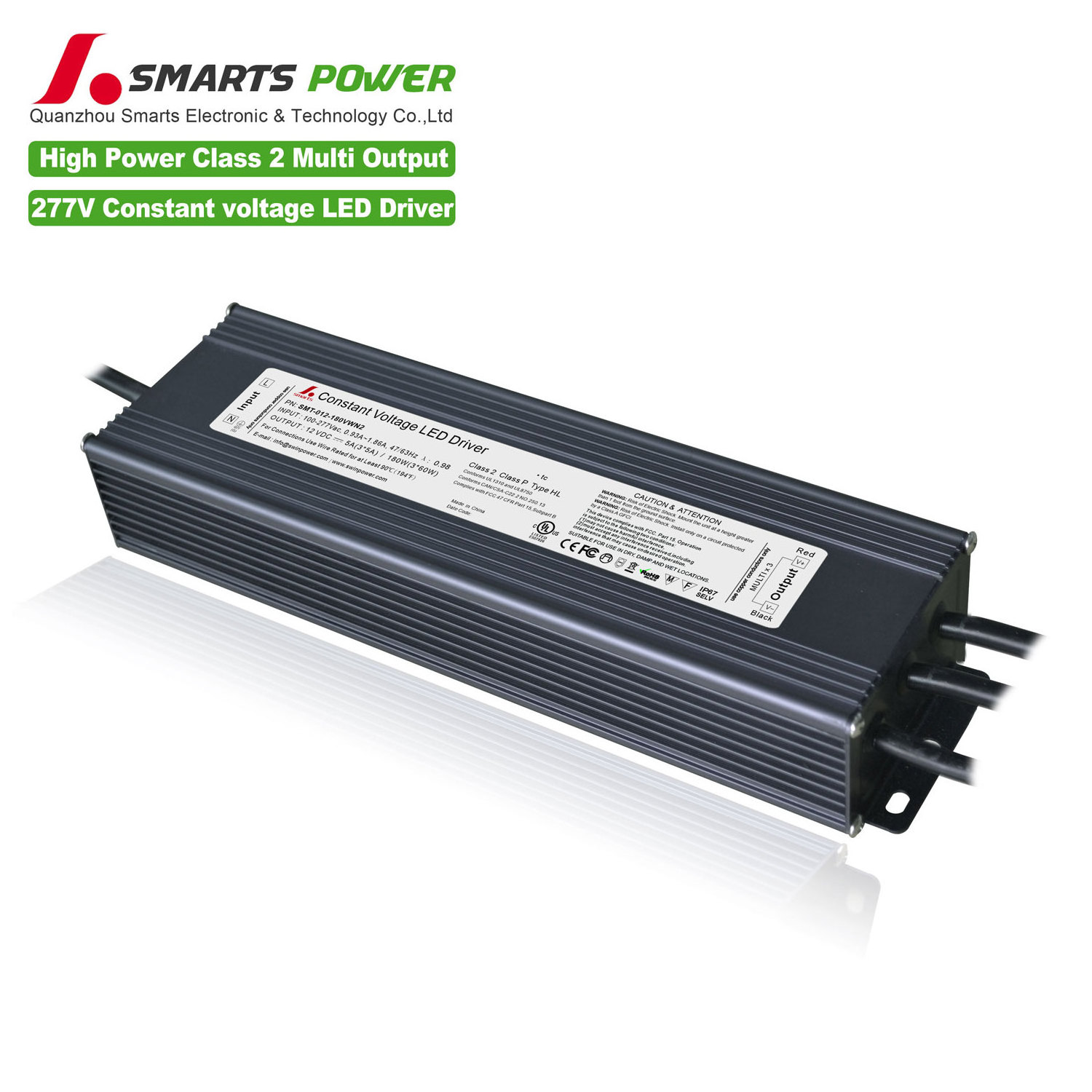

277VAC 12v 180w rain proof led power supply
Smarts have UL listed-7 years warranty/ETL listed-2-3 years warranty/CE listed and without any listed with 2 years warranty non-dimmable power supply for led screen to Satisfy with difference customer 's needs.
Features
·
Output constant voltage
· UL/cUL listed, Class 2, Class P, Type HL approval
· Input voltage range : 100-277 VAC
·Built-in PFC function / PF>0.99
·E fficiency >87 %
·Protections:short circuit/over voltage /over heat
· IP67 design for indoor or outdoor installations
·Cooling by free air convection
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting s.
· 7 years warranty
Specification
|
model |
SMT-012-180VWN2 |
SMT-024-192VWN2 |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
15.0A (3*5A) |
8.0A (2*4A) |
|
|
Rated power |
180W |
192W |
|
|
Voltage Tolerance |
±0.5V |
±0.5V |
|
|
Load Regulation |
±1%
|
±1%
|
|
|
Voltage Regulation |
±0.5% |
±0.5% |
|
|
Input |
Voltage Range |
100~277V AC |
|
|
Frequency Range |
47~63HZ |
||
|
THD(Typ.) @full load |
<20% |
||
|
Power Factor ( Typ.) |
0.98@120VAC 0.95@277VAC |
0.98@120VAC 0.95@277VAC |
|
|
Full Load Efficiency(Typ.) |
86%@120V 88%@277VAC 79% |
87%@120V 89%@277VAC
|
|
|
AC Current(Typ.) |
3.4A@100VAC |
3.6A@100VAC |
|
|
Inrush Current (Typ.) |
19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC
|
||
|
Leakage current |
<0.50mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
|
Over Loading |
≤120% Hiccup mode ,recovers automatically after fault condition is removed |
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV) |
||
|
Others |
Net Weight |
1.90Kg |
|
|
Size |
276*78*47mm (L*W*H) |
||
|
packing |
329*279*176mm , 10PCS/ctn |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
Mechanical Specification
u Input wire 18AWG Black and White to be connected to AC L and N ,Green wire go ground ,
u Output cable 2 *16AWG, Red" (+) to LED Positive side (+) , "Black" (-) to LED Negative side (-).
Note: Three groups output cables for SMT - 012-180VWN2 and two groups for SMT-024-192VWN2
u Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life
Connecting Diagram
