Quick Details
-
Weight:
-
600 kg
-
Certification:
-
CE ISO SGS
-
Item name:
-
Vertical mixer and hammer mill machine group for chicken,poultry feed
-
Motor:
-
electric or diesel motor
-
Capacity:
-
1T/H
-
thickness of the mixing tank:
-
1.5mm
-
work group:
-
blower fan, cyclone airlock and so on
-
Raw material:
-
cereal such as corn, soybean
-
CV:
-
less than 5%
-
remarks:
-
can not adding water and spraying device
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Double Crane
-
Voltage:
-
380V 50HZ
-
Weight:
-
600 kg
-
Certification:
-
CE ISO SGS
-
Item name:
-
Vertical mixer and hammer mill machine group for chicken,poultry feed
-
Motor:
-
electric or diesel motor
-
Capacity:
-
1T/H
-
thickness of the mixing tank:
-
1.5mm
-
work group:
-
blower fan, cyclone airlock and so on
-
Raw material:
-
cereal such as corn, soybean
-
CV:
-
less than 5%
-
remarks:
-
can not adding water and spraying device
Feed grinder and mixer for poultry 0.5-1 ton feed mixer feed mill equipment

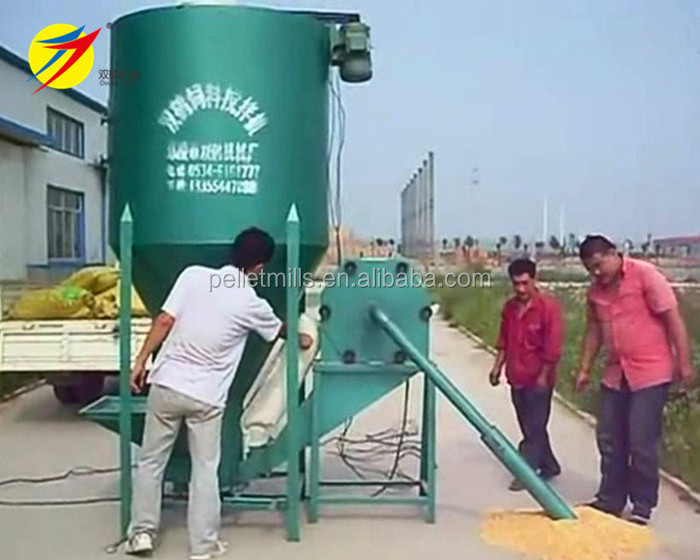

Vertical mixer and hammer mill group consists of two machines: vertical mixer and self-priming hammer mill . The machine group is mainly used for crushing grains into fine powder and mixing them evenly at the same time, then use the mixed grains powder to make feed pellets to feed poultry directly. They are the most suitable machines for crushing all kinds of cereals such as corn, maize, barley, soybean and wheat into powder and then the crushed materials can be mixed with other powder.
These machines are main products with unique design made by Shandong Double Crane Machinery Manufacturer Co., Ltd.. The vertical mixer body is made of Q235 carbon steel. The machine group has the characteristics of low cost, reasonable structure, compact layout, reliable performance and easy maintenance.
Features and Advantages
1) High efficiency with low cost. crushing and mixing at the same time.
2) The residue materials are easy to clean. Durable in use and easy and convenient to maintain.
3) Energy saving and environment friendliness with low noise and dust.
4) Short mixing time. Stable and reliable performance.
5) Compact structure. High evenness. CV ≤5% .
Technical Parameters
|
Vertical mixer and hammer mill group |
model |
Power of mixer(kw) |
Power of hammer mil l (kw) |
Capacity(t/h) |
Size(m) |
Weight (kg) |
|
0.5t |
2.2 |
7.5 |
0.5-0.8 |
2*1*2.4 |
300 |
|
|
0.5t |
2.2 |
11 |
1-1.5 |
2.2*1*2.4 |
320 |
|
|
1t |
3 |
7.5 |
0.8-1.2 |
2.25*1.25*2.9 |
350 |
|
|
1t |
3 |
11 |
1-2 |
2.4*1.25*2.9 |
370 |
Product Application
The machine group is the main feed powder processing equipment for rural animal raisers, small feed production factory and medium-sized complete formula feed factory. The machine group can produce all kinds of premix feed powder, concentrate feed and compound feed.The finished powder can be fed to any kinds of animals for improving their nutrition and create more economic value.
The vertical mixer and hammer mill group is also a necessary part of 1t per hour ring die pellet production line.
For more information, pls refer to:
The machine group can work with small flat die pellet mill and screw elevator to form a small feed processing line.
For more information, pls refer to :
Spare part of vertical mixer and hammer mill
The spare parts of hammer mill is hammers and the screen.
There are 16 pcs of hammers in the hammer mill.
And need 1 pc of screen in the hammer mill. The pore size of the screen is 2-10mm. We can also customize for you.
