Quick Details
-
Operating Angle:
-
standard
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TFN/SEMRI
-
Product Name:
-
BJ212 30*80mm Auto Drive Shaft Cross Joint Universal Joint Bearing
-
D:
-
30 mm
-
L:
-
80 mm
-
OEM No:
-
BJ212
-
Application:
-
Auto Transmission System
-
size:
-
36*115.6 36x115.6
-
Service:
-
OEM Customized Services
-
Packing:
-
Neutral Package
-
Feature:
-
Long Life
Quick Details
-
Applicable Industries:
-
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Construction works , Energy & Mining, auto
-
Structure:
-
Double
-
Material:
-
chrome steel
-
Operating Angle:
-
standard
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TFN/SEMRI
-
Product Name:
-
BJ212 30*80mm Auto Drive Shaft Cross Joint Universal Joint Bearing
-
D:
-
30 mm
-
L:
-
80 mm
-
OEM No:
-
BJ212
-
Application:
-
Auto Transmission System
-
size:
-
36*115.6 36x115.6
-
Service:
-
OEM Customized Services
-
Packing:
-
Neutral Package
-
Feature:
-
Long Life

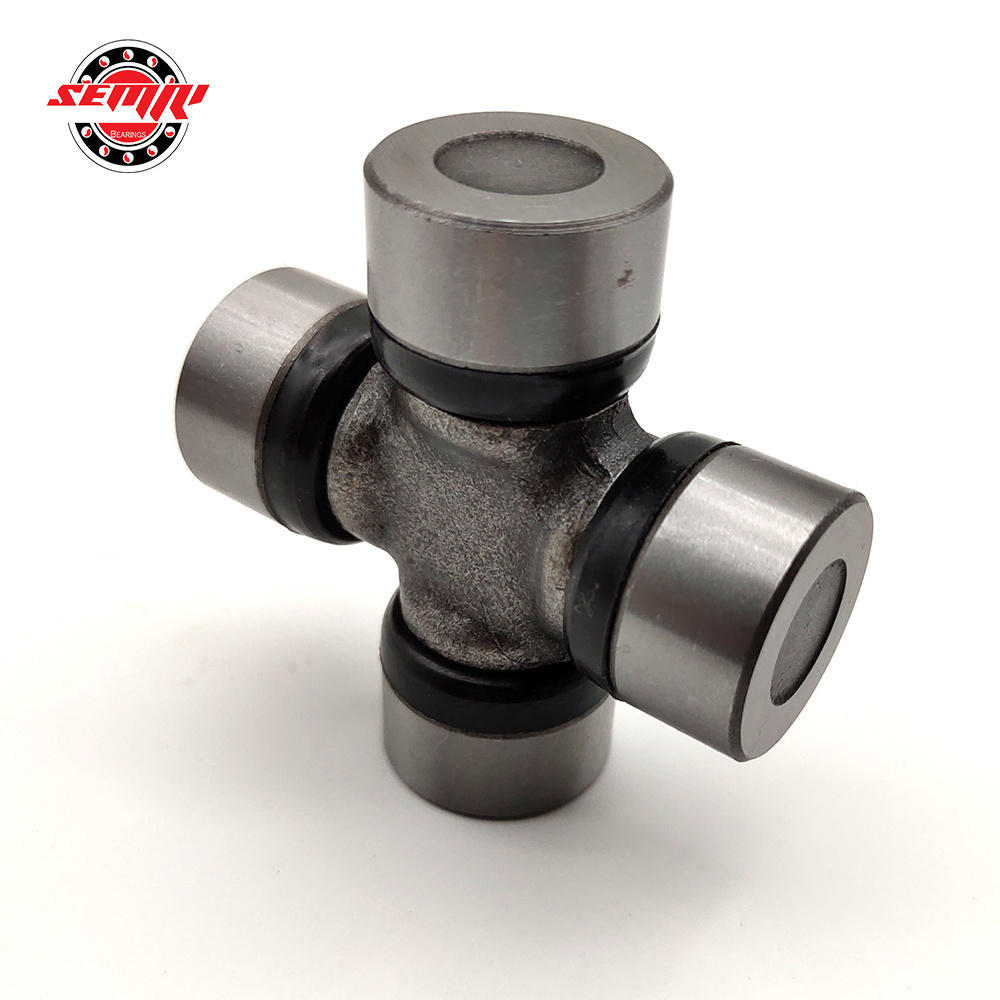

BJ212 30*80mm Auto Drive Shaft Cross Joint Universal Joint Bearing
|
Product Name |
BJ212 30*80mm Auto Drive Shaft Cross Joint Universal Joint Bearing |
|
Brand |
TFN / SEMRI / OEM |
|
Model Number |
BJ212 |
|
Dimension |
30*80 mm |
|
Material |
steel |
|
Precision |
P0, P6, P5, or as requested |
|
Vibration |
ZV1, ZV2, ZV3, or as requested |
|
Clearance |
C0,C2,C3, or as requested |
|
Features |
High temperature resistant,low density, strong solidity, low friction coefficient, abrasion resistance, magnetic resistance, Non-magnetic Insulating , acid and alkali resistance, good resistance to wear and tear, electric insulation, high speed,self-lubrication. |
|
Quality standard |
ISO9001:2000/ SGS |
|
Quality Control Process |
1.Assembly |
|
2.Windage test |
|
|
3.Cleaning |
|
|
4.Rotary test |
|
|
5.Greasing and gland |
|
|
6.Noise inspection |
|
|
7.Appearance inspection |
|
|
8.Rust prevention |
|
|
9.Product packaging |
|
|
Application |
universal joint bearings are manufactured with cold forged or machined cup needle roller bearings, incorporating a closed end, and are for use in various types of application. They are used in the automotive industry, for joints in commercial vehicle propeller shafts, and also in other industries, for special applications. |
Other bearing models :
| FOR U.S. AND EUROPEAN VEHICLES IDENTIFICATION AND WEIGHT LIST | |||||
| PART NO | FIG | D m/ | L m/m | N.WEIGHT | G.WEIGHT |
| 5-1X | A | 23.82 | 61.30 | 275 | 325 |
| 5-4X | A | 27.01 | 74.60 | 430 | 480 |
| 5-121X | A | 27.00 | 81.75 | 500 | 570 |
| 5-134X | A | 27.00 | 92.00 | 610 | 670 |
| 5-153X | A | 27.00 | 81.75 | 500 | 570 |
| 5-155X | A | 34.93 | 126.22 | 1350 | 1530 |
| 5-160X | A | 30.18 | 106.35 | 820 | 920 |
| 5-178X | A | 30.18 | 92.08 | 680 | 780 |
| 5-188X | A | 34.93 | 106.30 | 1150 | 1350 |
| 5-200X | A | 27.00 | 81.78 | 500 | 570 |
| 5-213X | A | 27.02 | 92.00 | 610 | 670 |
| 5-1204X | A | 27.00/28.60 | 92.00 | 610 | 700 |
| 5-1503X | A | 25.02 | 63.50 | 280 | 350 |
| 5-12062X | A | 48.05 | 161.00 | 3000 | 3200 |
| 5-12072X | A | 56.90 | 162.90 | 4700 | 5000 |
| 5-12100X | A | 45.00 | 120.40 | 2400 | 2600 |
| 5-12219X | A | 48.05 | 125.80 | 2300 | 2500 |
| 5-12276X | A | 44.059 | 149.00 | 2500 | 2700 |
| 5-12278X | A | 50.00 | 164.00 | 3250 | 3500 |
| 5-12924X | A | 52.00 | 133.00 | 3000 | 3300 |
| 5-12932X | A | 57.00 | 152.00 | 4300 | 4500 |
| GU300 | A | 19.04 | 51.98 | 170 | 230 |
| GU400 | A | 23.82 | 61.30 | 300 | 350 |
| GU500 | A | 23.82 | 61.30 | 300 | 350 |
| GU700 | A | 27.00 | 61.86 | 400 | 450 |
| GU1000 | A | 27.00 | 81.75 | 500 | 600 |
| GU1100 | A | 27.00 | 74.60 | 450 | 550 |
| GU1700 | A | 22.00 | 55.00 | 200 | 280 |
| GU2000 | A | 30.18 | 106.35 | 820 | 920 |
| GU2200 | A | 30.18 | 92.07 | 680 | 780 |
| GU2300 | A | 34.93 | 106.30 | 1120 | 1320 |
| GU3000 | A | 39.69 | 115.95 | 1850 | 2050 |
| GU3500 | A | 39.67 | 115.42 | 1850 | 2050 |
| GU3800 | A | 44.00 | 126.00 | 2250 | 2450 |
| GU3810 | A | 50.00 | 152.60 | 3400 | 3500 |
| GU7280/4 | A | 24.09 | 74.55 | 400 | 500 |
| GU7430 | A | 35.00 | 96.80 | 1000 | 1100 |
| GU7440 | A | 38.03 | 105.60 | 1150 | 1300 |
| GU7530 | A | 45.03 | 120.40 | 2300 | 2500 |
| GU7560 | A | 52.10 | 133.00 | 3000 | 3300 |
| GU7610 | A | 53.00 | 135.00 | 3100 | 3350 |
| GU7620 | A | 48.05 | 125.80 | 2300 | 2500 |
| GU7630 | A | 57.07 | 152.00 | 4300 | 4500 |
| GU7650 | A | 48.00 | 126.00 | 2300 | 2500 |
| GU8130 | A | 57.00 | 144.00 | 3900 | 4100 |
| GU9930 | A | 53.00 | 135.05 | 3100 | 3350 |
| EG10 | A | 22.02 | 54.15 | 210 | 300 |
| EG20 | A | 23.82 | 61.30 | 320 | 400 |
| EG30 | A | 27.03 | 70.20 | 450 | 550 |
| EG40 | A | 27.03 | 74.80 | 470 | 600 |
| EG50 | A | 30.22 | 80.15 | 650 | 750 |
| EG60 | A | 30.20 | 91.40 | 700 | 800 |
| EG70 | A | 30.00 | 105.00 | 850 | 950 |
| EG80 | A | 35.00 | 106.50 | 1200 | 1300 |
| EG90 | A | 41.00 | 108.00 | 1850 | 1950 |
| GUA21 | A | 41.00 | 118.00 | 2000 | 2100 |
| GUA20 | A | 36.04 | 89.00 | 1000 | 1100 |
| SPL70-1X | A | 34.92 | 126.10 | 1350 | 1530 |
| SPL90-1X | A | 41.28 | 126.00 | 1750 | 1900 |
| SPL140-1X | A | 49.22 | 139.00 | 3400 | 3600 |
| SPL170-1X | A | 55.00 | 165.00 | 4200 | 4350 |
| SPL250-1X | A | 60.00 | 163.00 | 4800 | 5000 |
| GGPL-14R | A | 28.60 | 66.65 | 600 | 670 |
| GGPL-35R | A | 31.80 | 81.60 | 510 | 590 |
| GGPL-44R | A | 33.28 | 67.50 | 500 | 580 |
| GGPL-55R | A | 38.91 | 109.40 | 1350 | 1450 |
| CZ101 | A | 23.80 | 61.30 | 300 | 350 |
| CZ102 | A | 27.00 | 70.00 | 430 | 480 |
| CZ116 | A | 30.03 | 82.55 | 630 | 700 |
| CZ117 | A | 27.00 | 70.12 | 430 | 480 |
| CZ119 | A | 27.00 | 81.70 | 500 | 600 |
| CZ120 | A | 27.00 | 61.90 | 400 | 450 |
| CZ121 | A | 27.00 | 81.80 | 500 | 600 |
| CZ127 | A | 27.00 | 74.60 | 450 | 500 |
| CZ170 | A | 27.00 | 80.00 | 500 | 600 |
| CZ208 | A | 30.18 | 92.08 | 680 | 780 |
| CZ210 | A | 30.18 | 106.35 | 820 | 920 |
| CA224 | A | 45.00 | 120.30 | 2250 | 2450 |
| CZ225 | A | 27.00 | 81.70 | 500 | 600 |
| CZ230 | A | 52.08 | 132.94 | 3100 | 3300 |
| CZ231 | A | 57.00 | 152.00 | 4300 | 4400 |
| CZ280 | A | 65.00 | 189.70 | 7400 | 7700 |
| PART NO | D | O | L | ORIGINAL NO | ||
| GUM-93 | 30 | 55.1 | 85 | MB000267 | S32102A | |
| GUM-71 | 44 | 129 | 14501-27000 | M44135 | UJ610 | |
| GUM-72 | 38 | 104 | 13518-22000 | M36104 | UJ613 | |
| GUM-73 | 27 | 81.75 | GPW18397 | S2782 | UJ620 | |
| GUM-75 | 31.8 | 102 | ||||
| GUM-76 | 25.02 | 77.6 | 13018-21200 | M2578A | UJ614 | |
| GUM-77 | 27 | 65.3 | ST-0008 | S2765 | UJ617 | |
| GUM-78 | 25 | 63.8 | ST-0003 | UJ619 | ||
| GUM-79 | 25 | 63.8 | ST-00024 | M2564 | UJ616 | |
| GUM-80 | 46 | 142 | 12018-01110 | M46142 | UJ612 | |
| GUM-81 | 25 | 63.8 | MB-000345 | S2765 | UJ625 | |
| GUM-82 | 38 | 104 | 13501-11010 | M38104 | UJ624 | |
| GUM-83 | 52 | 153.8 | 12019-10000 | UJ626 | ||
| GUM-84 | 26 | 68 | 18433-51700 | UJ623 | ||
| GUM-85 | 22.08 | 64.4 | MB000300 | |||
| GUM-86 | 28.52 | 77.7 | MT047756 | M2978 | UJ615 | |
| GUM-87 | 30 | 78.2 | MB000199 | UJ627 | ||
| GUM-88 | 25 | 76.5 | MB000776(0008) | |||
| GUM-89 | 22.06 | 67.5 | ||||
| GUM-90 | 46 | 148 | 14801-06001 | M46148 | UJ629 | |
| GUM-91 | 25 | 76.7 | MB000948 | M2576 |
