Quick Details
-
Brand Name:
-
HCCTG
-
Place of Origin:
-
Guangdong, China
-
Printing Method:
-
Thermal Line
-
Printing Speed:
-
100mm/s (Receipt paper); 80mm/s (Label paper)
-
Effective Printing Width:
-
48mm
-
Character per Line:
-
32
-
Paper Width:
-
57.5± 0.5mm
-
Paper Roll Diameter:
-
40mm (max.)
-
Emulation:
-
ESC/POS
-
TPH:
-
50km
-
Outline Dimension:
-
119.6 (L) X 82(W) X50.2 (H) mm
-
Certification:
-
FCC,CE,RoHS
Quick Details
-
Max Paper Size:
-
58mm
-
Black Print Speed:
-
100mm/s
-
Max. Resolution:
-
384dots/line
-
Brand Name:
-
HCCTG
-
Place of Origin:
-
Guangdong, China
-
Printing Method:
-
Thermal Line
-
Printing Speed:
-
100mm/s (Receipt paper); 80mm/s (Label paper)
-
Effective Printing Width:
-
48mm
-
Character per Line:
-
32
-
Paper Width:
-
57.5± 0.5mm
-
Paper Roll Diameter:
-
40mm (max.)
-
Emulation:
-
ESC/POS
-
TPH:
-
50km
-
Outline Dimension:
-
119.6 (L) X 82(W) X50.2 (H) mm
-
Certification:
-
FCC,CE,RoHS
Product Description
Features:
1.Light weight for taking conveniently
2.Multi-interface
3.Vehicle charger support
4.Super battery capability
5.Continuing printing when battery in charging
Technical supports:
1.Supply 12months for printer, 6months for battery warranty and long-lasting technical support.
2.Free SDK: Android/IOS/Windows Mobile/Windows CE/Blackberry / Symbian
3.Driver: Windows 98 / ME / 2000 / NT / XP / 2003 Server/Vista/Win7/Win 8,8.1/Linux/OPOS
4.OEM/ODM supported

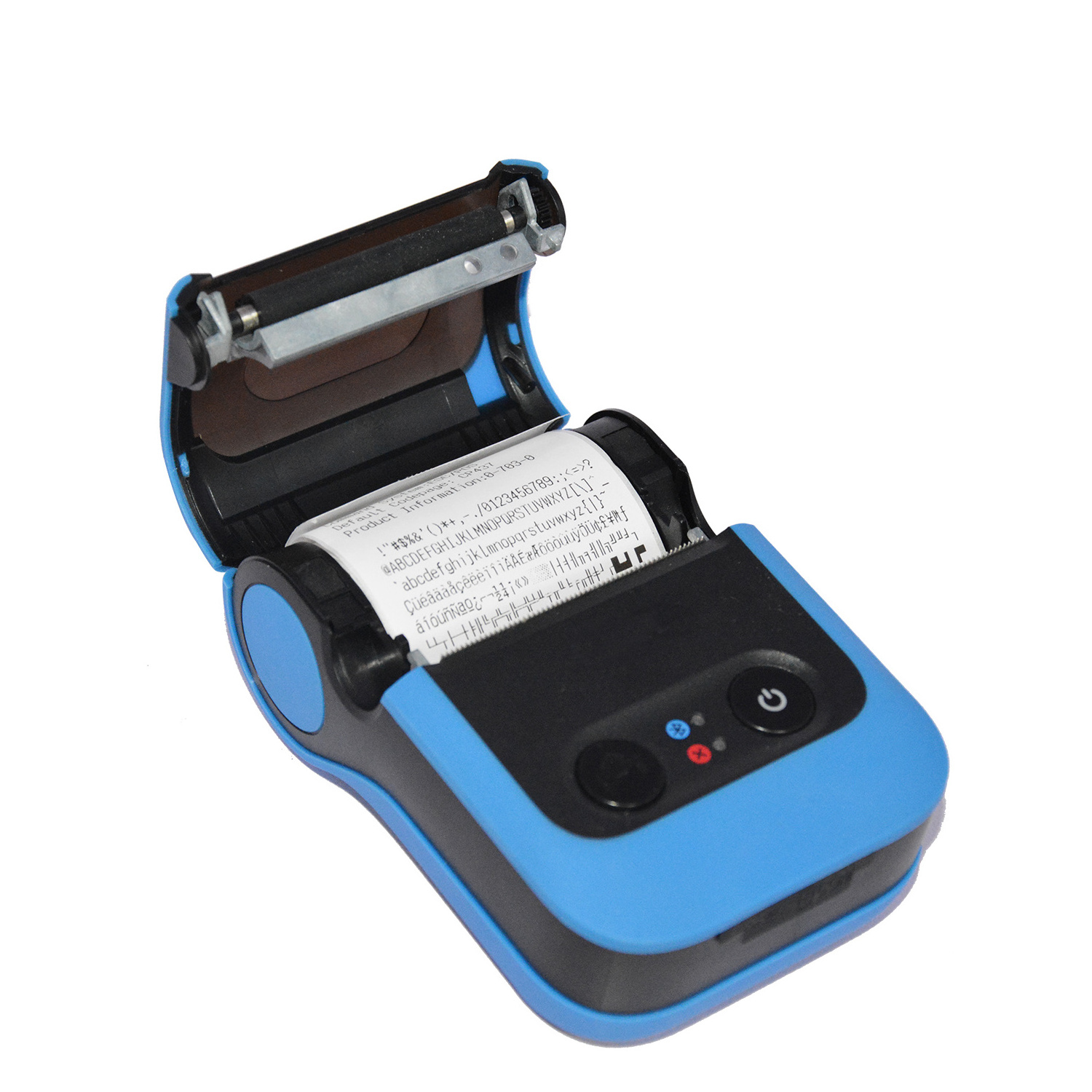

Details Images
Product Paramenters
|
Printing Method
|
Thermal Line
|
|
Resolution
|
8 dots/mm (203dpi), 384dots/line
|
|
Effective Printing Width
|
48mm
|
|
Paper width
|
58mm
|
|
Printing Speed
|
100mm/s (Receipt paper); 80mm/s (Label paper)
|
|
TPH
|
50km
|
|
Barcode
|
1D: UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODEBAR, CODE93, CODE128 2D:PDF417, QR CODE, DATA matrix
|
|
Interface
|
USB+RS232 / USB+BT
|
|
Command Set
|
ESC/POS, CPCL
|
|
Other Functions
|
Power alarm, Black-mark detection, Auto-sleep, Buzzer
|
|
Paper Type
|
Thermal Paper/ Label Paper
|
|
Paper Roll Diameter
|
Max 40mm
|
|
Paper Thickness
|
0.06mm～0.08mm
|
|
Battery
|
7.4V/1900mAh rechargeable Li-ion battery
|
|
Charger
|
8.4V/1.6A
|
|
Printing length for one charge
|
more than 90m（25％ printing density）
|
|
Standby
|
more than 6days
|
|
Paper Supply Method
|
Drop-in easy paper loading
|
|
Paper Cutting Method
|
Manual
|
|
Outline Dimension
|
119.6 (L) X 82(W) X50.2 (H) mm
|
|
Weight
|
288g（not including paper）
|
|
Operating Temp/Humidity
|
0℃～50℃/10%～80%
|
|
Storage Temp/Humidity
|
-20℃～60℃/10%～90%
|
