Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZXT
-
Voltage:
-
Customize
-
Power:
-
11KW
-
Dimension(L*W*H):
-
1.8x2.5x1.6m
-
Weight:
-
800 kg
-
Marketing Type:
-
Hot Sale Product 2022
-
Applied Materials:
-
Cardboard, grey board, corrugated paper, honeycomb paper, etc.
-
Tools Recommended:
-
Cutting tool, creasing tool grooving tool, CCD camera
-
Working Area:
-
1100x1300mm, 1600x2500mm
-
Wortking Thickness:
-
0.1-25.0mm, 0.1-50.0mm
-
Max Working Speed:
-
1200mm/s
-
Cutting Accuracy:
-
0.1mm
-
Transmission Interface:
-
Ethernet
-
Format Supported:
-
DXF, PLT
-
Drive System:
-
Servo motor, linear guide rail, rack and pinion
-
After-sales Service Provided:
-
Training, tech-support, spare parts
Quick Details
-
Production Capacity:
-
800-1000 pcs/day
-
Product Type:
-
Cardboard Box Sample Making Machine
-
Processing Type:
-
Cardboard Cutting Folding Grooving Machine
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZXT
-
Voltage:
-
Customize
-
Power:
-
11KW
-
Dimension(L*W*H):
-
1.8x2.5x1.6m
-
Weight:
-
800 kg
-
Marketing Type:
-
Hot Sale Product 2022
-
Applied Materials:
-
Cardboard, grey board, corrugated paper, honeycomb paper, etc.
-
Tools Recommended:
-
Cutting tool, creasing tool grooving tool, CCD camera
-
Working Area:
-
1100x1300mm, 1600x2500mm
-
Wortking Thickness:
-
0.1-25.0mm, 0.1-50.0mm
-
Max Working Speed:
-
1200mm/s
-
Cutting Accuracy:
-
0.1mm
-
Transmission Interface:
-
Ethernet
-
Format Supported:
-
DXF, PLT
-
Drive System:
-
Servo motor, linear guide rail, rack and pinion
-
After-sales Service Provided:
-
Training, tech-support, spare parts

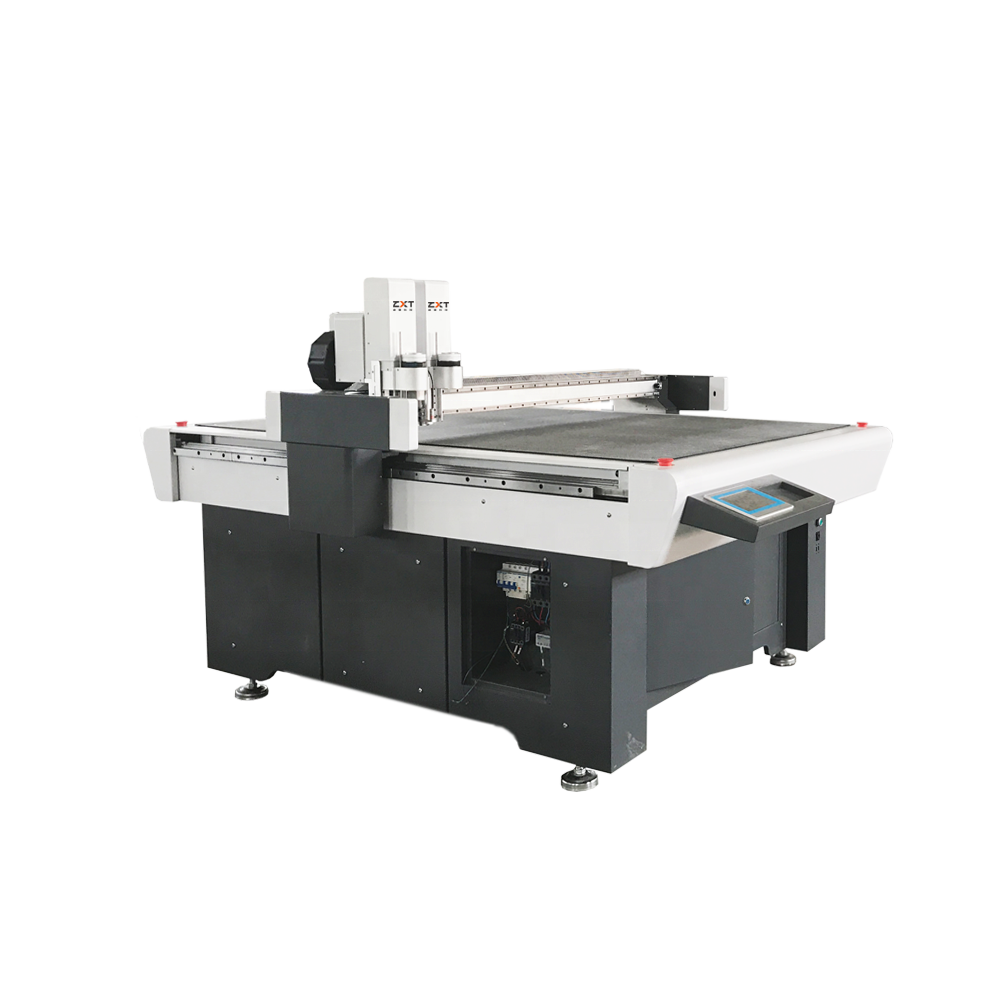

Zhuoxing CNC box sample making machine is an automatic dieless cardboard cutting, folding, grooving, marking machine, it's an ideal solution for prototyping, sample making and small-run production.
The machine works without die, any shape, any design can become a product in seconds.
Cutting controlled by computer, upload any DXF / PLT format to the machine, it will cut according to it quickly and accurately.
Dieless cutting machine supply the maximum flexibility to help our customer suit the changing requests.
|
Model
|
ZX-1113V
|
ZX-1625V
|
ZX-2030V
|
Customize
|
|||
|
Working Area
|
1100*1300mm
|
1600*2500mm
|
2000*3000mm
|
|
|||
|
Cutting Thickness
|
0.1-25.0mm, 0.1-50.0mm
|
|
|
|
|||
|
Function
|
Cutting, Creasing, V-cutting/Grooving, Positioning, Marking
|
|
|
|
|||
|
Applied Materials
|
Cardboard, grey board, corrugated paper, honeycomb paper, other paper boards, PVC, PP sheet
|
|
|
|
|||
|
Supported File Format
|
DXF, PLT
|
|
|
|
|||
|
Power Supply
|
Customized according to local power supply
|
|
|
|
|||
|
Rated Power
|
11KW
|
11KW
|
11KW
|
|
|||
