Quick Details
-
Product name:
-
1000nits monitor 12 inch
-
Aspect ratio:
-
16:9
-
Contrast ratio:
-
1000:1
-
View angle:
-
80°/80°/80°/80° (R/L/U/D)
-
Brightness:
-
1000cd/m
-
Tempered glass:
-
1.5mm~2mm
-
IP grade:
-
Front Panel IP65 waterproof
-
Working Voltage:
-
DC 12V
-
Power consumption:
-
≤35W
-
Product dimension:
-
33.5*24.2*4.4cm
Quick Details
-
Type:
-
Capacitive
-
Brand Name:
-
Sihovision
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
1000nits monitor 12 inch
-
Aspect ratio:
-
16:9
-
Contrast ratio:
-
1000:1
-
View angle:
-
80°/80°/80°/80° (R/L/U/D)
-
Brightness:
-
1000cd/m
-
Tempered glass:
-
1.5mm~2mm
-
IP grade:
-
Front Panel IP65 waterproof
-
Working Voltage:
-
DC 12V
-
Power consumption:
-
≤35W
-
Product dimension:
-
33.5*24.2*4.4cm

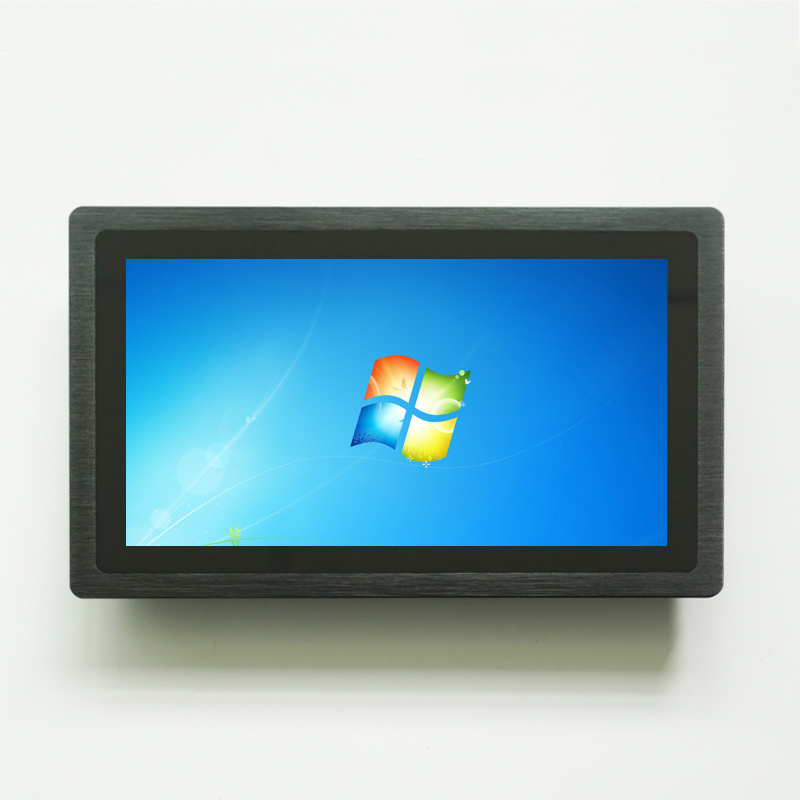

1000nits high brightness monitor 12 inch double sided touch screen computer monitor
We can customize LCD monitors to meet specific projects requirements. Please send your below request to our sales for quotation.
- Application (indoor or outdoor)
- Enclosure dimension
- Touchscreen type (capactive touch, resistive touch, IR touch, or no touch)
- Brightness (400nits, or 1000 nits sunlight readable?)
- Front panel IP65, or full IP65, or no need waterproof
Features:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof .
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5. Ultra-thin front bezel 3mm, ideal for embedded mounting.
Pictures
Drawing
Specifications
|
Model: SL12 |
|
|
LCD panel |
|
|
Panel size |
12" |
|
Resolution |
1280*800 |
|
Aspect ratio |
16:9 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
1000 nits |
|
Contrast ratio |
1000:1 |
|
View angle |
80°/80°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
Project Capacitive Touch (10 points ) |
|
Surface Hardness |
7H |
|
Luminousness |
90% |
|
Touch Interface |
USB (RS232 optional) |
|
Touch response time |
2ms |
|
Working Life |
>50 million times |
|
Touch options |
(4 or 5 wires restive touch, IR touch optional) |
|
Signal Ports |
|
|
VGA |
1x VGA |
|
DVI |
1x DVI |
|
HDMI |
1x HDMI |
|
Audio in/out |
optional |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
|
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
|
Support OS |
Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V, 50-60Hz |
|
Working voltage |
DC 12V |
|
Power consumption |
≤ 35W |
|
Enclosure |
|
|
Material |
Aluminum Alloy |
|
Color |
Black, white, Silver, color can be customized |
|
VESA mounting |
75×75mm/100×100mm |
|
IP grade |
front panel IP65 waterproof |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage: -20 to 80°C |
|
Relative humidity |
operating: 10% to 80% , storage: 5% to 90% |
|
Packing Details |
|
|
Net weight |
1.5kg |
|
Gross weight |
2kg |
|
Product Dimension |
33.5*24.2*4.4cm |
|
Packing size |
43*38*18cm |
|
Accessories |
Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card |
|
Other |
|
|
Mounting |
embedded mounting screws |
|
wall mounting brackets (optional) |
|
|
desk stand holder (optional) |
|
|
Warranty |
1 year warranty |
|
Certificates |
CE,FCC,RoHS |
