PRODUCTS DESCRIPTION

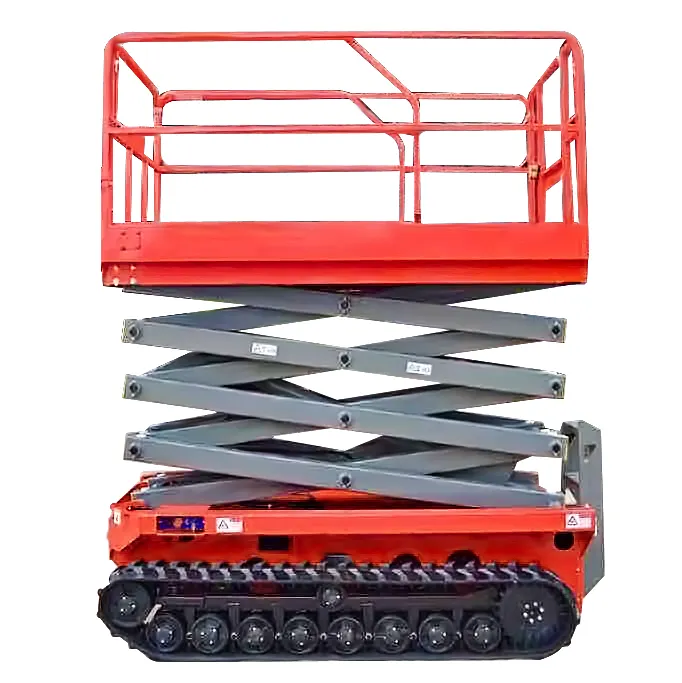

High quality self operation hydraulic scissor lifting platform for sale
This aerial lift platform is characterized by its compactness, flexibility and convenience. Instead of scaffolding, you can use one lift platform to reach the height you need and solve your problems. At the same time, it will save you money and valuable time.
It makes many difficult and dangerous jobs easier, for example: interior and exterior cleaning (ceilings, curtain walls, glass windows, eaves, canopies, chimneys, etc.), installation and maintenance of billboards, installation and maintenance of street lights and traffic signs, etc.
Hydraulically driven self-propelled lifting platforms have the following features:
1、Safety certification
Conforms to the EU EN280 standard and has obtained CE certification.
2、Aerial work can be walked
The scissor fork self-propelled aerial working platform, which has the function of automatic walking, can walk quickly and slowly in different working conditions, only one person can operate the machine to continuously complete the lifting, forward, backward, turning and other actions when working at height, which greatly improves the working efficiency and reduces the number of operators and labour intensity compared with the traditional hydraulic platform. It is particularly suitable for continuous work at height in a large area such as airport terminals, stations, docks, shopping malls, stadiums, community properties, factories, mines and workshops.
3、Stepless variable speed
Only one person is required to operate the machine, all movements are controlled on the workbench with the operating handle and the motor is steplessly variable speed. It effectively extends the service life of the battery and the motor, and the motor only consumes energy when working.
4、Extended platform
The platform can be moved out to expand the working range and can meet the special needs of some users
5、Green and environmental protection
As the machine is powered by DC battery, this machine can be safely and quietly suitable for indoor or outdoor work.
Product Paramenters
|
Model (self-propelled hydraulic drive)
|
GTJZ12
|
|
Max. working height
|
13.8m
|
|
Max. platform height
|
11.8m
|
|
Safe working load
|
320kg
|
|
Extended platform safe working load
|
113kg
|
|
Working platform dimensions (L x W x H)
|
2.29×1.13×1.1m
|
|
Overall machine dimensions (L x W x H. guardrail not folded)
|
2495*1187*2585mm
|
|
Overall machine dimensions (L x W x H. guardrail folded)
|
2495*1187*2050mm
|
|
Tabletop extension dimensions
|
0.9m
|
|
Lifting speed
|
3-5m/min
|
|
Machine travel speed (stowed)
|
3.5km/h
|
|
Machine travel speed (lifting)
|
0.8km/h
|
|
Battery
|
4×12V/300ah
|
|
Overall weight
|
2895kg
|
