Quick Details
-
Brand Name:
-
KURASHIKI KAKO
-
Model Number:
-
P6-09
Quick Details
-
Warranty:
-
Pls contact us
-
Customized support:
-
Pls contact us
-
Place of Origin:
-
Japan
-
Brand Name:
-
KURASHIKI KAKO
-
Model Number:
-
P6-09
Products Description

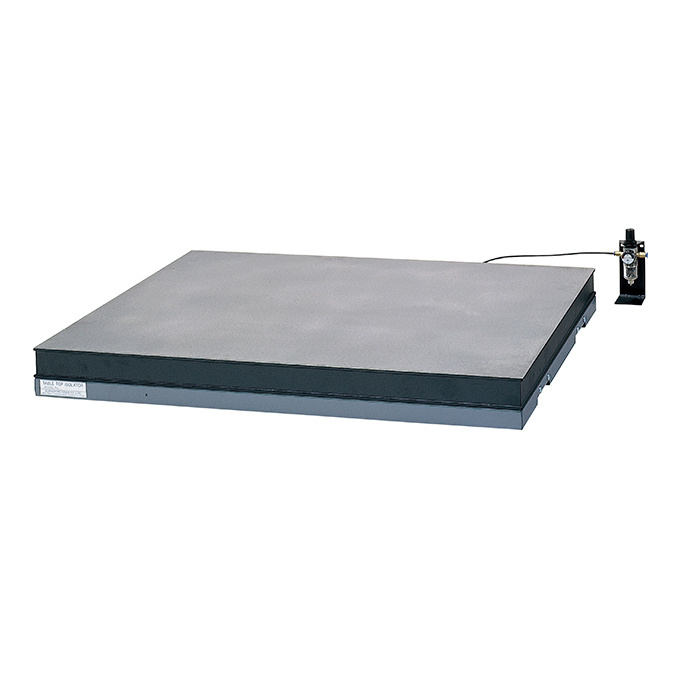

Desktop vibration isolation bench for optical experiments using the aluminum honeycomb surface plate
・An aluminum honeycomb surface plate is used
・Special small air springs are used
・2 types which can be selected depending on the place of installation
|
<Specifications>
|
|
|
||
|
Product number
|
52S-0806A
52S-0806M
|
52S-1007A
52S-1007M
|
||
|
Natural frequency
|
Vertical：2.5Hz
|
|
||
|
Leveling system
|
A type：Auto leveling(operated by compressed air or nitrogen of 0.3～0.7Mpa(3～7kgf/cm2)) /
M type ：Manual leveling operated by hand pump
|
|
||
|
Dimension (mm)
|
800x600x94
|
1000x700x94
|
||
|
Surface plate material
|
Alminium honeycomb：Upper plate Magnetized stainless steel SUS430 5t, Lower plate Magnetized stainless steel SUS430 4t
|
|
||
|
Tap specification of upper face of surface plate
|
Tap：N/A / M6x50mm pitch / m6x25mm the pitch can be selected.
|
|
||
|
Maximum loading weight(kg)
|
120
|
100
|
||
|
Weight(kg)
|
56
|
73
|
||
|
Accessories
|
A type：Regulator with fillter, Soft nylon tube 6mmx3m,tube joint(R1/4) / M type ：Hand pump
|
|
||
|
Optional accessories
|
Air compressor
|
|
||
|
* for equipment with large offset loads or high center of gravity, please contact us for consultation
* In the case of Type M, the height changes as the temperature fluctuates. Check for any extension before use.
|
|
|
||
Product Usage
Major applications
・Optical experiment using optical fibers
・Other optical experiments for short optical paths
・Laser optical experiment
・Interferometer
・FTIR spectroscope
This product is used in laboratories etc.
Kurashiki Kako is a manufacturer of anti-vibration rubber mounts, including automotive parts, and our products support your safe and pleasant lives.
To respond to the needs of anti-vibration products in the society, Kurashiki Kako has been extending our business of such field.
As a result, we now have a product family which control vibrations from nano-meter scale micro vibrations to giant earthquakes of intensity 7. We continue to grow as a vibration solution provider.
