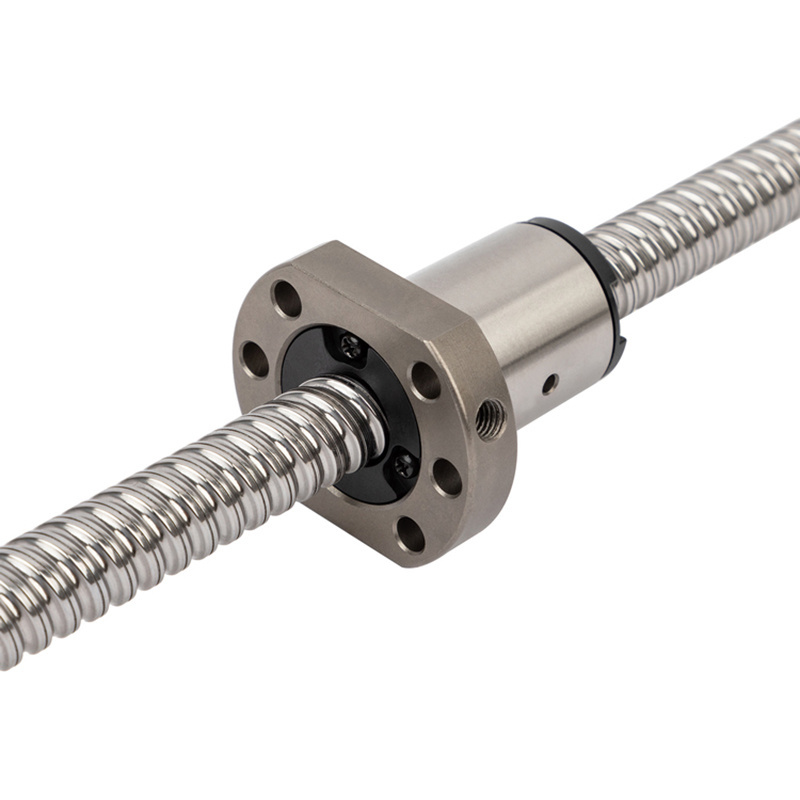

SHAC Ball screw SFI SFS SFY Series HIWIN Ball Screw for CNC Machinery

SHAC Ball screw SFI SFS SFY Series HIWIN Ball Screw for CNC Machinery

FOB Reference Price: Get Latest Price

≥10 Pieces

US $14.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Length:: 6000mm

Place of Origin:: Zhejiang, China

Brand Name:: SHAC

Product name:: High Precision Ball Screw

Application:: Automatic System

Structure:: Ball Screw + Nut+Nut Housing+Support +coupling

Nut type:: Single Nut$ Double Nut

Type:: SFU DFU SFE SFI SFS

Feature:: High Accuracy

Service:: ODM OEM

Thread direction:: L/R

Grade:: C5/C7/ C10

Lead:: 4mm 5mm 10mm 20mm

Quick Details

Weight (KG):: 0.8

Marketing Type:: Hot Product 2023

Material:: 50CRMO4

Length:: 6000mm

Place of Origin:: Zhejiang, China

Brand Name:: SHAC

Product name:: High Precision Ball Screw

Application:: Automatic System

Structure:: Ball Screw + Nut+Nut Housing+Support +coupling

Nut type:: Single Nut$ Double Nut

Type:: SFU DFU SFE SFI SFS

Feature:: High Accuracy

Service:: ODM OEM

Thread direction:: L/R

Grade:: C5/C7/ C10

Lead:: 4mm 5mm 10mm 20mm

Diagram of the working principle of the ball screw

The ball screw pair is to place an appropriate amount of rolling elements between the screw and the screw groove of the nut as an
intermediate transmission body, and with the help of the ball return device, it constitutes a screw drive mechanism in which the
ball circulates infinitely in a closed loop. As shown in the following figure. When the screw or nut turns, the ball is pushed to
form a repeated cyclic movement of the ball chain in a closed circuit

Feature

1. Space saving nternal circulate design
2. Low friction force with 1/3 over acme screw
3. Ensure for high accuracies
4. Micro feed with tolerance within in 0.1μm
5. Zero backlash, high stiffness.
