Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YIHUI
-
Year:
-
2019
-
Voltage:
-
3 phase 200V~415V optional
-
Dimension(L*W*H):
-
Accordingly
-
Weight (T):
-
7.8 T
-
Model Number:
-
YHA3
-
Motor Power (kw):
-
24.5 kw
-
CNC or Not:
-
CNC
-
Power Source:
-
Hydraulic
-
Force available:
-
200 ton ~ 1500 ton
-
Structure:
-
Four column
-
Usage:
-
Metal processing
-
Function:
-
Cold forging, stamping, extruding, forming, etc.
-
Control:
-
Servo motor
-
Type:
-
Automatic/ semi-automatic
-
Term:
-
Manufacturer
-
Advantage:
-
Custom-made available
Quick Details
-

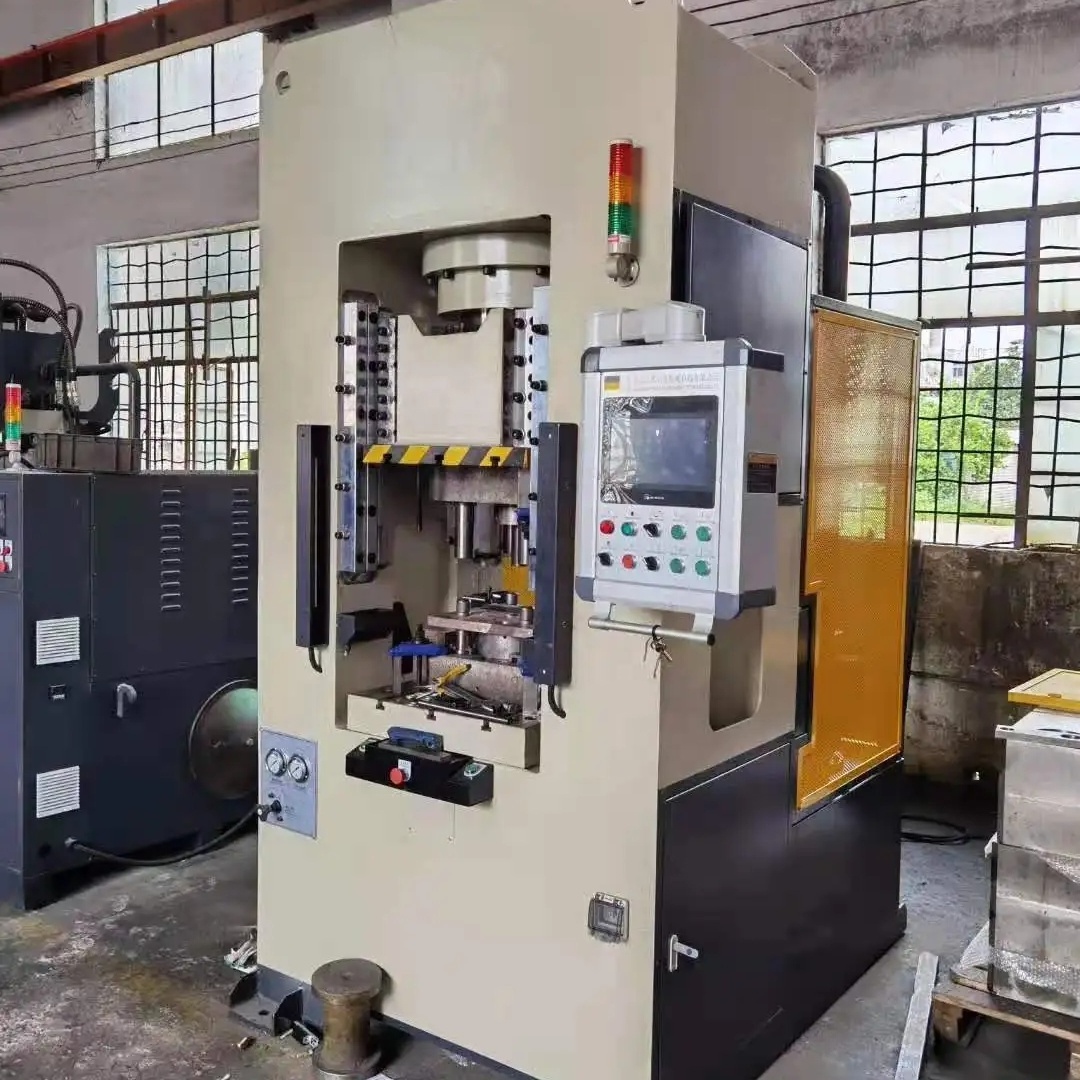

Machine Type:
-
H Frame Hydraulic Press
-
Slide Stroke (mm):
-
350
-
Return Force (kN):
-
400 kN
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YIHUI
-
Year:
-
2019
-
Voltage:
-
3 phase 200V~415V optional
-
Dimension(L*W*H):
-
Accordingly
-
Weight (T):
-
7.8 T
-
Model Number:
-
YHA3
-
Motor Power (kw):
-
24.5 kw
-
CNC or Not:
-
CNC
-
Power Source:
-
Hydraulic
-
Force available:
-
200 ton ~ 1500 ton
-
Structure:
-
Four column
-
Usage:
-
Metal processing
-
Function:
-
Cold forging, stamping, extruding, forming, etc.
-
Control:
-
Servo motor
-
Type:
-
Automatic/ semi-automatic
-
Term:
-
Manufacturer
-
Advantage:
-
Custom-made available
Machine Parts
Product Application
1) Cold extrusion molding and stamping for LED radiator, auto spare parts, cellphone casing and hardware tools, etc.
2) Molding and stamping for metallic and non-metallic.
Technical Characteristics
1) Using Taiwan imported hydraulic system with high precision design, safe and reliable;
2) Pressure, stroke and holding pressure can be adjusted according to processing requirement.
3) Four columns are made of alloy steel with high strength, being hard chrome plated and good wearing resistance.
4) The active plate and the worktable are provided with an optional material returned cylinder, which is suitable for the material returning requirement of the cold extrusion product.
5) Designed with PLC programming circuit, touch screen action optional operation, to achieve digital control.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
|
Size
|
Accordingly
|
|
|
Weight
|
Accordingly
|
|
|
Packaging Details
|
The normal package is wooden case(Size: L*W*H). The wooden case will be fumigated if needed.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
