2.Upper guard plate
3.fixed jaw plate
4.sewing jaw plate
5.Bottom guard plate
6.Machine stand
7.Movable jaw
8.Adjusting seat
9.spring
10.toggle plate
11Bracket pad
12.Move the jaw lever
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Guran
-
Weight:
-
2000 KG
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Mobile Jaw Crusher
-
Color:
-
Customer Requirement
-
Processed Materials:
-
200 Kinds Materials(<300 Mpa)
-
Function:
-
Material Crusher
-
Usage:
-
Mining Crushing Stone Crusher
-
Output size:
-
10-30mm
-
Installation:
-
Guide
Quick Details
-
Application:
-
mining used
-
Capacity(t/h):
-
15-20t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Guran
-
Weight:
-
2000 KG
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Mobile Jaw Crusher
-
Color:
-
Customer Requirement
-
Processed Materials:
-
200 Kinds Materials(<300 Mpa)
-
Function:
-
Material Crusher
-
Usage:
-
Mining Crushing Stone Crusher
-
Output size:
-
10-30mm
-
Installation:
-
Guide
Product Overview

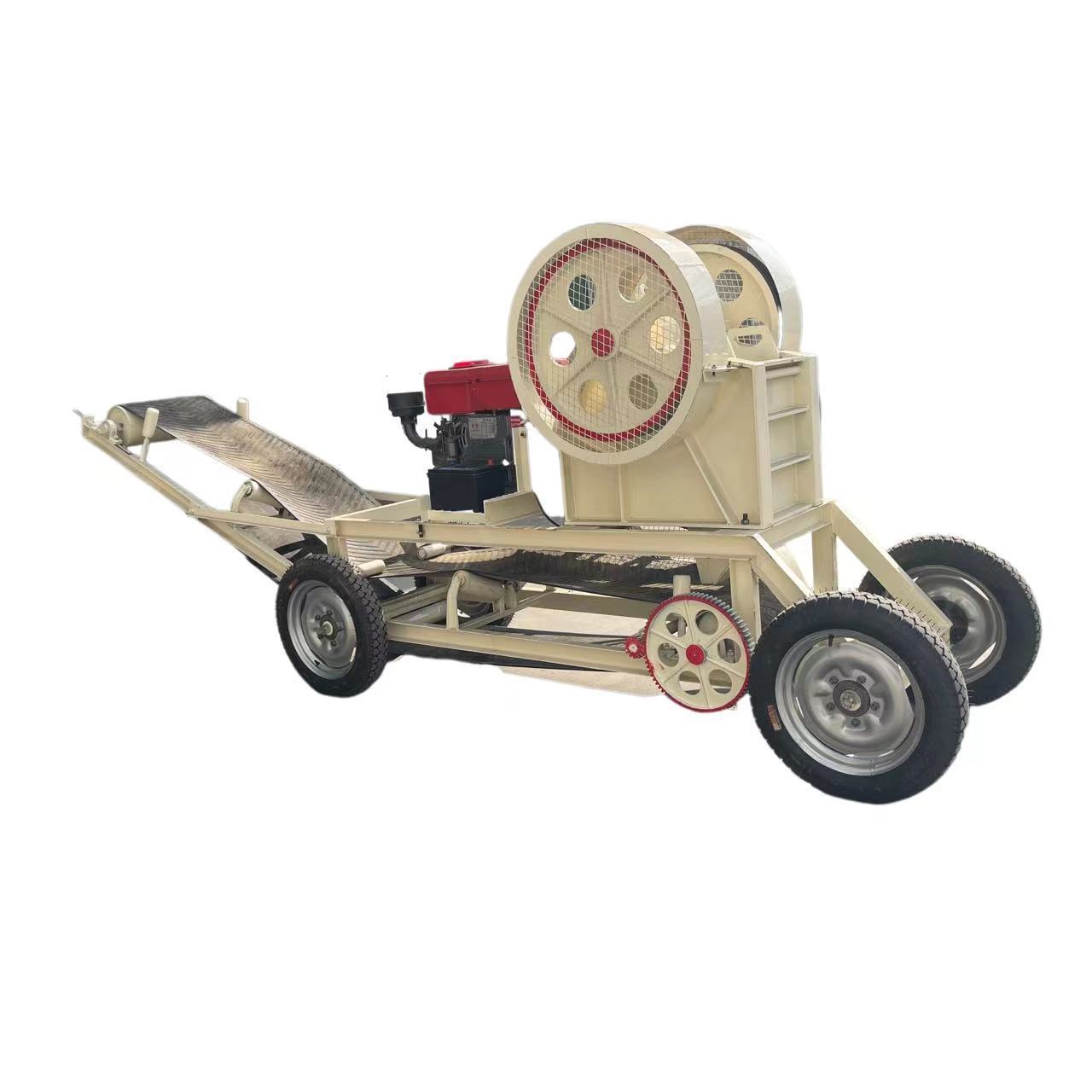

Mobile Jaw Crusher Pe 250*400 Mobile Jaw Crusher Machine On Sale Equipment
Mini Mobile Jaw Crushers are compact and portable crushing devices designed for performing crushing tasks in confined spaces. These petite jaw crushers boast excellent maneuverability, making them suitable for various job sites and projects. Equipped with efficient diesel engines, these devices deliver reliable performance, establishing themselves as an ideal choice in the field of stone crushing.
FEATURES AT A GLANCE
Suitable for coarse, medium and fine crushing of all kinds of ores and rocks
cobblestone
▼▼▼
iron ore
▼▼▼
gray stone
▼▼▼
Working principle of jaw crusher
The working mode of a jaw crusher involves grinding and extrusion. Its working principle is as follows: the eccentric wheel movesthe jaw up and down. When the jaw rises close to the fixed jaw plate, the material is crushed or split. As the moving jaw goesdown, the angle between the elbow plate and the moving jaw decreases. The moving jaw plate then leaves the fixed jaw plate due tothe action of the pull rod and spring.
Details Images
2.Upper guard plate
3.fixed jaw plate
4.sewing jaw plate
5.Bottom guard plate
6.Machine stand
7.Movable jaw
8.Adjusting seat
9.spring
10.toggle plate
11Bracket pad
12.Move the jaw lever
PRODUCT SPECIFICATIONS
We have a complete range of models to meet your needs
|
Type
|
Feed Opening(mm)
|
Max.feeding size (mm)
|
Capacity(th)
|
Motorpower(kw)
|
Totaweigh(t)
|
Dimensions(LW*H)(mm)
|
|
PE150x250
|
150x250
|
130
|
1-3
|
4 pole 5.5 kw
|
0.5
|
760x700x860
|
|
PE200x300
|
200x300
|
180
|
2-6
|
4 pole 7.5 kw
|
0.8
|
915x780x990
|
|
PE200x350
|
200x350
|
180
|
3-10
|
4 pole 11 kw
|
1.2
|
1000×914×1112
|
|
PE250x400
|
250x400
|
210
|
15-20
|
4 pole 15 kw
|
2
|
1100x1032x1285
|
|
PE400x600
|
400x600
|
350
|
40-50
|
6 pole 30 kw
|
6
|
1620x1730x1600
|
|
PE500x750
|
500x750
|
425
|
60-80
|
6 pole 55 kw
|
9.5
|
1920x1850x1920
|
|
PE600x750
|
600x750
|
480
|
80-100
|
6 pole 55 kw
|
11
|
2020x1850x1920
|
|
PE600x900
|
600x900
|
500
|
100
|
6 pole 75 kw
|
16.5
|
2530x1900x2340
|
|
PE750x1060
|
750x1060
|
630
|
130-150
|
6 pole 90 kw
|
25
|
2680x2380x2785
|
|
PE150x750
|
150x750
|
120
|
15
|
4 pole 15 kw
|
2.7
|
1200x1530x1060
|
|
PE250x750
|
250x750
|
210
|
20-30
|
6 pole 22 kw
|
5
|
1380x1750x1540
|
|
PE250x1000
|
250x1000
|
210
|
40
|
6 pole 30 kw
|
6
|
1560x1950x1390
|
|
PE250x1200
|
250x1200
|
210
|
50
|
6 pole 37 kw
|
7.5
|
2140x1660x1500
|
|
PE300x1300
|
300x1300
|
250
|
50-60
|
6 pole 55 kw
|
11.5
|
2720x1950x600
|
If the above models do not meet your requirements, you can contact us, because we are a manufacturing plant, can customize the machine according to your requirements.
Paking & Delivery
We have a wealth of overseas delivery and work experience
All the wear out spare parts are packed by plastic films and wooden boxes.
FCL: Shipping by standard exporting container.
LCL :Poly wood case.
LCL :Poly wood case.
Why Choose Us
We have sufficient supply and rich field experience
Each equipment is strictly tested before leaving the factory to ensure that customers receive high-quality and reliable products.Customer satisfaction is our ultimate goal, we have established a perfect pre-sale, sale, after-sales service system.
