Quick Details
-
Model Number:
-
LCMT04L02ZB-60M01330B+LCDA4-04B202-LB632
-
Frequency:
-
50-60hZ
-
Certification:
-
ce
-
Power Supply:
-
1phase AC220v
-
Made by:
-
Lichuan
-
Holding torque:
-
1.27Nm
-
Peak torque:
-
3.8Nm
-
Rated speed:
-
3000rpm
-
Encoder type:
-
Incremental 2500ppr
-
servo driver control:
-
pulse + direction, CW/CCW, AB pulse, total three pulse modes
-
analog voltage:
-
-10V to +10v
-
MODBUS bus control:
-
support
Quick Details
-
AC Voltage:
-
208-230 / 240 V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lichuan
-
Model Number:
-
LCMT04L02ZB-60M01330B+LCDA4-04B202-LB632
-
Frequency:
-
50-60hZ
-
Certification:
-
ce
-
Power Supply:
-
1phase AC220v
-
Made by:
-
Lichuan
-
Holding torque:
-
1.27Nm
-
Peak torque:
-
3.8Nm
-
Rated speed:
-
3000rpm
-
Encoder type:
-
Incremental 2500ppr
-
servo driver control:
-
pulse + direction, CW/CCW, AB pulse, total three pulse modes
-
analog voltage:
-
-10V to +10v
-
MODBUS bus control:
-
support
Packing List
|
NO.
|
Product Name
|
Model / Description
|
Quantity
|
|
1
|

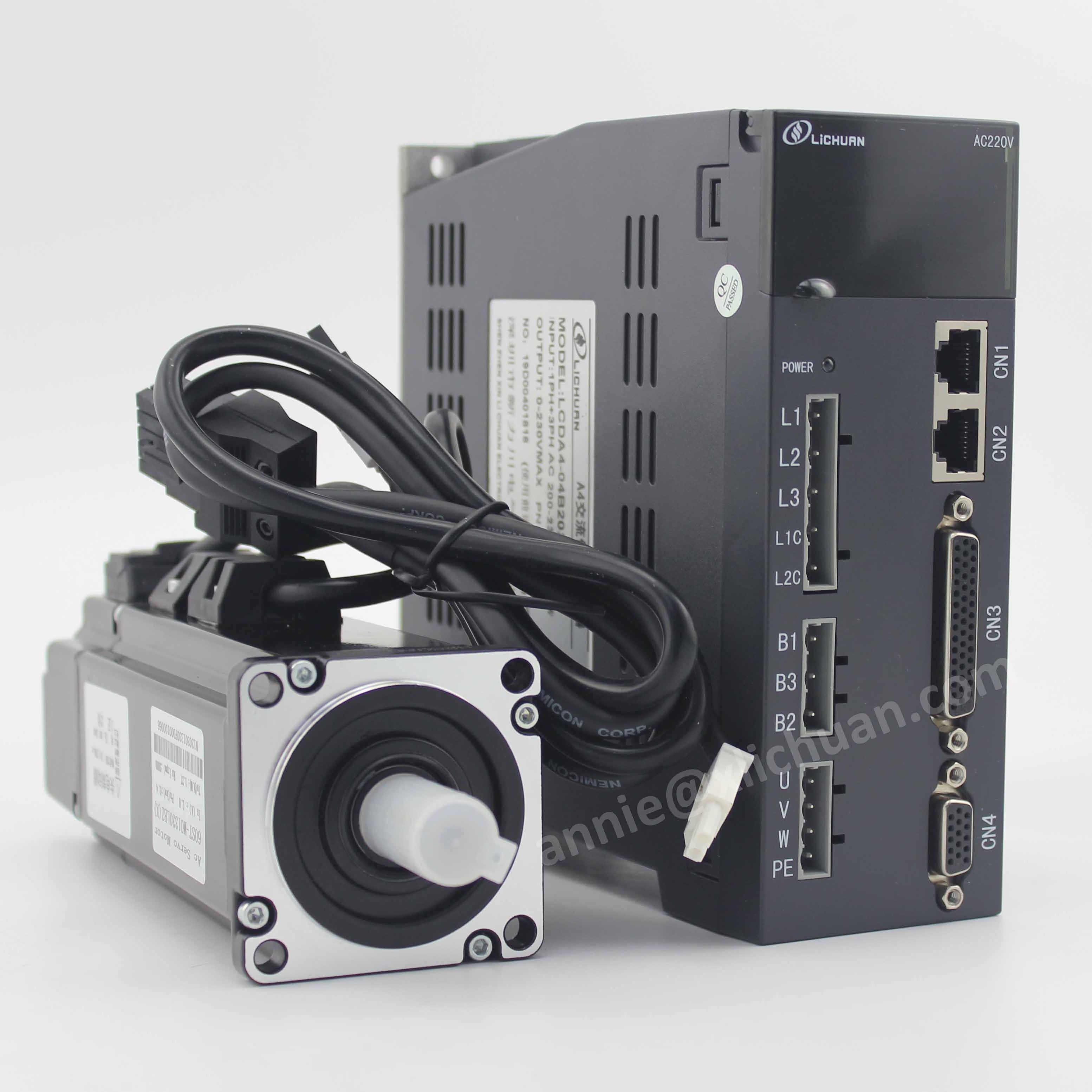

Lichuan 400W 60M01330ZB Servo Motor
|
60M01330ZB
|
1
|
|
2
|
Lichuan 400W AC Servo Driver
|
LCDA4-04B202-LB632
|
1
|
|
3
|
Motor Cable
|
Standard (3m)
|
1
|
|
4
|
Encoder Cable
|
Standard (3m)
|
1
|
|
5
|
Servo Driver Instruction Book
|
Standard
|
1
|
Products Description
|
Input power
|
Control power
|
Single phase 220VAC
|
|
|
|
Main power
|
Single-phase/three-phase 220VAC
|
|
|
Working
environment |
Temperature
|
0 ~ 45°C
|
|
|
|
Humidity
|
≤90% RH or less, no condensation
|
|
|
|
Altitude
|
Altitude ≤1000m
|
|
|
|
Installation Environment
|
No corrosive gas, flammable gas, oil mist or dust, etc.
|
|
|
|
Installation method
|
Vertical installation
|
|
|
Encoder feedback
|
|
2500 p/r (resolution: 10000), incremental encoder
|
|
|
Control signal
|
Digital input
|
10 ordinary digital inputs, with configurable functions.
|
|
|
|
Digital output
|
6 digital outputs, with configurable functions.
|
|
|
Pulse signal
|
Input
|
2 high-speed inputs: differential (600K) and single-ended (200K) pulses. Support pulse input mode:PULS+DIR, A+B, CW+CCW
|
|
|
|
Output
|
3 high-speed pulse outputs, output signal form: 5V differential signal. 1 channel Z signal single-ended output signal.
|
|
|
Analog signal
|
Input
|
2 analog inputs, 12-bit resolution, input range -10～+10V. AI2 is fifixed as the torque limit input.
|
|
|
|
Output
|
None
|
|
|
Communication function
|
|
RS485 communication, Modbus protocol. The main controller can control the position/speed/torque of the servo through RS485, up to 32 control stations
|
|
|
Display panel and key operation
|
|
5 buttons (Mode, Set, Left, Up, Down) and 6 digital tubes
|
|
|
Regenerative discharge braking resistor
|
|
Built-in 100W, 40Ω braking resistor. In frequent braking situations, an external braking resistor is required.
|
|
