Production line dry wet pet pellet processing automatic dog food making machine extruder extrusion small kibble dog food machine

1.1 Pet food/dog food/animal feed/fish feed Introduction

Small kibble dog food machine is used to produce different kinds of pet food, floating fish feed and sinking feed. Small kibble dog food machine works with simple opeation, accurate parameter control. The products can be finished in the stipulated temperature, pressure, humidity and time. Owing to the reasonable design,special materials, the staility, repairs can be guaranteed and ensured. The various shape and taste must meet the different requirements of pet food.

1.2 The different whole line of pet food/dog food/animal feed/fish feed

Mixer→Screw conveyor→Twin- screw extruder→Air conveyor→Dryer→Flavoring Line→Cooling machine

1.3 Voltage

Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.

1.4 Raw materials of pet food/dog food/fish feed/animal pellet

Adopts c o rn powder/rice powder/wheat flour/meat as raw materials meanwhile mixing with water and oil.

1.5 Capacity

100-3500kg/h(Production line dry wet pet pellet processing automatic dog food making machine extruder extrusion small kibble dog food machine )

1.6 Samples of pet food/fish feed/animal pellet

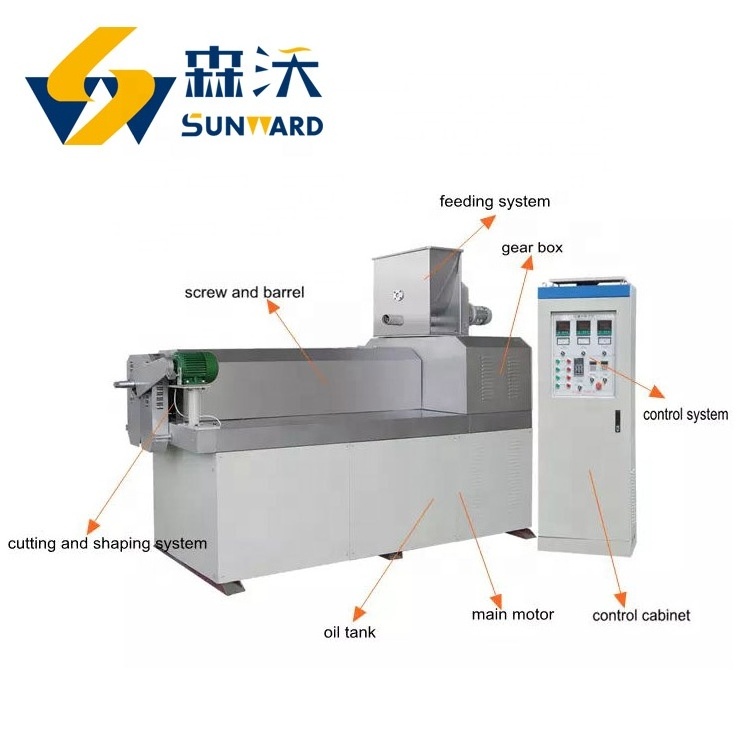

2.1 Twin-screw extruder

1.The main extruder adopts frequency speed controlling with high automation.
2.The screws are made of the stainless steel and special craft , which has the advantage of durable usage, high pressure,and longer life.
3.The forced lubrication system ,which can guarantee the equipment transmission life longer.
4. Auto-temperature control system and self-cleaning ,which makes it more convenient.
5.It has the widest range of applications and can produce different products with different equipment and models.

2.2 Multi-layer dryer

1.We have four types of dryers , which includes fuel ovens, gas ovens, electric ovens, and high temperature inflated ovens (used to produce corn flakes).
2.The electric oven has three layers of five meters / five layers of five meters / five layers of eight meters / seven layers of eight meters / seven layers of eleven meters, etc., each layer has electric heating tubes , the purpose is to be more evenly heated.
3.Dryer is compact, has small dry area and a largesuperficial area. It also features small scale of heat elimination and high thermal effciency.
4.Mesh belt conveyors and thermal insulation boards all use stainless steel material , making the equipment clean and sanitary.
5. The speed of mesh belt conveyor is adjustable , the drying period for food in the oven can be adjusted.
6. The automatic temperature control system makes it possible to set the temperature according to your needs.

2.3 Double roller flavoring line

1.Spraying the oil in the roller.

2.The inside turning container is very sanitary because of adopting the stainless steel material .

3. Material touching food is stainless steel.

4. The inside of the roller is also uneven , the main purpose is to more evenly season .

2.4 Cooling machine

1.General length is 5 meters, but we can made it according to our customers' requirement.
