Quick Details
-
Model Number:
-
1/2 to 12 inch, DN10 to DN300
-
Brand Name:
-
COMPASS
-
Standard:
-
SMS,DIN,3A
-
Material Contact Parts:
-
SS304/SS316L(1.4301/1.4404)
-
Material Non-contact Parts:
-
SS304(1.4301)
-
Size:
-
1/2 to 12 inch, DN10 to DN300
-
Connection:
-
Butt-weld,Tri-clamp,Thread,Union,Weld-Thread,Flange
-
Seal Material:
-
Silicone,EPDM,FKM,Buna,PTFE
-
Working Pressure:
-
≤10bar(145psi)
-
Supply Pressure for Air Actuator:
-
5~8(72.52psi~116psi)
-
External Surface Treatment:
-
Ra32~64ui n(o.8~1.6um)
-
Internal Surface Treatment:
-
Ra16~32uin(0.4~0.8um)
Quick Details
-
Port Size:
-
1/2 to 12 inch, DN10 to DN300
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
1/2 to 12 inch, DN10 to DN300
-
Brand Name:
-
COMPASS
-
Standard:
-
SMS,DIN,3A
-
Material Contact Parts:
-
SS304/SS316L(1.4301/1.4404)
-
Material Non-contact Parts:
-
SS304(1.4301)
-
Size:
-
1/2 to 12 inch, DN10 to DN300
-
Connection:
-
Butt-weld,Tri-clamp,Thread,Union,Weld-Thread,Flange
-
Seal Material:
-
Silicone,EPDM,FKM,Buna,PTFE
-
Working Pressure:
-
≤10bar(145psi)
-
Supply Pressure for Air Actuator:
-
5~8(72.52psi~116psi)
-
External Surface Treatment:
-
Ra32~64ui n(o.8~1.6um)
-
Internal Surface Treatment:
-
Ra16~32uin(0.4~0.8um)
Product Description
Applications

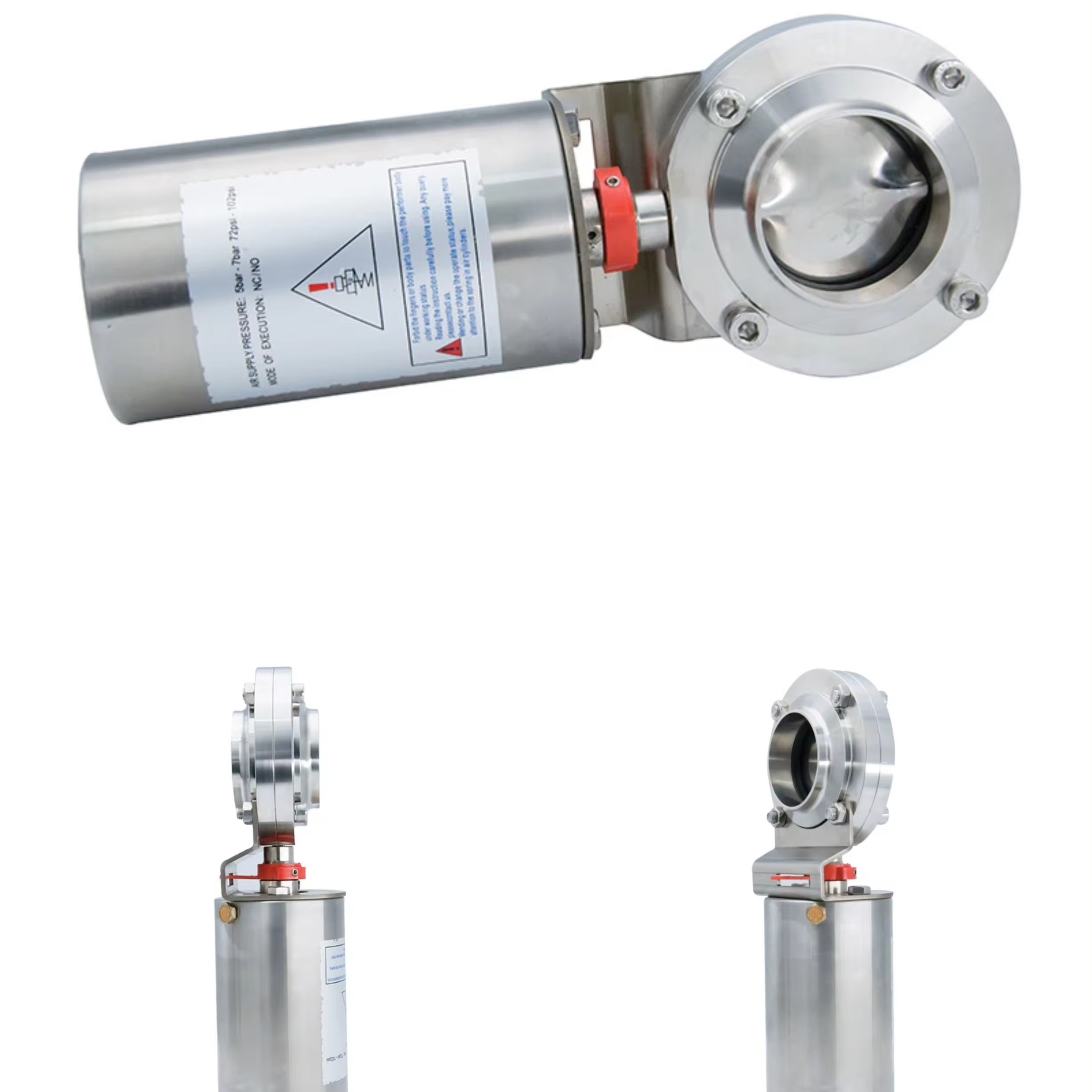

DN32 Stainless Steel High Temperature Pneumatic Weld Butterfly Valve with SS304 Grade
Sanitary Butterfly valve can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-effect, double-effect, and modulating. They can be fitted with control tops and proximity. It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Specification
|
Standard
|
SMS,DIN,3A
|
|
|
|
Material Contact Parts
|
SS304(1.4301)/SS316L (1.4404)
|
Provided with material inspection report
|
|
|
Material Non-contact Parts
|
SS304(1.4301)
|
|
|
|
Size
|
1/2 to 12inch, DN10 to DN300
|
|
|
|
Connection
|
Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange
|
Female Threaded, Socket, Welded, Flange
|
|
|
Seal Material
|
Silicone,EPDM,FKM,Buna,PTFE,All seals material comply with FDA21CFR117.2600
|
|
|
|
Drive Option
|
2-position SS Pull Handle, 3-position SS Pull Handle, 4-position SS Pull Handle, Multi-position Plastic Gripper Handle, Multi-position SS Gripper Handle
|
|
|
|
|
SS Pneumatic Actuator, Aluminum Pneumatic Actuator, Electric Actuator
|
|
|
|
|
Position Sensor, C-top Controller, C-top Controller (AS-I)
|
|
|
|
Working Pressure
|
≤10bar(145psi)
|
|
|
|
Supply Pressure for Air Actuator
|
5~8(72.52psi~116psi)
|
|
|
|
Internal Surface Treatment
|
Ra16~32uin(0.4~0.8um)
|
|
|
|
External Surface Treatment
|
Ra32~64uin(o.8~1.6um)
|
|
|
Design Features
1.Various standards can be provided: SMS,DIN,3A
2.Available in sizes from 1/2”to 12”，DN10 to DN300
3.Multi position handles can be used for valves up to DN150 / 6"
4.Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
5.Pneumatic actuator and electric actuator are interchangeable.
6.Pneumatic actuator can be double acting or single acting
7.Seals comply with FDA 21CFR 177. 2600.
8.The valve body can be customized with a wide selection of different connections.
2.Available in sizes from 1/2”to 12”，DN10 to DN300
3.Multi position handles can be used for valves up to DN150 / 6"
4.Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
5.Pneumatic actuator and electric actuator are interchangeable.
6.Pneumatic actuator can be double acting or single acting
7.Seals comply with FDA 21CFR 177. 2600.
8.The valve body can be customized with a wide selection of different connections.
Application
It is applied in industry and sanitary system. Good sealing,no leak,in the oil, chemical industry, water conservancy,electric power, boiler, machinery, metallurgy, sanitary, construction etc
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargos,which be packed by strongly seaworthy plywooden cases .
In order to protective items , which will be packed by safety and resistance to shock in plywooden cases .
.
