Quick Details
-
Brand Name:
-
YUYE
-
Model Number:
-
YGLR-400
-
Max. Current:
-
1250A
-
Type:
-
YGLR
-
Pole:
-
3P/4P
-
Copper material:
-
T3
-
Rated current:
-
63-1250A
-
Rated voltage:
-
AC 400/690V
-
Fuse:
-
have or no ,client select
-
operation type:
-
inner operation / outside operation
-
Market:
-
Middle East, south Africa, American
-
Warranty period:
-
12 months
-
MOQ:
-
1 Set
-
Certification:
-
CCC/CE/ISO9001
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUYE
-
Model Number:
-
YGLR-400
-
Max. Current:
-
1250A
-
Type:
-
YGLR
-
Pole:
-
3P/4P
-
Copper material:
-
T3
-
Rated current:
-
63-1250A
-
Rated voltage:
-
AC 400/690V
-
Fuse:
-
have or no ,client select
-
operation type:
-
inner operation / outside operation
-
Market:
-
Middle East, south Africa, American
-
Warranty period:
-
12 months
-
MOQ:
-
1 Set
-
Certification:
-
CCC/CE/ISO9001
Why Choose Us
Our advantage
One Two Three ELectric Co.,Ltd is the biggest ATS,LOAD BREAKER,CIRCUIT BREAKER manufacturer in China - more than 300 companys make OEM,ODM order from us.
Rich Experience
Our factory was founded in 2004, have a long history in manufacturing and We have export to all over the world till now, The total Annual sales is about USD17,000,000.We firmly promise to top quality, competitive price, quick delivery and good before/after sales services. OEM,ODM service is welcomed.
Quality warranty
We have our own factory, engi neer team and a set of equipment&n bsp;for the product test, Beside,we can control the production (also mean we can control the lead -time) quality of the product very well. We have passed ISO9001:2008 Quality Management System and CCC, CE.
Products Description
63A
400A
1250A

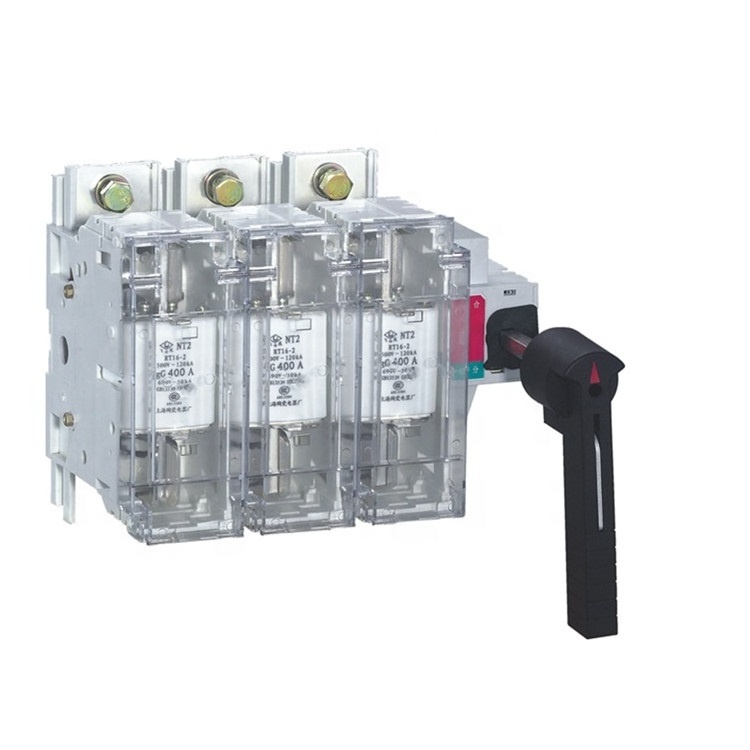

YUYE Hot Selling 400A 3P 4P Load Isolator Switch DC Disconnected Switch 1500V with CE IEC Certificate
YGLR-63~3200A/ I TYPE Fuse Group of Isolation Switch
Fuse group of isolation switch can makes sure making and br eaking cir cuit with load, and it has r eliable
over current or short-circuit breaking protection.
Obviously saw the breaking state.
With strong hot and humidity proofing.
Because the switch owns the merits of graceful appearance, novel, simple, small volume and complete
function, it is best selection among the same products
Structure and Operation Mode
Direct operation on front face: the handle is installed on the front face of switch.
Direct operation on side face: the handle is installed on the right of switch(it is noted separately if the handle is installed on theieft of switch)
Front face operation outside of cabinet: the handle is installed on the front face outside of the distribution cabinet door.
Side face operation outside of cabinet: the handle is installed on the right of distribution cabinet outside(it is noted separately if the handle is installed on the left).
Application and using environment
YGLR Series fuse group of isolation switch(hereinafter short for switch) is used in AC 50HZ, rated voltage below 660V, DC rated voltage below 440v, rated current 63-630A, working in distribution system for infrequent, connecting and breaking circuit with, over-current or short-circuit protection and isolating circuit used.
Switch working condition
Altitude height below 2000m.
Ambient temperature doesn't exceed +40℃,not below -5℃.
Ambient relative humidity doesn't exceed 95%
Non- explosion danger of medium, and the medium is not enough to corrode metal and
destruction of gas and dust.
No significant shaken and shock vibration place.
No rain and snow erosion environment.
Note:If use in ambient temperature at -5~45℃ expected,should inform the manufacturer
NOTE: For more detail information you wanan know, pls feel free contact with me. Thanks!
Structure and characteristics
Fuse group of isolation switch can makes sure making and br eaking cir cuit with load, and it has r eliable
over current or short-circuit breaking protection.
Obviously saw the breaking state.
With strong hot and humidity proofing.
Because the switch owns the merits of graceful appearance, novel, simple, small volume and complete
function, it is best selection among the same products
Product Paramenters
Main Technology Paremeter
YGL-63~3200A/ I TYPE Fuse Group of Isolation Switch
|
Conventional rank
|
63A
|
100A
|
100A
|
3200M
|
160A
|
4000
|
250A
|
|
|||||||
|
Rated current In(A)
|
40
|
63
|
80
|
100
|
125
|
160
|
200
|
250
|
|||||||
|
Dielectric strength (V)
|
5000
|
|
|
|
|
|
|
|
|||||||
|
Rated surge-resistant voltage Uimp KV
|
6
|
|
|
|
|
|
|
|
|||||||
|
Rated breaking capability Icn (A Rms) AC230 380V
|
320
|
504
|
640
|
800
|
1000
|
1000
|
1600
|
1600
|
|||||||
|
Rated making capability Icn (A Rms) AC230 380V
|
400
|
630
|
800
|
1000
|
1250
|
1600
|
2000
|
2500
|
|||||||
|
Rated short-current making capability Icm(kA peak value)
|
2.84
|
|
|
|
13.6
|
|
17
|
|
|||||||
|
Mechanical durability 380V
|
1700
|
|
|
|
1400
|
|
|
|
|||||||
|
Electrical curability 380V
|
300
|
|
|
|
200
|
|
|
|
|||||||
|
Operation moment (Nm)
|
1.2
|
|
|
|
6.5
|
|
10
|
|
|||||||
|
Weight(kg)
|
0.37-0.41
|
|
|
|
1.3-1.5
|
|
2.2-2.6
|
|
|||||||
